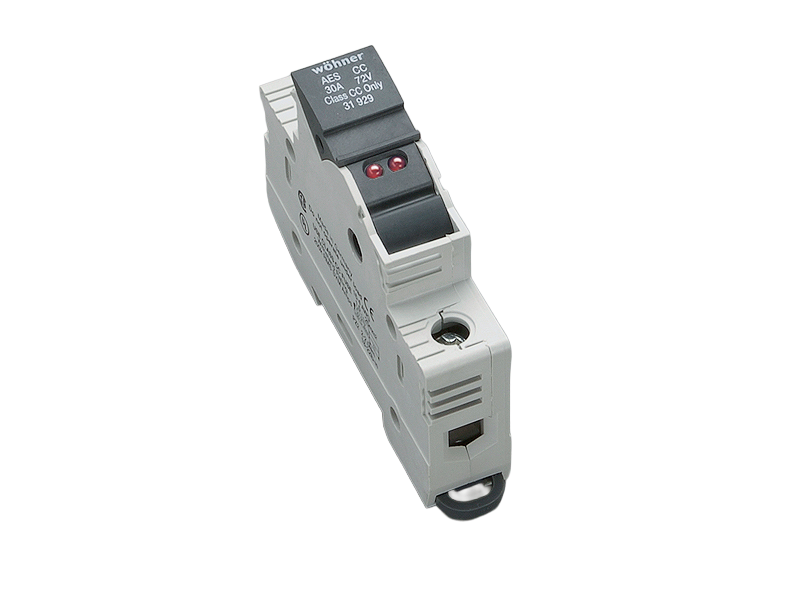

The picture may show a similar product.
订货号 31929000
AMBUS®Panel
熔断器支持件
Class CC / 1P
30 A / 12 - 72 V
indication of a released fuse link
for mounting rail
系统
Panel
产品优势
连接夹开口较大, 也适用于2个相同的导线(并排)
放置标志牌
带熔断器故障指示器
在使用直流电时, 任意极性
| 产品组 | 17 |
分组 |
07 |
| 包装件数 | 12 |
| EAN | 4021267319298 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
标准
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J
UL 4248-1
UL 4248-4
认证许可
UL , CCC
型号: AESCC-72V
UL 文件: E230163, UL 类别 (适用美国) : IZLT https://www.ul.com
UL 文件: E230163, UL 类别 (适用加拿大) : IZLT7 https://www.ul.com
CCC认证: 21107299296
| for fuse links size: | Class CC |
| fuse links acc. to standard: | UL 248-4 |
| 所使用熔断器的允许损耗功率: | 4 W |
| Details IEC | |
| 标准 | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system J |
| Electrical data IEC | |
| min. operating voltage AC: | 12 V |
| min. operating voltage DC: | 12 V |
功率输出:
The power dissipation at a typical load of 80 % results to 0.2 W.
(The power dissipation at full load would be 0.3 W.)
| LED 工作电压范围: : 12 - 72 V AC / DC |
| Details UL | |
| 标准 | |
|
UL 4248-1
UL 4248-4 |
| suitable for field-installed conductors |
| Electrical data UL | |
| 额定电流 (UL): | 30 A |
| 额定电压 (UL) AC: | 72 V |
| min. operating voltage AC: | 12 V |
| rated frequency (UL): | 50 / 60 Hz |
| 额定电压 (UL) DC: | 72 V |
| min. operating voltage DC: | 12 V |
| SCCR: | 200 kA |
| 机械数值 | |
| 宽 x 高 x 厚: | 18 x 81 x 58 |
| 重量: | 6.2 kg/100 |
| 极数: | 1线 |
| Mounting: | for mounting rail |
| 防护等级: | IP20 |
| 正面防护等级: | IP20 |
| 连接端 | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 11 mm |
| min. cross-section: | 0.75 mm² |
| 最大横截面积: | 25 mm² |
| Md min.: | 2.0 Nm |
| Md max.: | 2.5 Nm |
| Not suitable for aluminium cables ! | |
|
用于符合 IEC / EN标准的使用 : |
|
| Not suitable for aluminium cables ! | |
|
说明 |
只在熔断器座带电压时, 熔断器熔断时LED显示。 |
| 所使用熔断器的允许损耗功率: | 4 W |
