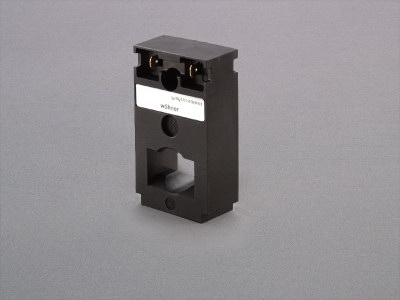

The picture may show a similar product.
订货号 33173000
电流互感器 300 A / 5 A
5 VA / 精度等级 1
尺寸 1 - 3
不再供货
| 产品组 | 23 |
分组 |
05 |
| 包装件数 | 3 |
| EAN | 4021267331733 |
| ECLASS 6.1 | 27210902 |
| ECLASS 7.1 | 27210902 |
| ETIM 4.0 | EC002048 |
| ETIM 5.0 | EC002048 |
标准
IEC 61869-1:2007
IEC 61869-2:2012
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
|
IEC 61869-1:2007 IEC 61869-2:2012 |
| Electrical data IEC | |
| 端部供电（IEC）: | 300 A |
| 一次额定电流 Ipr: | 300 A |
| 二次额定电流: | 5 A |
| 二次额定视在功率: | 5 VA |
| accuracy class (current): | 1 |
| 最大工作电压 Um: | 720 V |
| 发热短时电流 lth: | 18 kA |
功率输出:
The power dissipation at a typical load of 80 % results to 3.2 W.
(The power dissipation at full load would be 5.0 W.)
| Primary rated current strength 300 A, secondary rated current strength, 5A, maximum operating voltage Um 0.72kV, frequency 50-60Hz, overcurrent limiting factor FS5 thermal nominal short-time current Ith = 60 x In accuracy class 1 rated apparent power 5VA insulation class E |
| 机械数值 | |
| 宽 x 高 x 厚: | 49 x 27 x 70 |
| 重量: | 14.3 kg/100 |
Type of fastening:
can be installed direct into Secur LeanStreamer size 1-3,
can be installed into Secur LeanStreamer size 00 with adapter and
fastening clip
