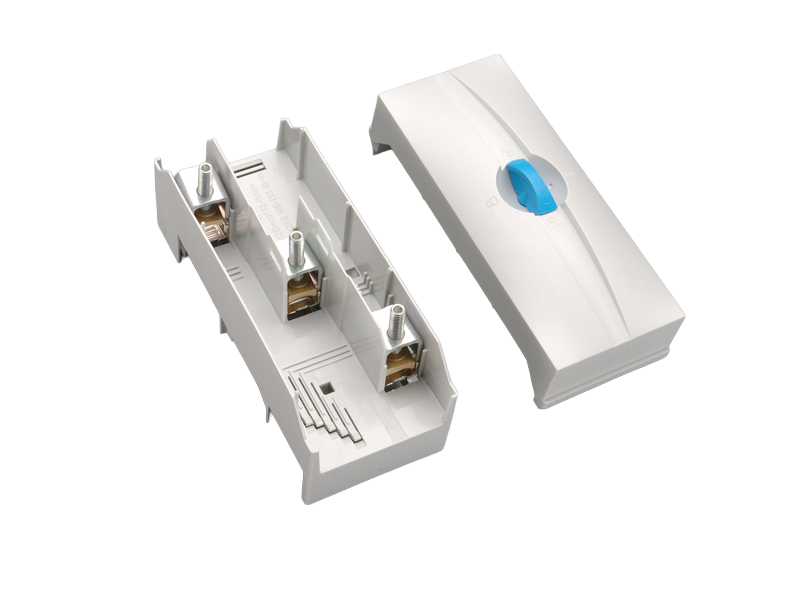

订货号 01243000
CRITO®60Classic
接线板，3 极
10 - 120 mm², AWG 6 - 250 MCM, lam. Cu. 9 - 15.5 x 2,4 - 10
适用母线 12, 15, 20, 25, 30 x 5, 10 和异型母线
系统
60Classic
产品优势
连接未切割的导线时, 可移除端子
| 产品组 | 07 |
分组 |
45 |
| 包装件数 | 1 |
| EAN | 4021267012434 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
标准
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
认证许可
CSA , UL , DNV GL
for UL feeder circuits >250V
型号: 243-L
UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com
CSA 文件: 110285, CSA 等级: 3211-37 https://directories.csa-international.org
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| 额定电流（IEC）: | 250 A |
| 额定电压（IEC）AC: | 690 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
| 额定冲击耐受电流 Ipk : | 56.3 kA |
| rated short-time withstand current Icw (0.1 s) max.: | 22 kA |
功率输出:
The power dissipation at a typical load of 80 % results to 3.8 W.
(The power dissipation at full load would be 6.0 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最大电压 IEC AC: | 1000 V |
| 最大电压 IEC DC: | 1500 V |
| 最大电流负载能力 (IEC): | 440 A |
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| 额定电流 (UL): | 250 A |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| for wires UL: | Cu 75°C |
| SCCR unprotected max.: | 10 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| 短路电流额定值: |
100 kA with JDDZ fuse Class J 500 A / 600 V AC
35 kA with any DIVQ/7 circuit breaker 600 A / 600 V AC 50 kA with any DIVQ/7 circuit breaker 600 A / 480 V AC 65 kA with any DIVQ/7 circuit breaker 400 A / 480 V AC 100 kA with JDDZ fuse Class J 600 A / 480 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 81 x 200 x 84 |
| 重量: | 53.5 kg/100 |
| 极数: | 3线 |
| 适用母线: | 12, 15, 20, 25, 30 x 5, 10 和异型母线 |
| 连接端 | |
| cage clamp connection | |
| wire stripping: | 25 mm |
| min. cross-section: | 10 mm² |
| 最大横截面积: | 150 mm² |
| re: | 10 - 10 mm² |
| rm: | 16 - 150 mm² |
| f: | 16 - 120 mm² |
| f + AE: | 10 - 120 mm² |
| (f + AE may not fit with max. cross-section) | |
| 开口空间: | 15 x 15 |
| Md min.: | 12.0 Nm |
| Md max.: | 12.5 Nm |
| Not suitable for aluminium cables ! | |
| 最小横截面积: | AWG 6 |
| max. cross-section UL: | MCM 250 |
| torque (UL): | 106 lb-in |
| for wires UL: | Cu 75°C |
| Not suitable for aluminium cables ! | |
| 产品的绝缘性能与安装条件有关。 | |
| for UL feeder circuits >250V | |
| considering the permitted temperature rise at the concrete installation conditions a capacity of 400 A is accepted by UL |
