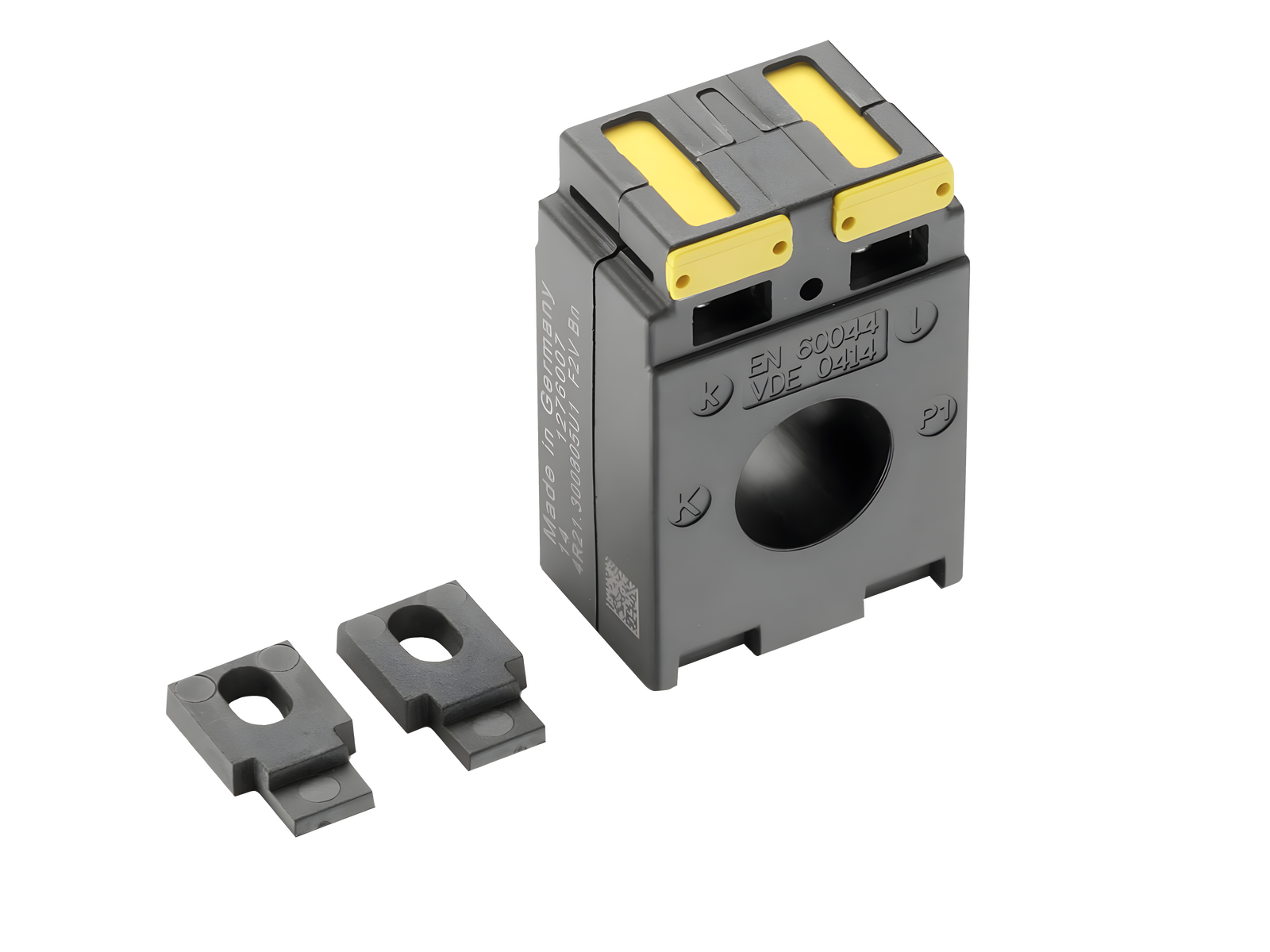

333 mV 电流互感器，150 A

尺码:

CT3

Details IEC

标准

IEC 61869-1:2007 IEC 61869-2:2012

Electrical data IEC
一次额定电流 Ipr:	150 A
sec. rated voltage:	333 mV
burden:	2 kOhm
accuracy class (current):	1
最大工作电压 Um:	720 V
发热短时电流 lth:	9 kA
class of insulation:	E

over-current limitation factor:

FS5

机械数值
宽 x 高 x 厚:	44 x 30 x 99
重量:	14.0 kg/100

CT can be integrated in the device:	ja
CT can be integrated in the CT module:	nein

sealable:

nein

连接端
double terminal
min. cross-section:	2.5 mm²
最大横截面积:	4 mm²
Not suitable for aluminium cables !

原材料性能
halogen-free:	Yes

Not suitable for aluminium cables !
