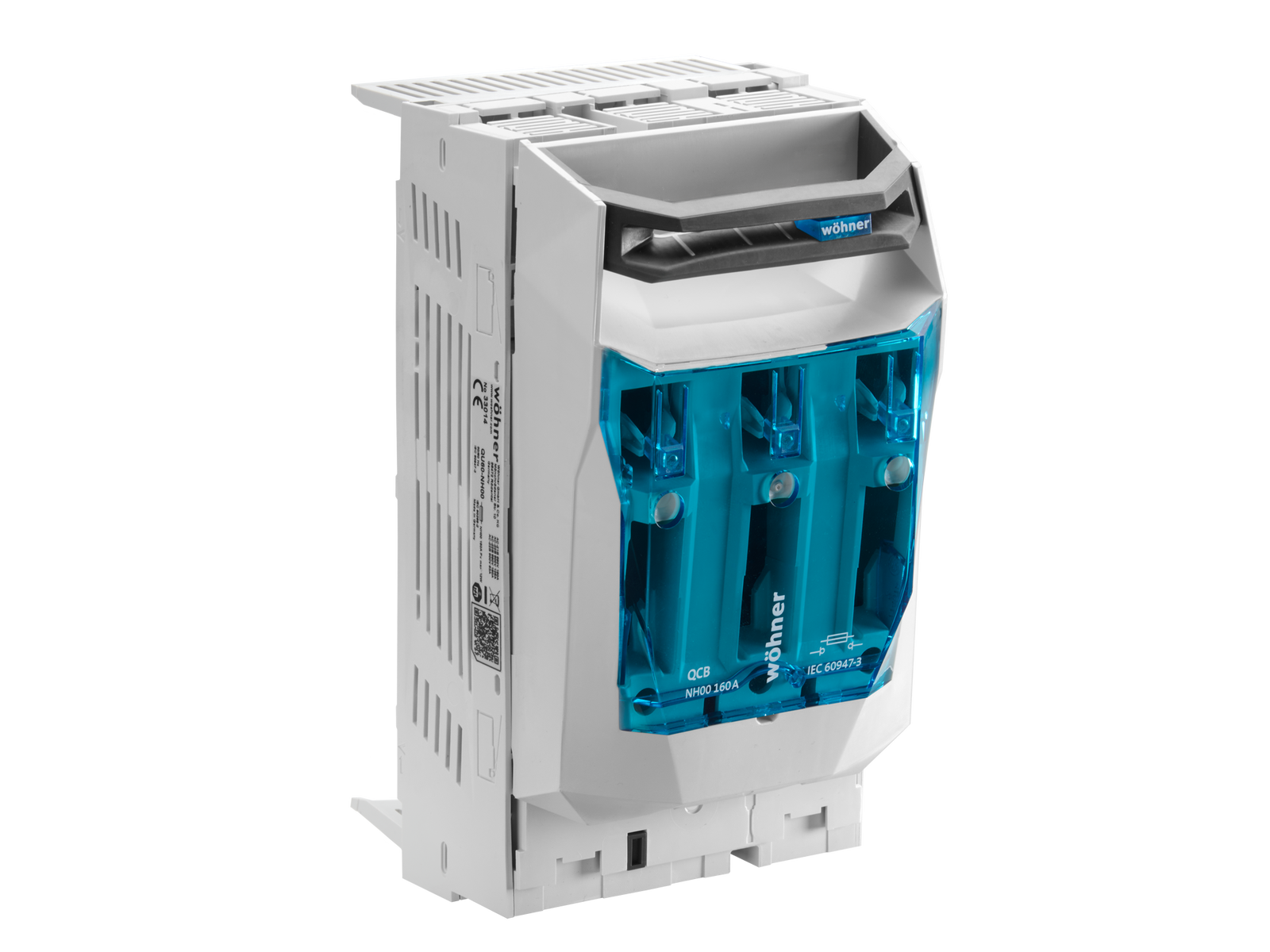

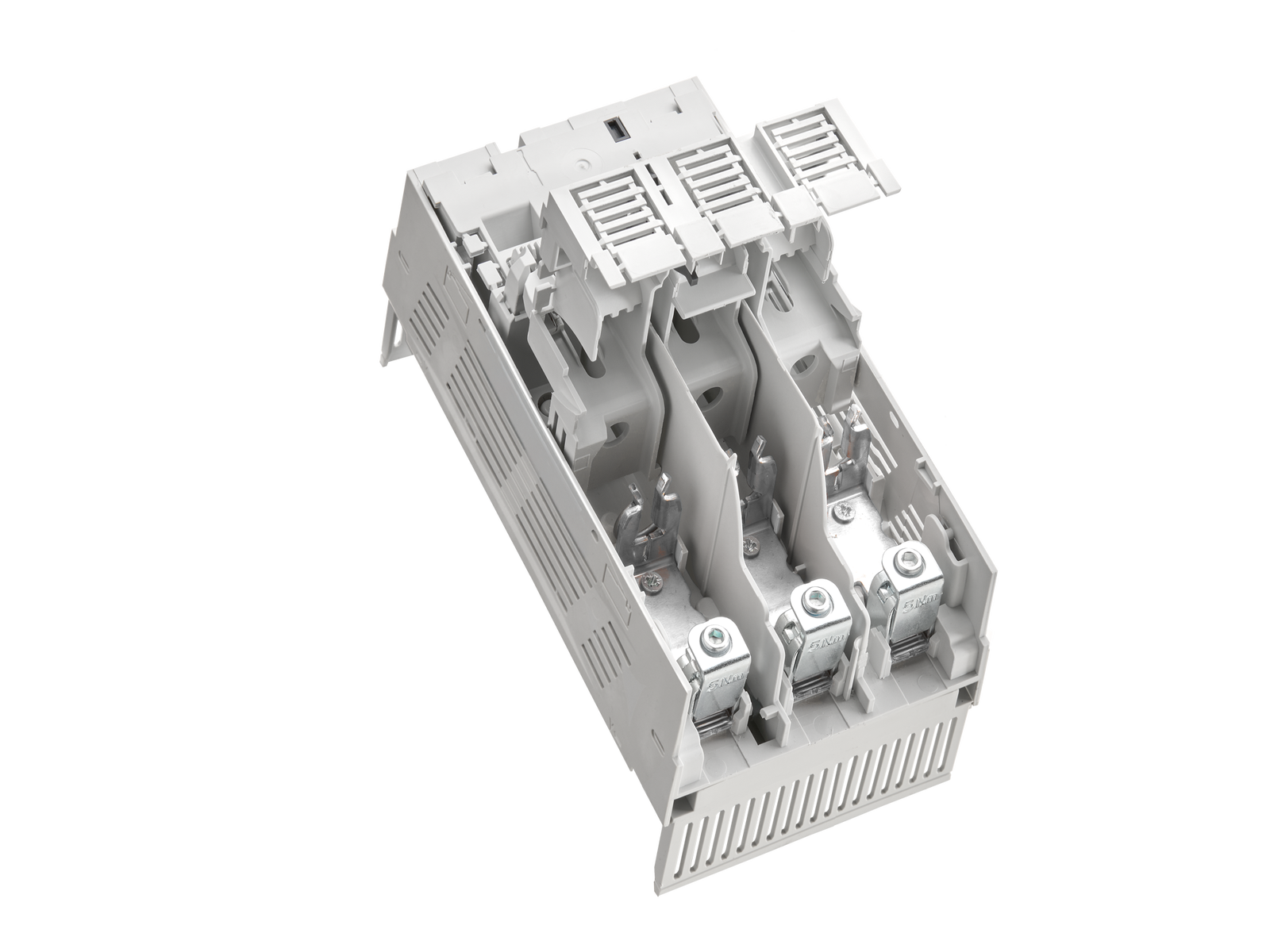

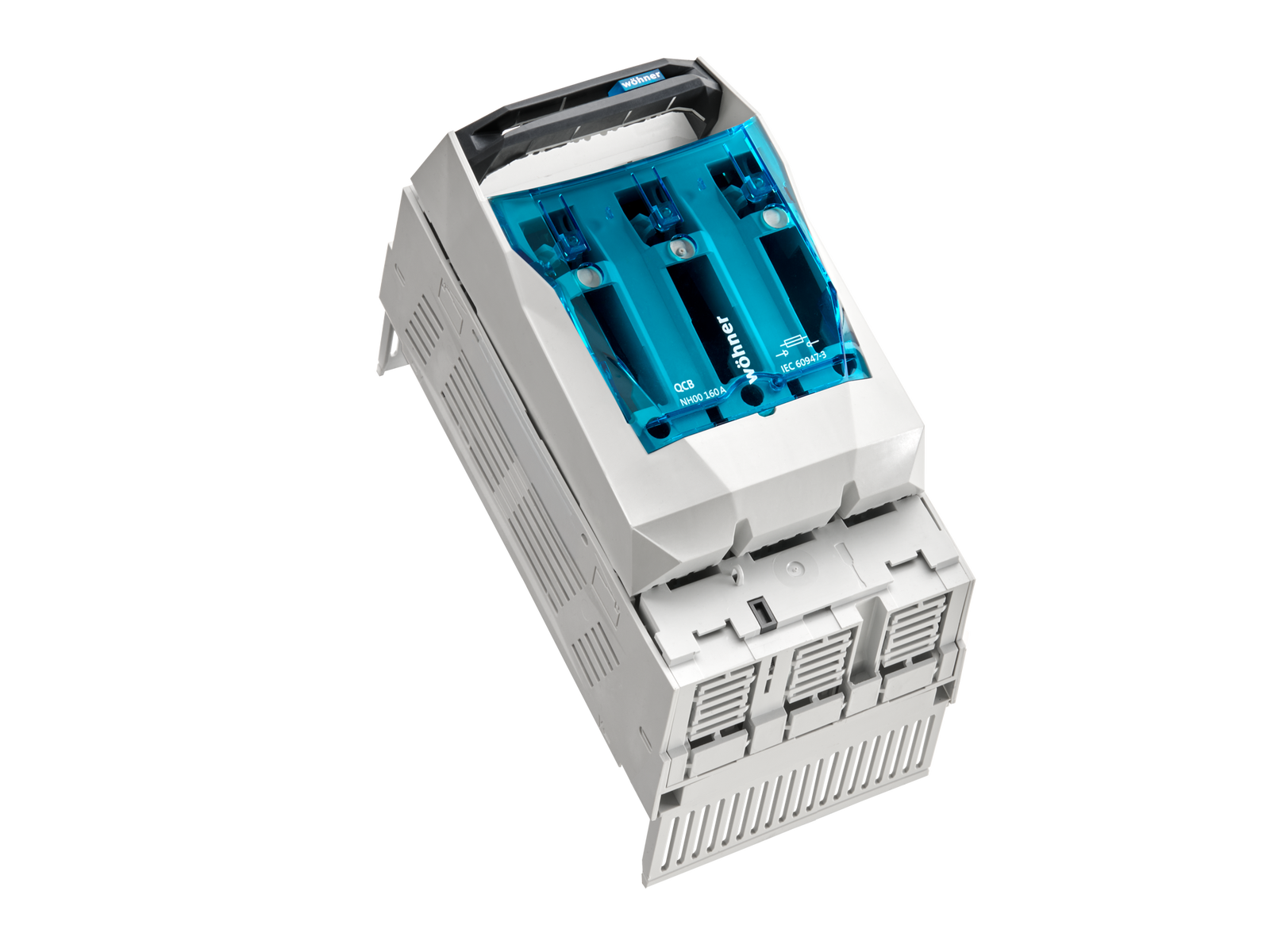

The picture may show a similar product.
订货号 33017000A
QUADRON®60Classic
NH 熔断器式隔离开关，尺寸 00，160 A
螺钉 M8
仅上端或下端连接至系统
适用母线 12, 15, 20, 25, 30 x 5, 10 和异型母线
采用 CrossLink®Technology 技术
短期内将供货
系统
60Classic
产品优势
Quick and safe conversion of the cable outlet side for top and bottom connection
Simple and safe snapping installation and contacting without tools
It is not necessary to remove the protection cover to connect the cables
| 产品组 | 09 |
分组 |
24 |
| 包装件数 | 1 |
| EAN | 4021267330170 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
标准
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| 所使用熔断器的允许损耗功率: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| 标准 | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| 端部供电（IEC）: | 160 A |
| 额定电压（IEC）AC: | 690 V |
| 额定电压 （IEC） DC: | 440 V |
| rated isolation voltage Ui AC: | 1000 V |
| 额定绝缘电压 Ui DC: | 500 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
| 使用等级 AC (IEC 60947-3): | AC-21B (690 V) AC-22B (500 V) AC-23B (400 V) AC-20B (1000V) ) 在污染等级2时 |
| 带熔断器时的条件额定短路电流: | 100 kA / 690 V |
| 120 kA / 500 V (160 A) | |
| 带熔断器测定的工作等级: | gG |
功率输出:
The power dissipation at a typical load of 80 % results to 11.3 W.
(The power dissipation at full load would be 17.7 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 符合 IEC 60947-3 的熔断器组合电器，只有在作为没有分断能力的熔断器式隔离器时、在不超过额定绝缘电压使用并进行相应的标识时，才允许超过额定工作电压运行。 |
| 机械数值 | |
| 宽 x 高 x 厚: | 106 x 200 x 110 |
| 重量: | 77.7 kg/100 |
| 极数: | 3 极 |
| 适用母线: | 12, 15, 20, 25, 30 x 5, 10 和异型母线 |
| 正面防护等级: | IP30 |
| 连接端 | |
| screw connection | |
| M8 | |
| screw drive: | SW13 |
| min. cross-section: | 1.5 mm² |
| 最大横截面积: | 95 mm² |
| re: | 1.5 - 95 mm² |
| rm: | 1.5 - 95 mm² |
| rm + AE: | 1,5 - 70 mm² |
| f: | 1.5 - 70 mm² |
| f + AE: | 1.5 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 8.0 Nm |
| Md max.: | 10.0 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| required spacing top: | 50 mm |
| 符合 IEC 60947-3 的熔断器组合电器，只有在作为没有分断能力的熔断器式隔离器时、在不超过额定绝缘电压使用并进行相应的标识时，才允许超过额定工作电压运行。 | |
| 所使用熔断器的允许损耗功率: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
