订货号 01592000A

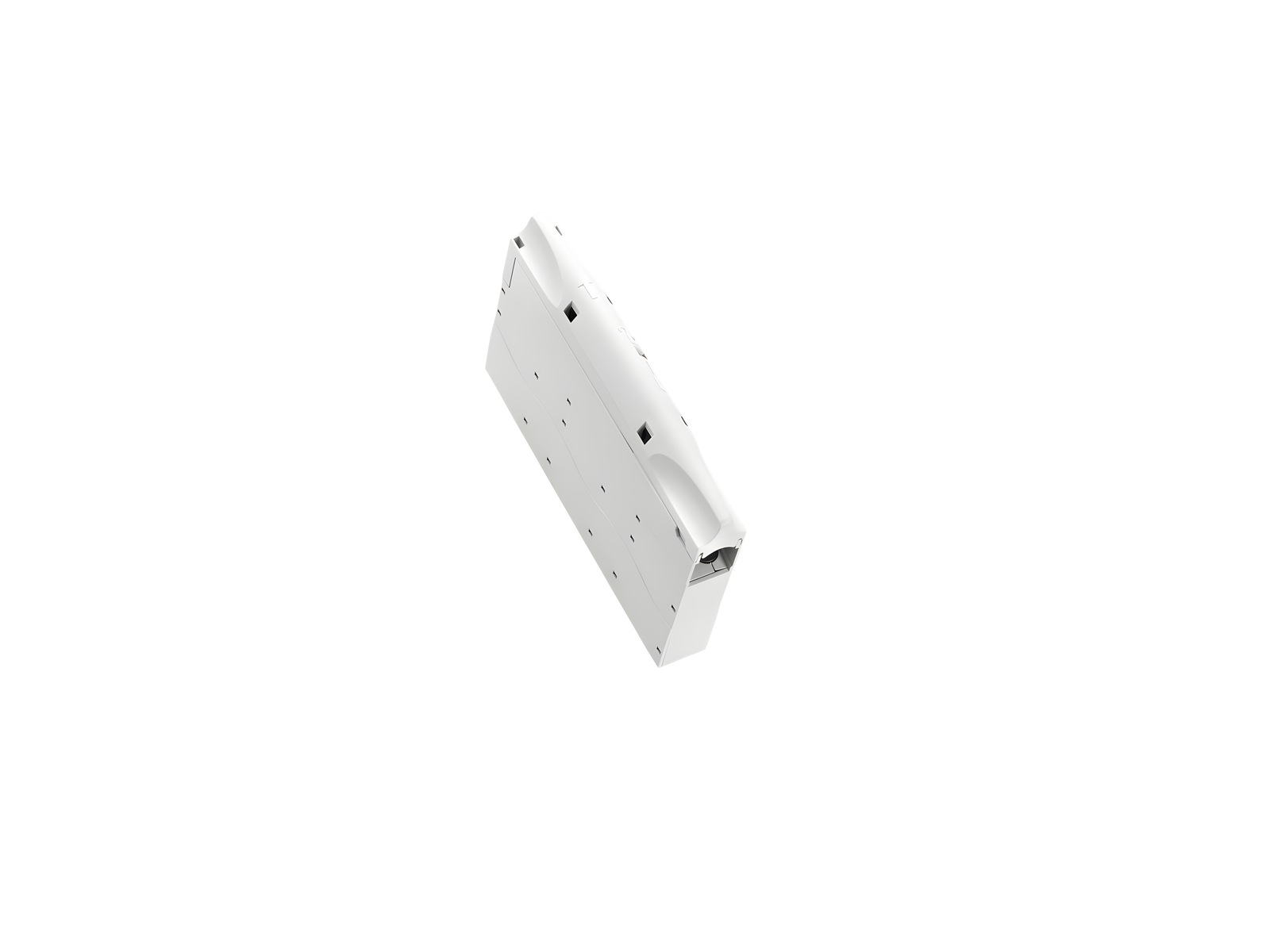

CRITO®CrossBoard
连接模块
带集成弹簧连接端子 1.5 - 16 mm², AWG 14 - 6
3 极
系统
CrossBoard® 125A / 250A, CrossBoard® 800 A
| 产品组 | 07 |
分组 |
40 |
| 包装件数 | 1 |
| EAN | 4021267015923 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
标准
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
认证许可
IEC (CB) , UL
for UL feeder circuits >250V
型号: CR22-A
UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| 额定电流（IEC）: | 63 A |
| 额定电压（IEC）AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| 额定冲击耐受电流 Ipk : | 10 kA |
功率输出:
The power dissipation at a typical load of 80 % results to 2.9 W.
(The power dissipation at full load would be 4.6 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最大电压 IEC AC: | 800 V |
| 最大电压 IEC DC: | 800 V |
| 最大电流负载能力 (IEC): | 80 A |
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| 额定电流 (UL): | 48 A |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 6 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 50 kA |
| with JDDZ fuse Class J 60 A / 600 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 22.5 x 160 x 115 |
| 重量: | 21.5 kg/100 |
| 极数: | 3线 |
| 正面防护等级: | IP20 |
| 连接端 | |
| spring pulley connection | |
| screw drive: | 0,6x4 |
| wire stripping: | 18 mm |
| min. cross-section: | 1.5 mm² |
| 最大横截面积: | 16 mm² |
| 最小横截面积: | AWG 14 |
| max. cross-section UL: | AWG 6 |
|
For leads per IEC : |
|
| 产品的绝缘性能与安装条件有关。 | |
| for UL feeder circuits >250V |
