母线转接器 630 A

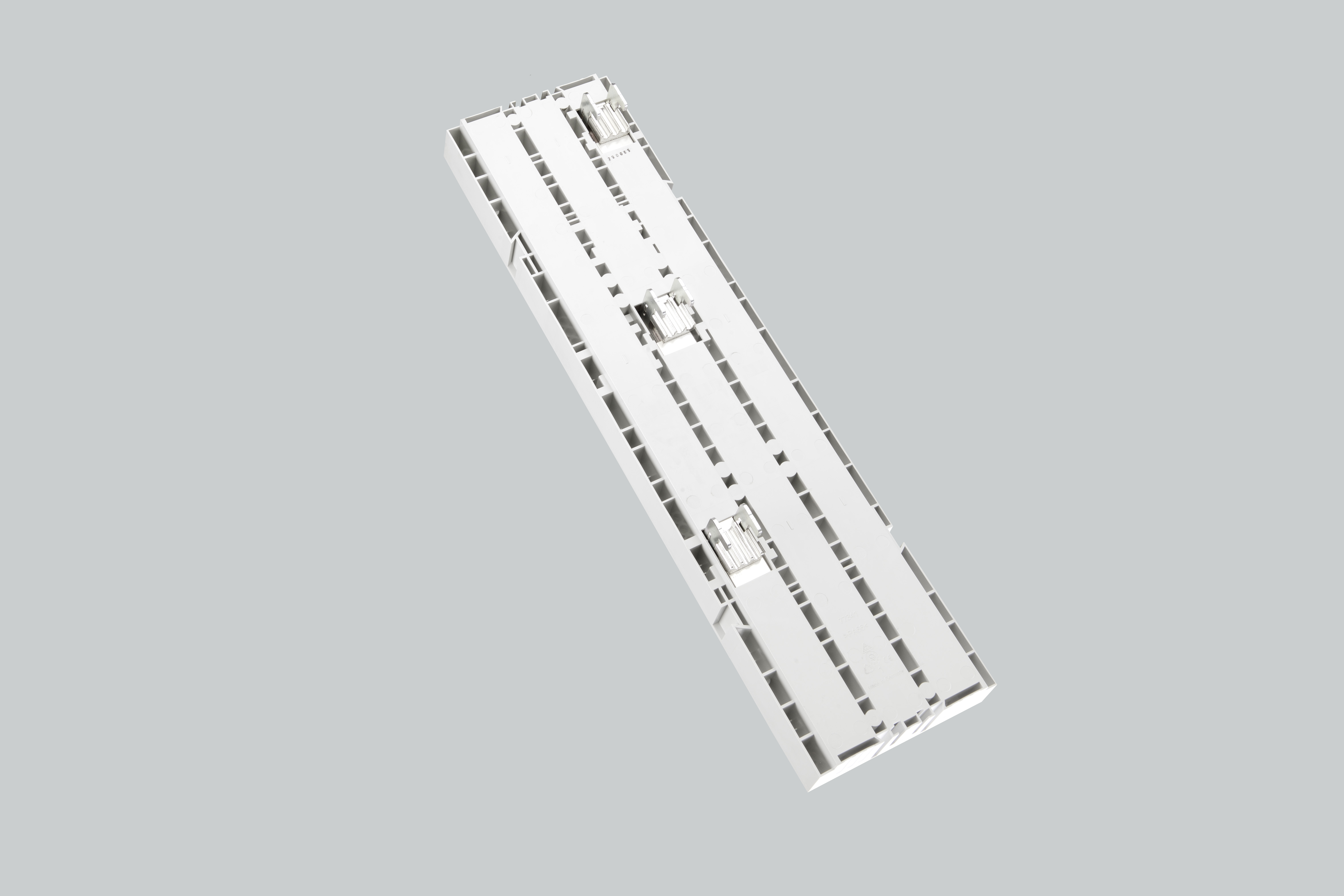

The picture may show a similar product.

说明

订货号 32745 000A

EQUES 185Power

母线转接器 630 A

通用版本，最大 630A, 相间距 43 - 46 mm

下端连接，CrossLink® 挂钩连接

适用母线 30, 40, 60, 80, 100, 120 x 10

系统

185Power

产品优势

Device can be mounted covering the busbar support (in systems with and without CrossLink® touch-safe protection cover)

产品组 05

分组

 48
包装件数 1
EAN 4021267327453
ECLASS 14.0 27370304
ETIM 5.0 EC001531
ETIM 5.0 EC001531
ETIM 10.0 EC001531

认证

标准

IEC 61439-1:2020

UL 508

认证许可

UL

for UL feeder circuits >250V

型号: EQ185-A630-C

EAC Type: EQ

UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com

UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com

CCC 认证: 无需强制认证

产品信息

Details IEC
标准
IEC 61439-1:2020
Electrical data IEC
端部供电（IEC）: 630 A
额定电压（IEC）AC: 800 V
rated isolation voltage Ui AC: 1000 V
额定冲击耐受电压 Uimp: 12 kV
额定冲击耐受电流 Ipk : 63 kA
rated short-time withstand current Icw (1.0 s) max.: 30 kA

the following required reductions have been determined by tests:
with MCCB ABB Tmax T5, XT5
with MCCB Allen-Bradley 140G-K
with MCCB Eaton NZM3
with MCCB Schneider Electric NSX630
with MCCB Schrack MC3
with MCCB Siemens 3VA14, 3VM64
with MCCB Siemens 3VA23, 3VA24
with MCCB Siemens 3VA64

Power dissipation of the adapter:
at 500A => 58W
at 530A => 65W
at 565A => 73W
Details UL
标准
UL 508
for UL feeder circuits >250V
Electrical data UL
额定电流 (UL): 630 A
额定电压 (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
额定电压 (UL) DC: 1000 V
SCCR unprotected max.: 22 kA
3 cycles (without OPD) @ 600 V AC
短路电流额定值: 65 kA with any DIVQ/7 circuit breaker 600 A / 600 V AC
机械数值
宽 x 高 x 厚: 150 x 585 x 55
重量: 700.0 kg/100
极数: 3 极
适用母线: 30, 40, 60, 80, 100, 120 x 10
CT can be integrated in the device: ja
原材料性能
halogen-free: Yes

Application notes

ready for current transformer

断路器承载转接器的短路保护

for UL feeder circuits >250V

链接

Article master data, overviews and prices

最新的金属附加值

3D and 2D data in a wide range of formats

CAD Daten WSCAD

下载

| 通用技术说明

| 安装说明

| CAD Modell 3D PDF

| CAD model 3D STP

| CAD Symbol 2D DXF

| Data packet EPlan (*.edz)

| 比例图

| EU 符合性声明

| 产品描述（PDF)

| 设计验证用产品数据，根据 IEC / EN 61439-1

| Text for specification - GAEB90 (in German) (*.d81)

附件

accessories for mounting

measuring transformers 333mV

current transformers class 1

current transformers class 0.5

current transformers class 0.5s
