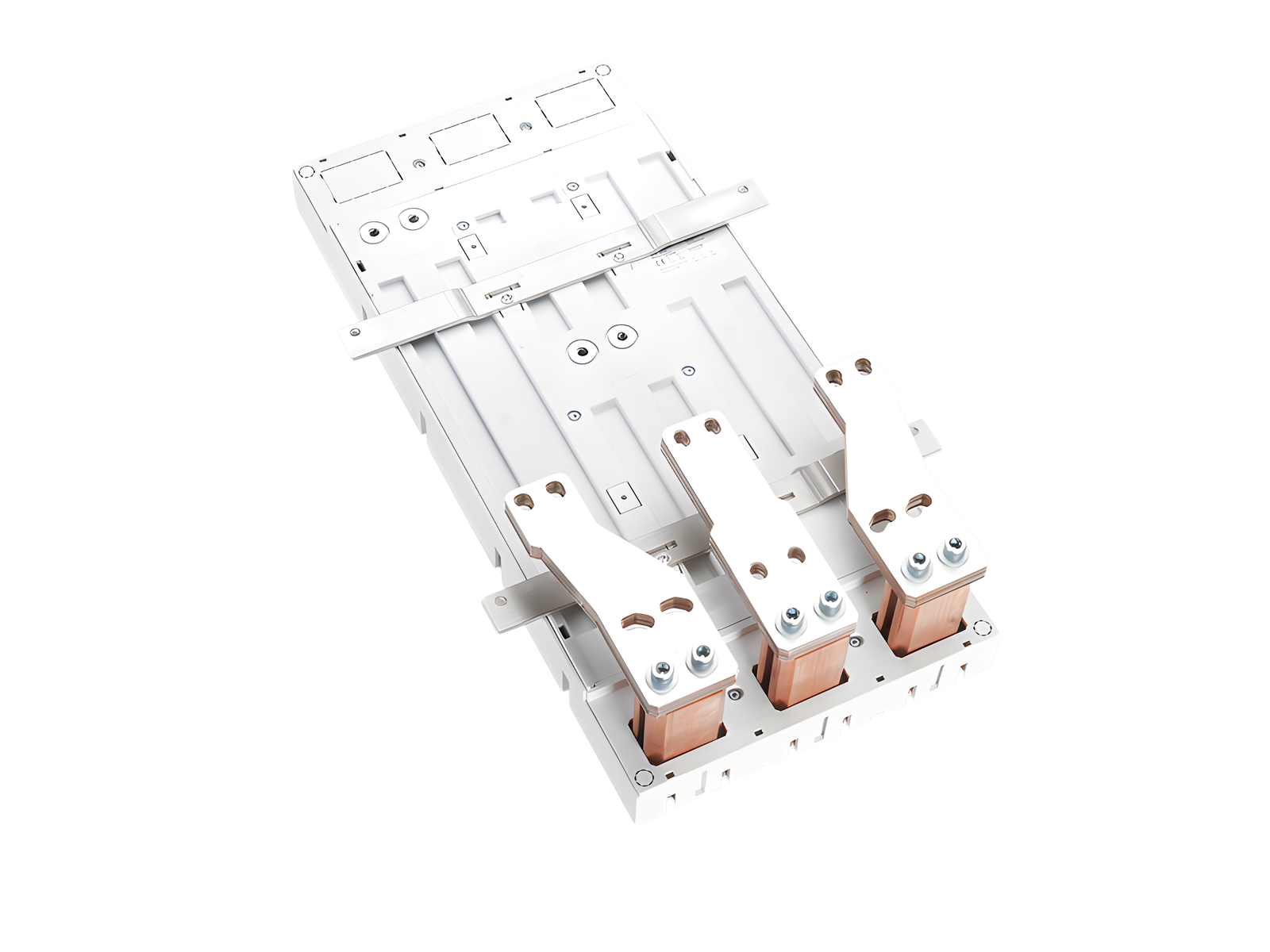

The picture may show a similar product.
订货号 32764000A
EQUES®185Power
母线转接器 1500A
300 x 675, 下端连接，端子连接
适用 Socomec Sirco 1250 A (Socomec-Nr. 26003U21), Sirco 1600 A (Socomec-Nr. 26003U61)
适用母线 30, 40, 60, 80, 100, 120 x 10
系统
185Power
| 产品组 | 05 |
分组 |
48 |
| 包装件数 | 1 |
| EAN | 4021267327644 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
标准
IEC 61439-1:2020
UL 508
认证许可
UL
for UL feeder circuits >250V
型号: EQ185-A1600-C
UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 额定电流（IEC）: | 1500 A |
| 额定电压（IEC）AC: | 690 V |
| 额定电压 （IEC） DC: | 800 V |
| rated isolation voltage Ui AC: | 1000 V |
| 额定绝缘电压 Ui DC: | 1000 V |
| 额定冲击耐受电压 Uimp: | 12 kV |
| 额定冲击耐受电流 Ipk : | 106 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 50 kA |
功率输出:
The power dissipation at a typical load of 80 % results to 380.2 W.
(The power dissipation at full load would be 594.0 W.)
| with Socomec Sirco 1250 A (Socomec no.26003U21) and 1600 A (Socomec no.26003U61) usable up to 1550 A maximum 300 switching cycles |
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电流 (UL): | 1200 A |
| 额定电压 (UL) AC: | 1000 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 50 kA |
| 3 cycles (without OPD) @ 1000 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 300 x 652 x 76 |
| 重量: | 3350.0 kg/100 |
| 极数: | 3线 |
| 适用母线: | 30, 40, 60, 80, 100, 120 x 10 |
| CT can be integrated in the device: | ja |
| 短路稳定性: | 断路器承载转接器的短路保护 |
| for UL feeder circuits >250V | |
