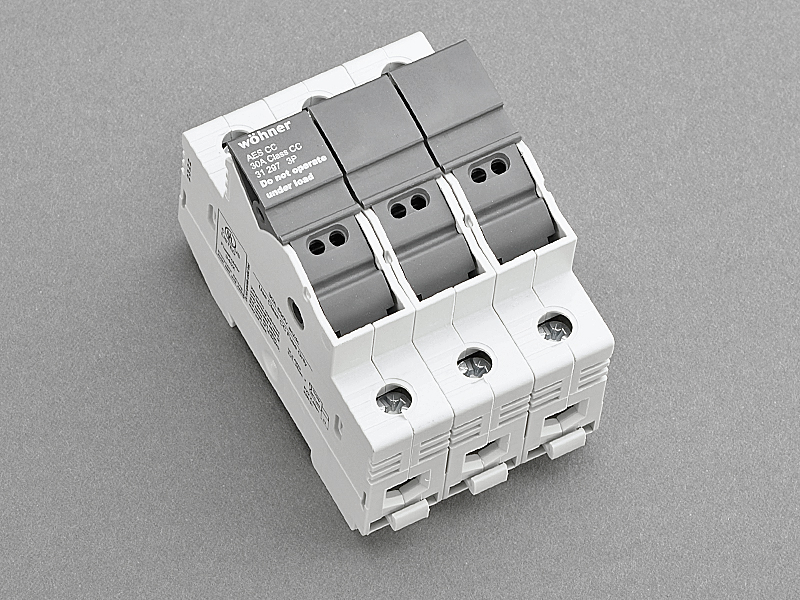

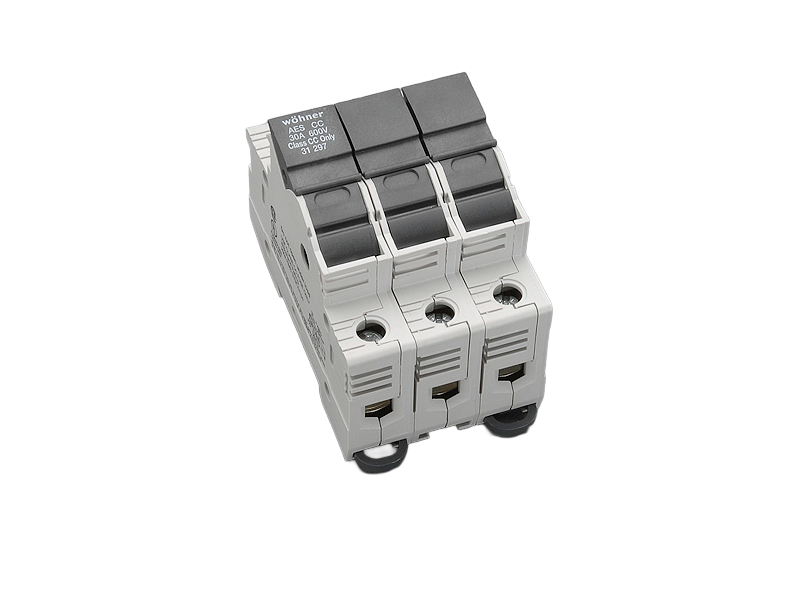

订货号 31297 000
AMBUS Panel
Class CC 熔断器支持件
Class CC / 3P
30 A / 600 V
for mounting rail
系统
Panel
产品优势
连接夹开口较大, 也适用于2个相同的导线(并排)
放置标志牌
| 产品组 | 17 |
分组 |
07 |
| 包装件数 | 4 |
| EAN | 4021267312978 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002705 |
| ETIM 5.0 | EC002705 |
| ETIM 10.0 | EC002705 |
标准
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J
UL 4248-1
UL 4248-4
认证许可
CSA , UL , CCC
for UL feeder circuits >250V
型号: AESCC
EAC Type: AES
UL 文件: E230163, UL 类别 (适用美国) : IZLT https://www.ul.com
UL 文件: E230163, UL 类别 (适用加拿大) : IZLT7 https://www.ul.com
CSA 文件: 110285, CSA 等级: 6225-01 https://directories.csa-international.org
CCC认证: 21107299296
| for fuse links size: | Class CC |
| fuse links acc. to standard: | UL 248-4 |
| 所使用熔断器的允许损耗功率: | 4 W |
| Details IEC | |
| 标准 | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system J |
电气数值
功率输出:
The power dissipation at a typical load of 80 % results to 0.6 W.
(The power dissipation at full load would be 0.9 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最小允许工作温度 | -40°C |
| Details UL | |
| 标准 | |
|
UL 4248-1
UL 4248-4 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| 额定电流 (UL): | 30 A |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| 额定电压 (UL) DC: | 600 V |
| for wires UL: | Cu 60°C |
| SCCR: | 200 kA |
| 机械数值 | |
| 宽 x 高 x 厚: | 54 x 81 x 58 |
| 重量: | 17.0 kg/100 |
| 极数: | 3 极 |
| Mounting: | for mounting rail |
| 防护等级: | IP20 |
| 正面防护等级: | IP20 |
| 连接端 | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 11 mm |
| min. cross-section: | 0.75 mm² |
| 最大横截面积: | 25 mm² |
| Md min.: | 2.0 Nm |
| Md max.: | 2.5 Nm |
| Not suitable for aluminium cables ! | |
| 最小横截面积: | AWG 18 |
| max. cross-section UL: | AWG 4 |
| torque (UL): | 18 - 22 / 22 - 26 (AWG 6 - AWG 4) lb-in |
| for wires UL: | Cu 60°C |
|
connection of 2 wires (of same cross-section)
|
|
| 原材料性能 | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| 所使用熔断器的允许损耗功率: | 4 W |
| for UL feeder circuits >250V | |
