订货号 31932 000

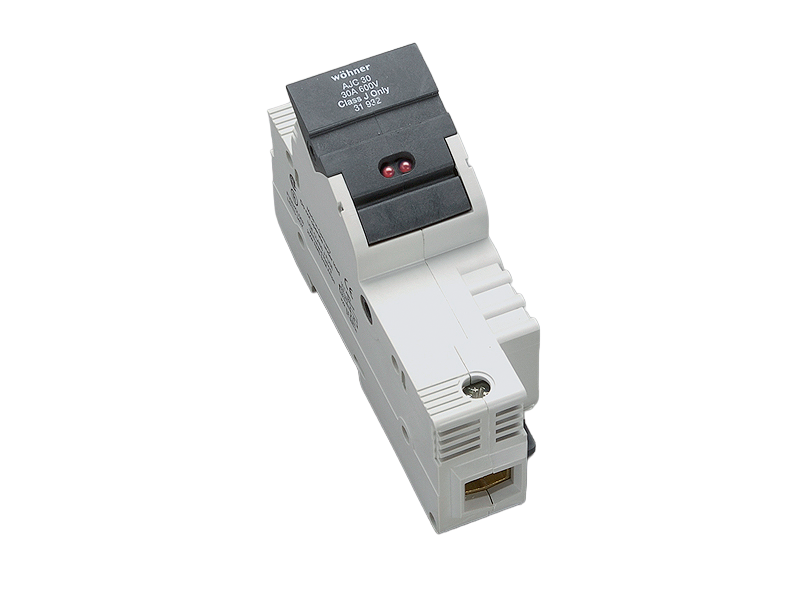

AMBUS Panel
Class J 熔断器支持件，带 LED
Class J 级 / 单极, 框端子 50 mm²
30 A / 600 V (21x57)
for mounting rail
系统
Panel
产品优势
连接夹开口较大, 也适用于2个相同的导线(并排)
放置标志牌
带熔断器故障指示器
在使用直流电时, 任意极性
| 产品组 | 16 |
分组 |
03 |
| 包装件数 | 6 |
| EAN | 4021267319328 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002705 |
| ETIM 5.0 | EC002705 |
| ETIM 10.0 | EC002705 |
标准
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
认证许可
CSA , UL
for UL feeder circuits >250V
型号: AJC30
EAC Type: AJC
UL 文件: E230163, UL 类别 (适用美国) : IZLT https://www.ul.com
UL 文件: E230163, UL 类别 (适用加拿大) : IZLT7 https://www.ul.com
CSA 文件: 110285, CSA 等级: 6225-01 https://directories.csa-international.org
| for fuse links size: | Class J 30 A |
| fuse links acc. to standard: | UL 248-8 |
| 所使用熔断器的允许损耗功率: | 5 W |
| Details IEC | |
| 标准 | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
| Electrical data IEC | |
| min. operating voltage AC: | 110 V |
| min. operating voltage DC: | 110 V |
功率输出:
The power dissipation at a typical load of 80 % results to 0.1 W.
(The power dissipation at full load would be 0.2 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最小允许工作温度 | -40°C |
| 适用于J级1-30A熔断器 符合UL248-8(21x57 ) LEDr 工作电压范围 : 110 - 600 V AC / DC |
| Details UL | |
| 标准 | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| 额定电流 (UL): | 30 A |
| 额定电压 (UL) AC: | 600 V |
| min. operating voltage AC: | 110 V |
| rated frequency (UL): | 50 / 60 Hz |
| 额定电压 (UL) DC: | 600 V |
| min. operating voltage DC: | 110 V |
| for wires UL: | Cu 75°C |
| SCCR: | 200 kA |
| 机械数值 | |
| 宽 x 高 x 厚: | 36 x 115 x 69 |
| 重量: | 15.8 kg/100 |
| 极数: | 1 极 |
| Mounting: | for mounting rail |
| 防护等级: | IP20 |
| 正面防护等级: | IP20 |
| 连接端 | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 20 mm |
| min. cross-section: | 0.75 mm² |
| 最大横截面积: | 50 mm² |
| f: | 0.75 - 50 mm² |
| f + AE: | 0.75 - 50 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 3.2 Nm |
| Md max.: | 4.8 Nm |
| Not suitable for aluminium cables ! | |
| 最小横截面积: | AWG 18 |
| max. cross-section UL: | AWG 1/0 |
| torque (UL): | 35 lb-in |
| for wires UL: | Cu 75°C |
|
for applications acc. to IEC / EN: |
|
| 原材料性能 | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| 所使用熔断器的允许损耗功率: | 5 W |
| for UL feeder circuits >250V | |
