适用 UL 供电电路 >250V

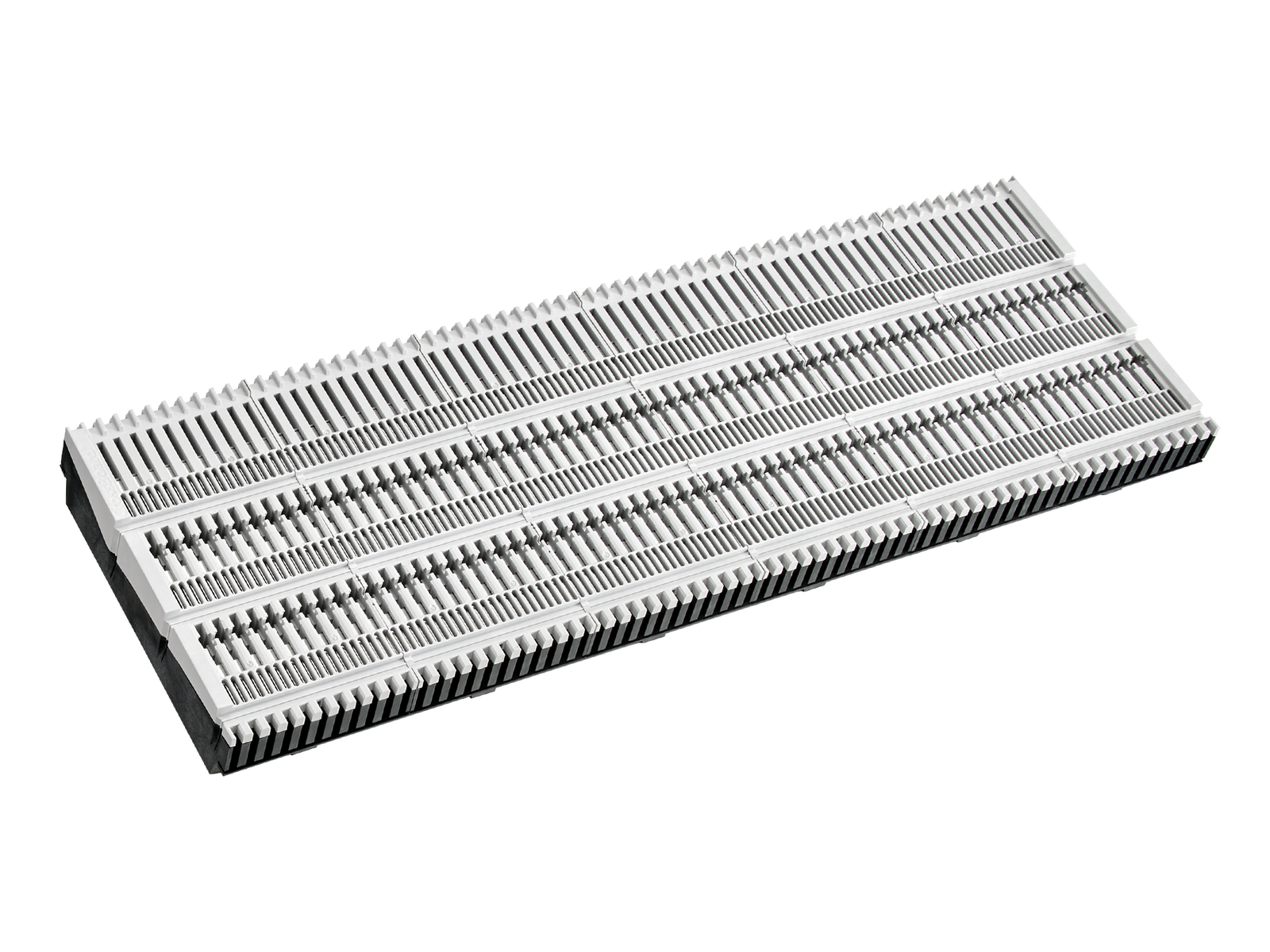

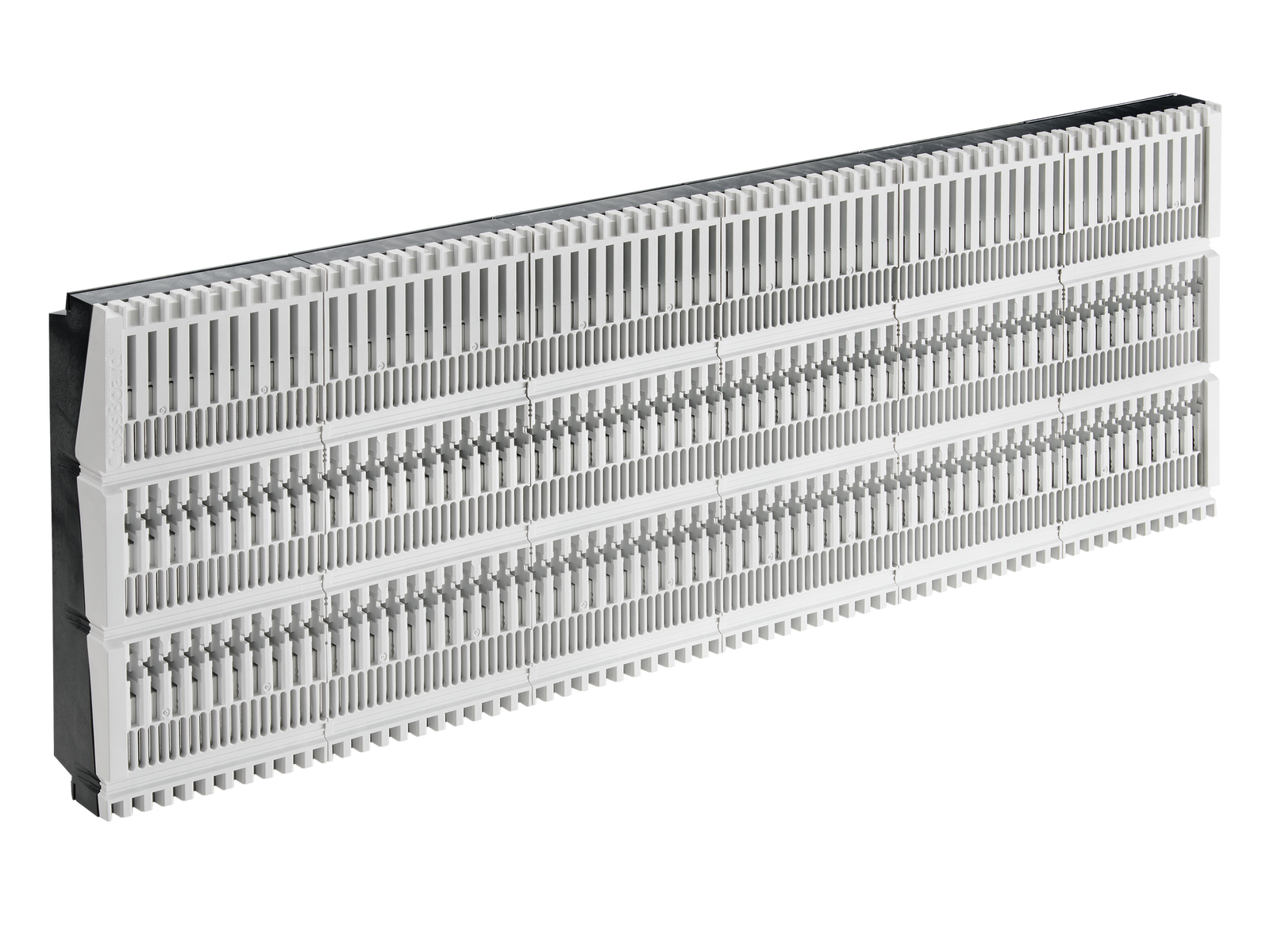

The picture may show a similar product.
订货号 11809000A
CrossBoard®
basic system 800 A

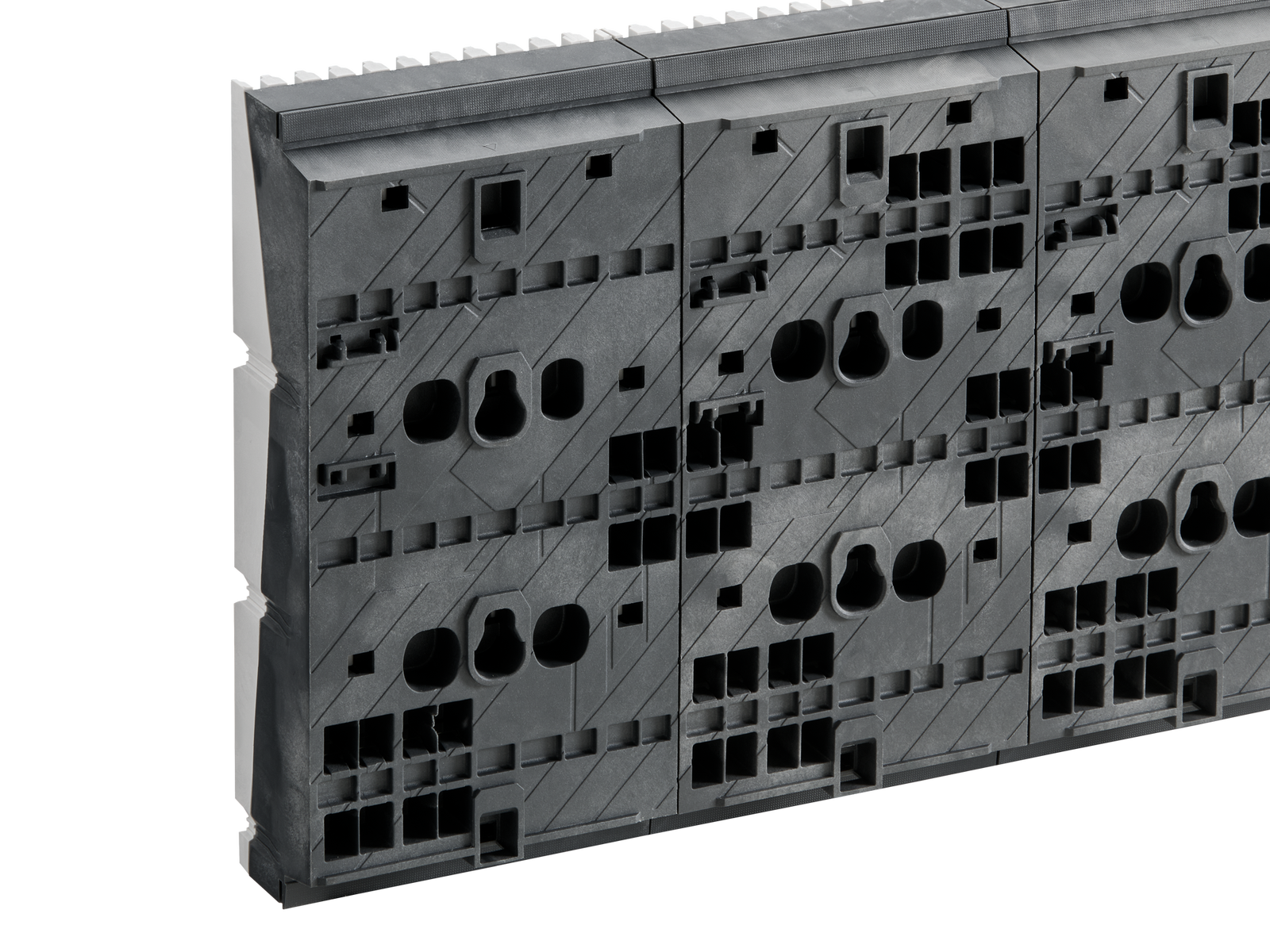

for rear feeding
3 极
900 mm 长，防触摸保护
带 CrossLink® 接口
短期内将供货
系统
CrossBoard® 800 A
产品优势
touch-safe protected busbar system up to 800 A
rear feedable
plug and play
completely pre-assembled and immediately ready for use
| 产品组 | 06 |
分组 |
50 |
| 包装件数 | 1 |
| EAN | 4021267118099 |
标准
IEC 61439-1:2020
UL 508
认证许可
IEC (CB) , UL
for UL feeder circuits >250V
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 额定电流（IEC）: | 800 A |
| 额定电压（IEC）AC: | 800 V |
| rated isolation voltage Ui AC: | 1000 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
| 额定冲击耐受电流 Ipk : | 80 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 40 kA |
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最大电压 IEC DC: | 1000 V |
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电流 (UL): | 800 A |
| 额定电压 (UL) AC: | 800 V |
| rated frequency (UL): | 50 / 60 Hz |
| 额定电压 (UL) DC: | 600 V |
| SCCR unprotected max.: | 40 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| 短路电流额定值: |
100 kA with JDDZ fuse Class L/T 800 A / 600 V AC
65 kA with any DIVQ/7 circuit breaker 800 A / 480 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 900 x 200 x 45 |
| 极数: | 3线 |
| 防护等级: | IP20 |
| for UL feeder circuits >250V |
