产品选择

适用 UL 供电电路 >250V

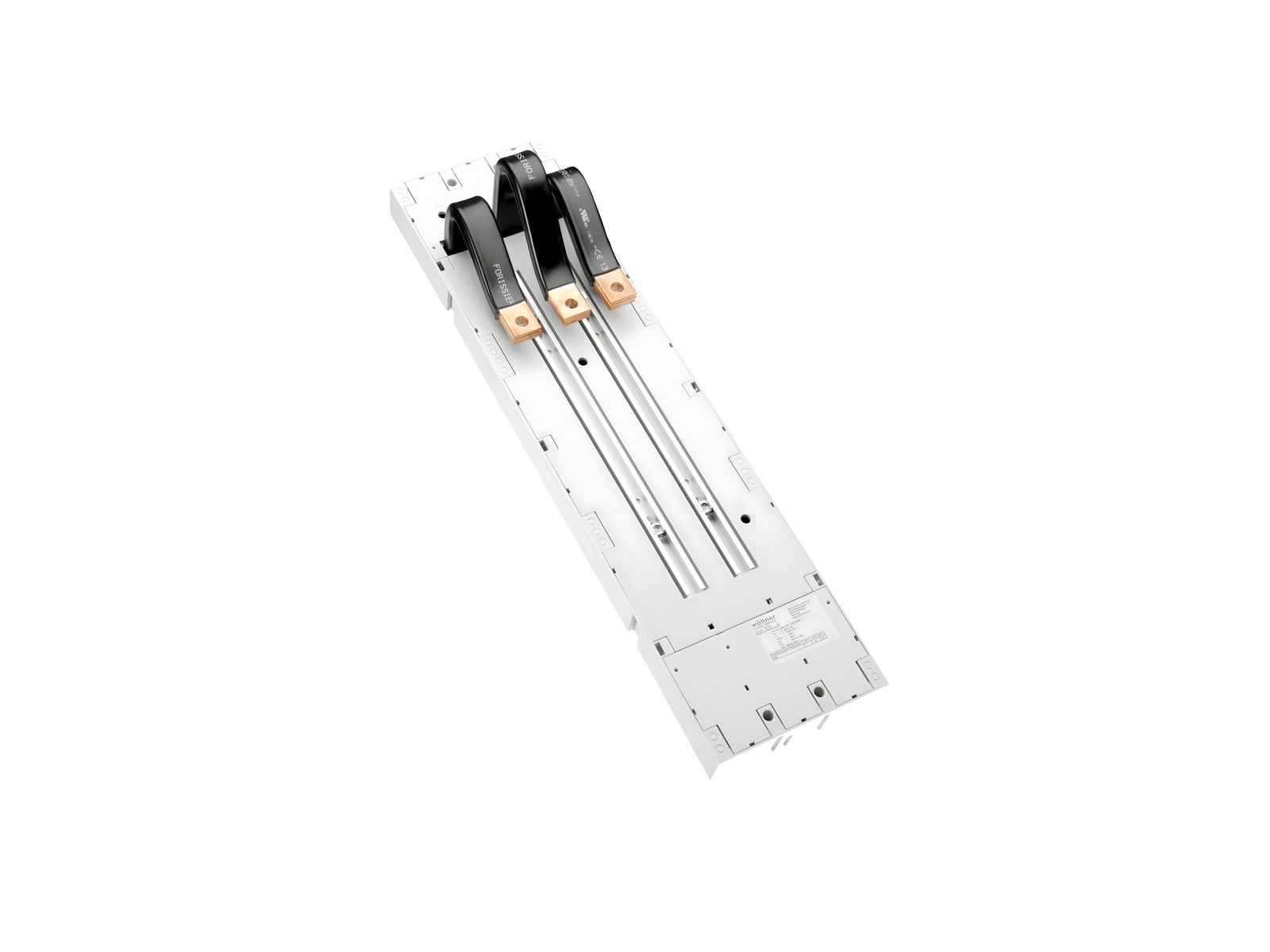

母线转接器 630 A (32742)

The picture may show a similar product.

说明

订货号 32742 000A

EQUES®185Power

母线转接器 630 A

通用版本，最大 630A, 相间距 43 - 46 mm

上端连接，标准挂钩连接

适用母线 30, 40, 60, 80, 100, 120 x 10

系统

185Power

产品优势

Device can be mounted covering the busbar support (in systems with and without CrossLink® touch-safe protection cover)

产品组 05

分组

 48
包装件数 1
EAN 4021267327422
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

认证

标准

IEC 61439-1:2020

UL 508

认证许可

UL

for UL feeder circuits >250V

型号: EQ185-A630-C

UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com

UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com

CCC 认证: 无需强制认证

产品信息

Details IEC
标准
IEC 61439-1:2020
Electrical data IEC
端部供电（IEC）: 630 A
额定电压（IEC）AC: 800 V
rated isolation voltage Ui AC: 1000 V
额定冲击耐受电压 Uimp: 12 kV
额定冲击耐受电流 Ipk : 63 kA
rated short-time withstand current Icw (1.0 s) max.: 30 kA

the following required reductions have been determined by tests:
with MCCB ABB Tmax T5, XT5
with MCCB Allen-Bradley 140G-K
with MCCB Eaton NZM3
with MCCB Schneider Electric NSX630
with MCCB Schrack MC3
with MCCB Siemens 3VA14, 3VM64
with MCCB Siemens 3VA23, 3VA24
with MCCB Siemens 3VA64

Power dissipation of the adapter:
at 500A => 58W
at 530A => 65W
at 565A => 73W
at 570A => 80W
Details UL
标准
UL 508
for UL feeder circuits >250V
Electrical data UL
额定电流 (UL): 630 A
额定电压 (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
额定电压 (UL) DC: 1000 V
SCCR unprotected max.: 22 kA
3 cycles (without OPD) @ 600 V AC
短路电流额定值: 65 kA with any DIVQ/7 circuit breaker 600 A / 600 V AC
机械数值
宽 x 高 x 厚: 150 x 585 x 47
重量: 640.0 kg/100
极数: 3 极
适用母线: 30, 40, 60, 80, 100, 120 x 10
CT can be integrated in the device: ja

Application notes

保留足够的电流互感器的位置

断路器承载转接器的短路保护

for UL feeder circuits >250V

链接

Article master data, overviews and prices

最新的金属附加值

3D and 2D data in a wide range of formats

CAD Daten WSCAD

下载

| 通用技术说明

| 安装说明

| CAD Modell 3D PDF

| CAD model 3D STP

| CAD Symbol 2D DXF

| Data packet EPlan (*.edz)

| 比例图

| EU 符合性声明

| 产品描述（PDF)

| 设计验证用产品数据，根据 IEC / EN 61439-1

| 招标文件 - 扩展版本(*.rtf)

| 招标文件 - 标准版本(*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

附件

accessories for mounting

37900 000A
固定件，用于电流互感器
for mounting at busbars and in adapters 630 A
for busbars 25-30 x 5 and 12-30 x 10
更多

measuring transformers 333mV

37307 000A
333 mV 电流互感器，600 A
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37296 000A
333 mV 电流互感器，200 A
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37304 000A
333 mV 电流互感器，250 A
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37289 000A
333 mV 电流互感器，200 A
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37298 000A
333 mV 电流互感器，400 A
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37305 000A
333 mV 电流互感器，400 A
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37293 000A
333 mV 电流互感器，600 A
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37290 000A
333 mV 电流互感器，250 A
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37303 000A
333 mV 电流互感器，200 A
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
on request
更多

37306 000A
333 mV 电流互感器，500 A
class 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37292 000A
333 mV 电流互感器，500 A
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37291 000A
333 mV 电流互感器，400 A
class 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37297 000A
333 mV 电流互感器，250 A
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37300 000A
333 mV 电流互感器，600 A
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

37299 000A
333 mV 电流互感器，500 A
class 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
新型
更多

current transformers class 1

37212 000A
电流互感器 200 A / 5 A
2.5 VA / 精度等级 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37213 000A
电流互感器 250 A / 5 A
2.5 VA / 精度等级 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37214 000A
电流互感器 400 A / 5 A
2.5 VA / 精度等级 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37215 000A
电流互感器 500 A / 5 A
2.5 VA / 精度等级 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37216 000A
电流互感器 630 A / 5 A
2.5 VA / 精度等级 1
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

current transformers class 0.5

37219 000A
电流互感器 200 A / 5 A
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37220 000A
电流互感器 250 A / 5 A
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37221 000A
电流互感器 400 A / 5 A
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37222 000A
电流互感器 500 A / 5 A
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37223 000A
电流互感器 630 A / 5 A
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37232 000A
电流互感器 200 A / 5 A，带符合性声明
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37233 000A
电流互感器 250 A / 5 A，带符合性声明
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37234 000A
电流互感器 400 A / 5 A，带符合性声明
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37235 000A
电流互感器 500 A / 5 A，带符合性声明
2.5 VA / 精度等级 0.5
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

current transformers class 0.5s

37236 000A
电流互感器 250 A / 5 A，带符合性声明
2.5 VA / 精度等级 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
fino esaurimento scorte
更多

37237 000A
电流互感器 400 A / 5 A，带符合性声明
2.5 VA / 精度等级 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多

37238 000A
电流互感器 500 A / 5 A，带符合性声明
2.5 VA / 精度等级 0.5s
when used on busbars or in 630 A adapters, article 37900 is additionally required
更多
