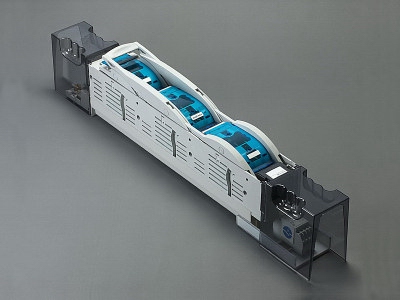

На фотографии может быть изображена аналогичная статья.
Арт.: 33289000
Линейный выключатель-разъединитель с предохранителями 630 A
Винт М12, с контролем состояния предохранителей
Типоразмер 3
больше не доступный
Преимущества продукта
Self-closing inspection holes are available in the cover.
Strips are equipped with arc chambers.
Cover can be locked in closed condition.
Electronic fuse monitoring:
operating current principle, optionally with latching properties (latches without bridge X1-X2)
device display:
green LED = intact fuses
red LED = fuse tripped, cover position up
| Группа продуктов | 12 |
| Подгруппа | 55 |
| Кол-во | 1 |
| EAN | 4021267332891 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Стандарты
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Сертификация
IEC (CB) , CCC
номер типа: SLS3
CCC certificate: 2004010302117259
| допустимая мощность рассеивания плавкой вставки: | 48 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Типоразмер: | NH 3 |
| Подробности IEC | |
| Стандарты | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Электрические данные IEC | |
| Номинальный ток (IEC): | 630 A |
| номинальное напряжение (IEC) AC: | 690 В |
| номинальное напряжение изоляции U i AC: | 1000 В |
| номинальное импульсное напряжение U imp : | 4 kV |
| Катагория применения AC: | AC-23B (400V) |
| cond. short-circuit current with fuses (AC): | 100 kA / 690 V |
| одобрено с плавкими вставками рабочего класса: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 74,2 Вт.
(The power dissipation at full load would be 116,0 Вт.)
| Дополнительные данные IEC | |
|
Следующие значения были проверены в ходе испытаний при определенных условиях. Для конкретного проектирования установки необходимо получить у компании Wöhner соответствующие условия. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Electronic fuse monitoring: nominal voltage: 3AC 400V nominal frequency: 50...40Hz switch contact: 2 changeover switches, max. AC 250V, AC15 closer 3A, opener 1A rated surge voltage: 4kV pollution degree: 2 |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Механические данные | |
| Ш x В x Г: | 99 x 908 x 195 |
| Вес: | 750,0 kg/100 |
Type of fastening:

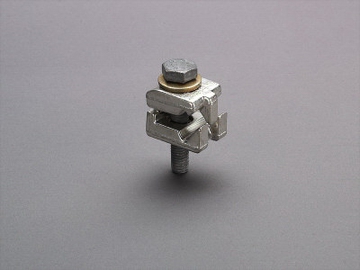

can be screwed onto drilled busbar, undrilled with terminal clamp,
connection:
screw connection M12, SW19, 35Nm torque
Conductor connection, fuse monitoring:
2 x 2.5mm² solid DIN 46 288 or
2 x 1.5mm² braid with ferrule
DIN 46 228-1/-2/-3
| Особенности клеммной техники | |
|
screw M12 : |
|
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| допустимая мощность рассеивания плавкой вставки: | 48 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
