Cod.art.: 35016000

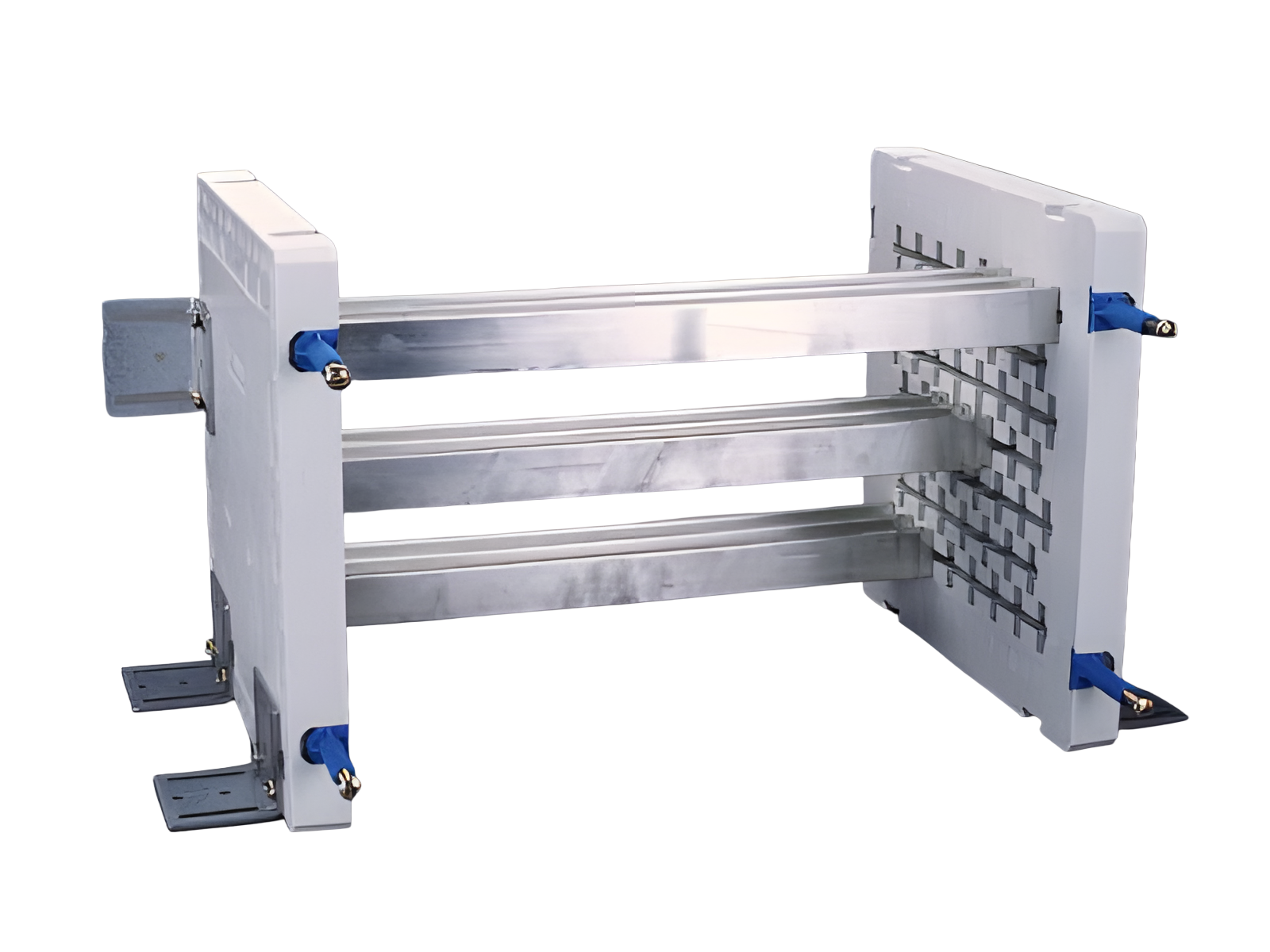

Unità di allacciamento 3200 A
per larghezza quadro 800 mm
usable busbar length 603 mm
Montaggio
centre feed unit
Vantaggi prodotto
Clear construction and undrilled connection technology enable safe and cost-efficient solutions to problems.
gruppo di prodotto | 11 |
sottogruppo prodotto | 12 |
pz/ conf. | 1 |
EAN | 4021267350161 |
ECLASS 6.1 | 27370390 |
ECLASS 7.1 | 27370390 |
ETIM 4.0 | EC001900 |
ETIM 5.0 | EC001900 |
Norme
IEC 61439-1:2020
UL 508
Omologazioni
UL
for UL feeder circuits >250V
type no.: CentreFeedUnit
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
Omologazione CCC : no certification required
Details IEC | |
Norme | |
IEC 61439-1:2020 |
Electrical data IEC | |
corrente nominale (IEC): | 3200 A |
tensione nominale (IEC) AC: | 690 V |
tensione nominale di isolamento Ui AC: | 1000 V |
tensione di picco Uimp: | 8 kV |
resistenza nom. alla corrente di picco Ipk max.: | 84 kA |
rated short-time withstand current Icw (0.1 s) max.: | 50 kA |
corrente nom. di breve durata Icw (0,3 s) max.: | 28.5 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 42,2 W.
(The power dissipation at full load would be 65,9 W.)
Details UL | |
Norme | |
UL 508 |
for UL feeder circuits >250V |
Electrical data UL | |
corrente nominale (UL): | 1800 A |
tensione nominale (UL) AC: | 600 V |
frequenza nominale (UL): | 50 / 60 Hz |
SCCR protected max.: | 103 kA |
with JDDZ fuse Class L 1600 A / 600 V AC |
Valori meccanici | |
L x A x P: | 783 x 300 x 300 |
peso: | 2940,0 kg/100 |
Poli: | 3 poli |
Sezione: | 1.140 mm² |
Avvisi e consigli |
The scope of delivery includes: 2 busbar supports, 3 busbars, fastening brackets, fastening screws and holders for covers. |
for UL feeder circuits >250V |
