Adattatore 160 A, 4p (32640)

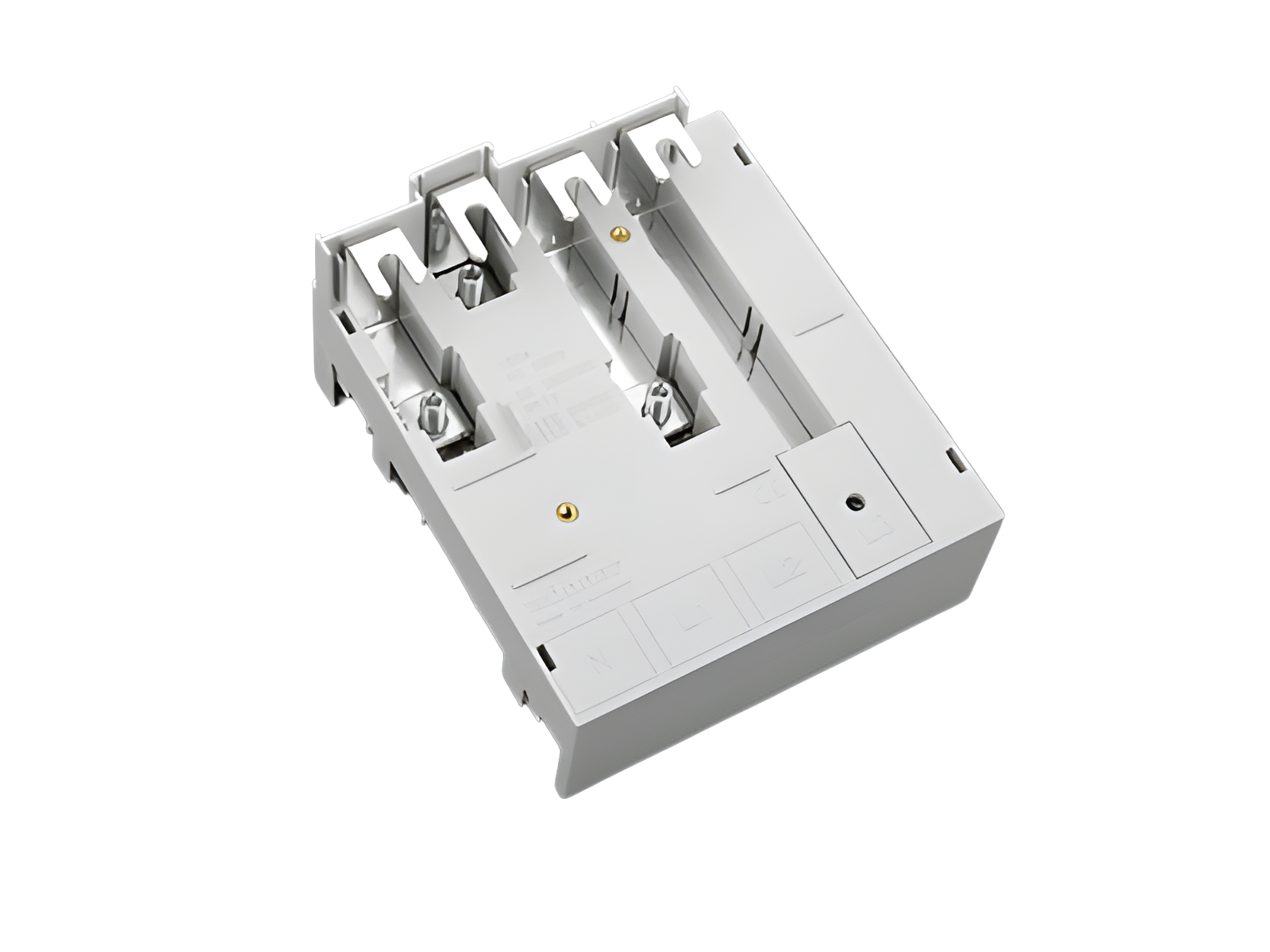

The picture may show a similar product.

Descrizione

Cod.art.: 32640 000

EQUES®30Compact

Adattatore 160 A, 4p

141 x 160

coll. al sistema in alto

per Schneider Electric INS100, INS125, INS160

per barre 12 x 5

Montaggio

30Compact 5P

gruppo di prodotto 05
sottogruppo prodotto 30
pz/ conf. 1
EAN 4021267326401
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

Certificazioni

Norme

IEC 61439-1:2020

Omologazione CCC : no certification required

Dati tecnici

Details IEC
Norme
IEC 61439-1:2020
Electrical data IEC
corrente nominale (IEC): 160 A
tensione nominale (IEC) AC: 690 V
tensione nominale di isolamento Ui AC: 800 V
tensione di picco Uimp: 6 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 4,7 W.

(The power dissipation at full load would be 7,4 W.)

Valori meccanici
L x A x P: 141 x 160 x 88
peso: 64,0 kg/100
Poli: 3 poli + N
per barre: 12 x 5

Links

Article master data, overviews and prices

Addizionali metalli

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| Riferimenti normativi e tecnici generici

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Scheda tecnica prodotto (pdf)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
