for UL feeder circuits >250V
The picture may show a similar product.
Cod.art.: 32584 000

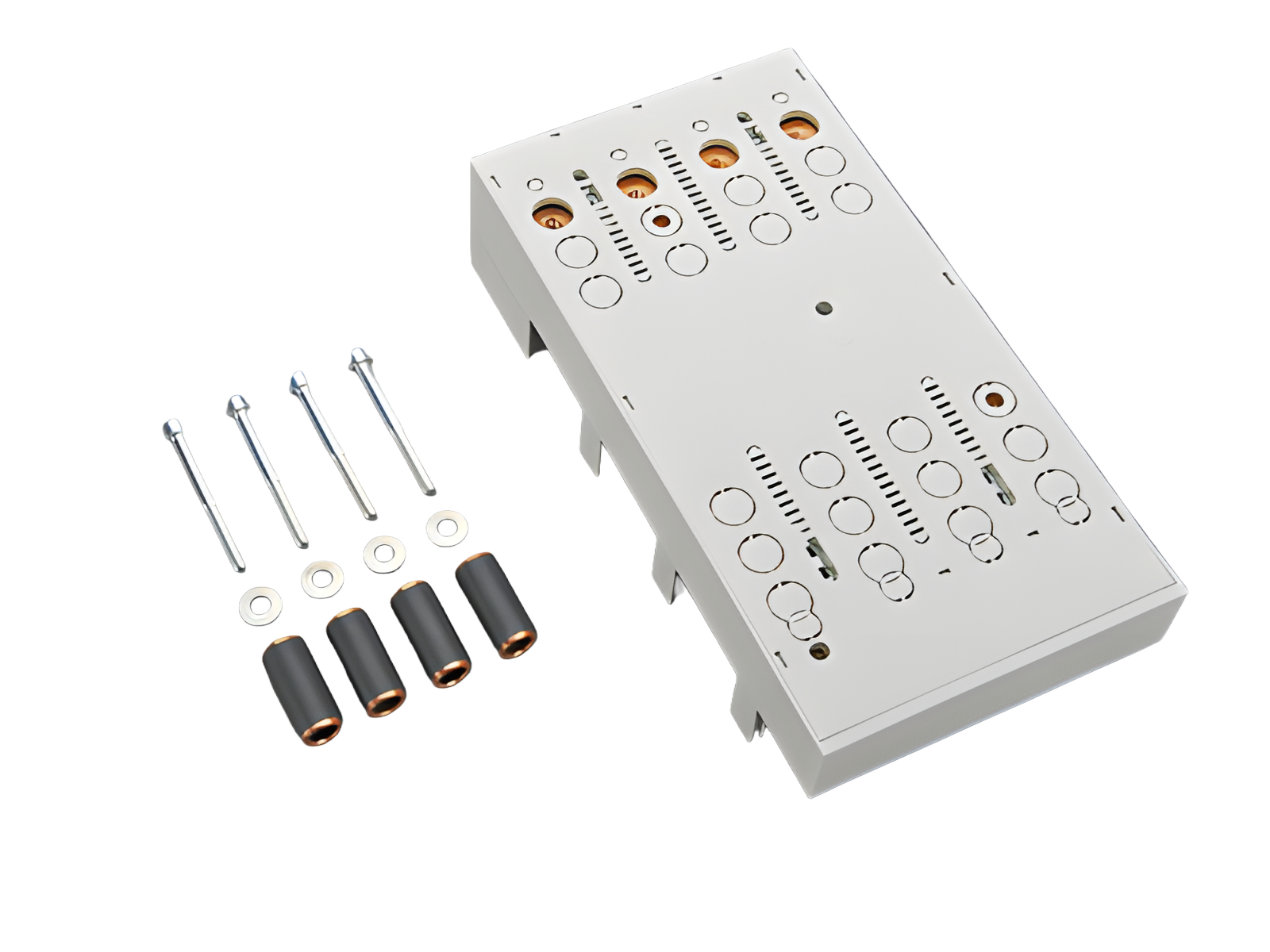

EQUES®60Classic
Adattatore EPC 250 A, 4p
140 x 270
N sul lato sinistro
coll. al sistema in alto
per ABB Tmax T4
per barre 12, 15, 20, 25, 30 x 5, 10 e barre profilate
Montaggio
60Classic
| gruppo di prodotto | 05 |
| sottogruppo prodotto | 36 |
| pz/ conf. | 1 |
| EAN | 4021267325848 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Norme
IEC 61439-1:2020
UL 508
Omologazioni
CSA , UL
for UL feeder circuits >250V
type no.: EPC60250-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| corrente nominale (IEC): | 250 A |
| tensione nominale (IEC) AC: | 690 V |
| tensione nominale di isolamento Ui AC: | 800 V |
| tensione di picco Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 8,1 W.
(The power dissipation at full load would be 12,6 W.)
| Details UL | |
| Norme | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| corrente nominale (UL): | 250 A |
| tensione nominale (UL) AC: | 600 V |
| frequenza nominale (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 22 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 200 kA |
| SCCR: |
200 kA with 3VA61 150 A, 3VA62 250 A / 240 V AC
50 kA with 3VA61 150 A, 3VA62 250 A / 600 V AC 150 kA with 3VA61 150 A, 3VA62 250 A / 480 V AC |
| Valori meccanici | |
| L x A x P: | 140 x 270 x 35 |
| peso: | 180,0 kg/100 |
| Poli: | 3 poli + N |
| per barre: | 12, 15, 20, 25, 30 x 5, 10 e barre profilate |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
|
the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB |
|
