Sezionatore sottocarico, 3 poli (33543)

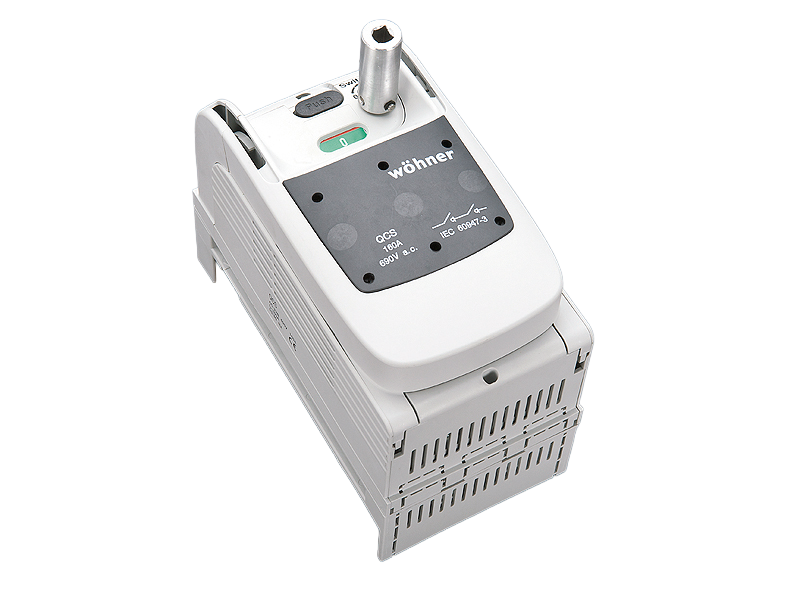

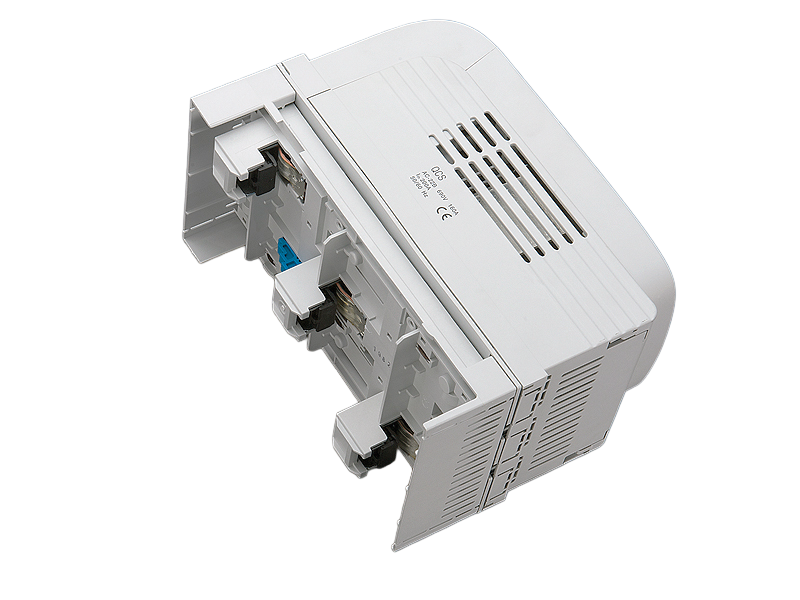

The picture may show a similar product.

Descrizione

Cod.art.: 33543000

QUADRON®60Classic Speed

Sezionatore sottocarico, 3 poli

morsetti a gabbia, connessione in basso, per manovra rinviata

160 A

double-breaking

operator independent switching (snap-action mechanism)

per barre 12, 15, 20, 25, 30 x 5, 10 e barre profilate

Montaggio

60Classic

Vantaggi prodotto

With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Lockable in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting double-breaking main contacts
Can be used as a mains disconnector as per IEC / EN 60204-1 (main switch)
Can also be used as an Emergency Off switch in combination with the door coupling twist handle
Main switch and Emergency Off switch only in combination with AC-23A/B
AC-23B (690V/125A), AC-23A (500V/125A)

CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars

Switches can be installed 90° left/right horizontal, always with the same switch handle position

Compact dimensions (106mm wide)

gruppo di prodotto 14
sottogruppo prodotto 20
pz/ conf. 1
EAN 4021267335434
ECLASS 6.1 27371403
ECLASS 7.1 27371403
ETIM 4.0 EC000216
ETIM 5.0 EC000216

Certificazioni

Norme

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

type no.: QCS-160

Dati tecnici

Details IEC
Norme
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
corrente nominale (IEC): 160 A
tensione nominale (IEC) AC: 690 V
tensione nominale di isolamento Ui AC: 800 V
tensione di picco Uimp: 8 kV
Categoria d'impiego AC: AC-23B (690V/125A)
AC-23A (500V/125A)
AC-22A (690V/160A)
Categoria d'impiego DC: 2 current paths (L1,L3) in series
DC-22B (220V/125A)
corrente nom. di breve durata Icw (1,0 s) max.: 4.5 kA
rated short-circuit making capacity 7kA (690V AC) cond. rated short-circuit current 50kA (fuses gL/gG size 00 125A-690V AC)
Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals.
When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed.
System component: degree of protection IP20 at front as per DIN EN 60529, degree of protection near terminal depends on installation; shock protection as per DIN EN 50274
adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe)
Valori meccanici
L x A x P: 106 x 200 x 155
peso: 208,0 kg/100
Poli: 3 poli
per barre: 12, 15, 20, 25, 30 x 5, 10 e barre profilate

Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars

Connessioni
Not suitable for aluminium cables !


Box terminal:
1.5 -70mm² flexible cables, directly or with wire-end ferrules*, depending on contour of the insulated lead 95mm² could be connectable
1.5 - 10mm² solid round
16 - 70mm² stranded round
2x10mm², 2x16mm² and 2x25mm² flexible with wire-end ferrules, identical cables placed side by side, crimping square
2x10 - 2x35mm² flexible, identical cables placed side by side square

lam. Cu. 9-13 mm wide
Terminal space 13mm x 13mm

(*flexible cables of maximum cross-section may not fit when using wire-end ferrule)

Application notes

Not suitable for aluminium cables !

Links

Article master data, overviews and prices

Addizionali metalli

3D and 2D data in a wide range of formats

Downloads

| Riferimenti normativi e tecnici generici

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing

| EU declaration of conformity

| Scheda tecnica prodotto (pdf)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessori

33908000
microswitch di segnalazione posizione maniglia
contatto di commutazione 250 V AC / 5 A, 30 V DC / 4 A
per: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Di Più

33910000
mecc. manovra rinviata
nero, con maniglia
mecc. bloccoporta escludibile, attivabile
per: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Di Più

33911000
mecc. manovra rinviata
giallo-rosso, con maniglia
mecc. bloccoporta escludibile, attivabile
per: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Di Più

33912000
prolunga albero 290 mm
per: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Di Più

33913000
prolunga albero 490 mm
per: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Di Più

33914000
morsetto 120 mm²
connessione frontale
per: QCS-NH00, QCS-160
Di Più
