Cod.art.: 35005000

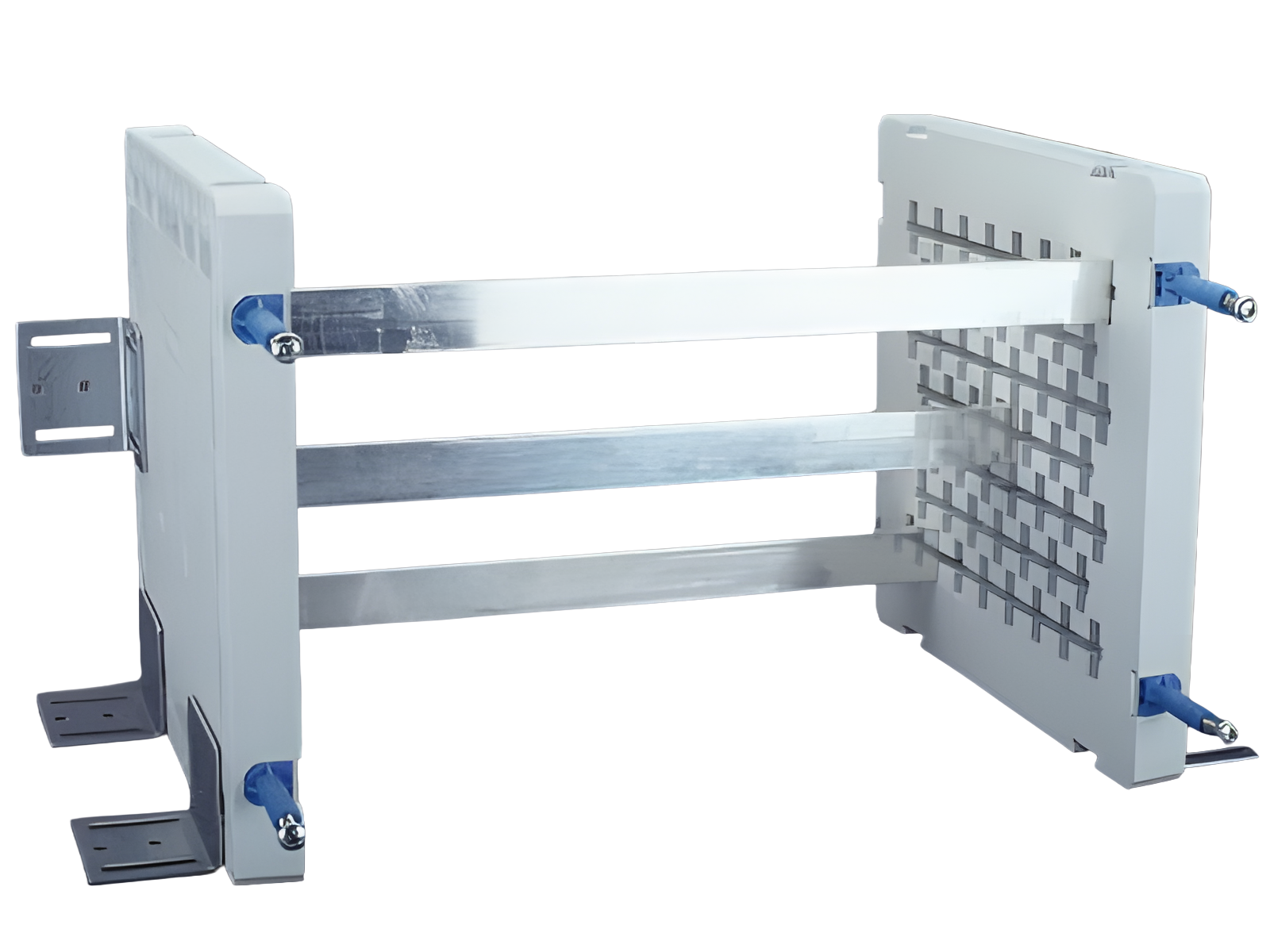

Unità di allacciamento 2000 A
per larghezza quadro 600 mm
usable busbar length 403 mm
Montaggio
centre feed unit
Vantaggi prodotto
Clear construction and undrilled connection technology enable safe and cost-efficient solutions to problems.
gruppo di prodotto | 11 |
sottogruppo prodotto | 12 |
pz/ conf. | 1 |
EAN | 4021267350055 |
ECLASS 6.1 | 27370390 |
ECLASS 7.1 | 27370390 |
ETIM 4.0 | EC001900 |
ETIM 5.0 | EC001900 |
Norme
IEC 61439-1:2020
UL 508
Omologazioni
UL
for UL feeder circuits >250V
type no.: CentreFeedUnit
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
Omologazione CCC : no certification required
Details IEC | |
Norme | |
IEC 61439-1:2020 |
Electrical data IEC | |
corrente nominale (IEC): | 2000 A |
tensione nominale (IEC) AC: | 690 V |
tensione nominale di isolamento Ui AC: | 1000 V |
tensione di picco Uimp: | 8 kV |
resistenza nom. alla corrente di picco Ipk max.: | 117 kA |
rated short-time withstand current Icw (0.1 s) max.: | 52.7 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 28,1 W.
(The power dissipation at full load would be 43,9 W.)
4-pole busbar system, can be retrofitted |
Details UL | |
Norme | |
UL 508 |
for UL feeder circuits >250V |
Electrical data UL | |
corrente nominale (UL): | 1400 A |
tensione nominale (UL) AC: | 600 V |
frequenza nominale (UL): | 50 / 60 Hz |
SCCR protected max.: | 103 kA |
with JDDZ fuse Class L 1600 A / 600 V AC |
Valori meccanici | |
L x A x P: | 583 x 300 x 300 |
peso: | 1716,0 kg/100 |
Poli: | 3 poli |
Sezione: | 720 mm² |
Avvisi e consigli |
The scope of delivery includes: 2 busbar supports, 3 busbars, fastening brackets, fastening screws and holders for covers. |
for UL feeder circuits >250V |
