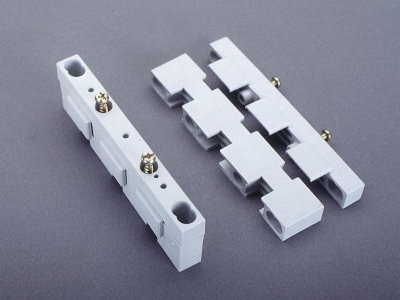

The picture may show a similar product.
Cod.art.: 01774 000
Supporto per barre
3p, sis. 40mm , fori fiss. interni
per barre 12 x 5, 10
non più disponibile
Vantaggi prodotto
With internal screw holes
can also be used as centre support.
| gruppo di prodotto | 06 |
| sottogruppo prodotto | 15 |
| pz/ conf. | 10 |
| EAN | 4021267017743 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Norme
IEC 61439-1:2020
UL 508
Omologazioni
CSA , UL
type no.: 497
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| tensione nominale (IEC) AC: | 690 V |
| tensione nominale di isolamento Ui AC: | 690 V |
| tensione di picco Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Short-circuit withstand rating: surge current strength > 34kA at busbar support separation of 400mm surge current strength > 45kA at busbar support separation of 200mm further values in the short-circuit withstand rating diagram |
| Details UL | |
| Norme | |
| UL 508 |
| Electrical data UL | |
| tensione nominale (UL) AC: | 600 V |
| frequenza nominale (UL): | 50 / 60 Hz |
| Valori meccanici | |
| L x A x P: | 15 x 140 x 41 |
| peso: | 9,3 kg/100 |
| Poli: | 3 poli |
| per barre: | 12 x 5, 10 |
Tightening torque of the screws: 4 Nm
