Selezione prodotto

for UL feeder circuits >250V

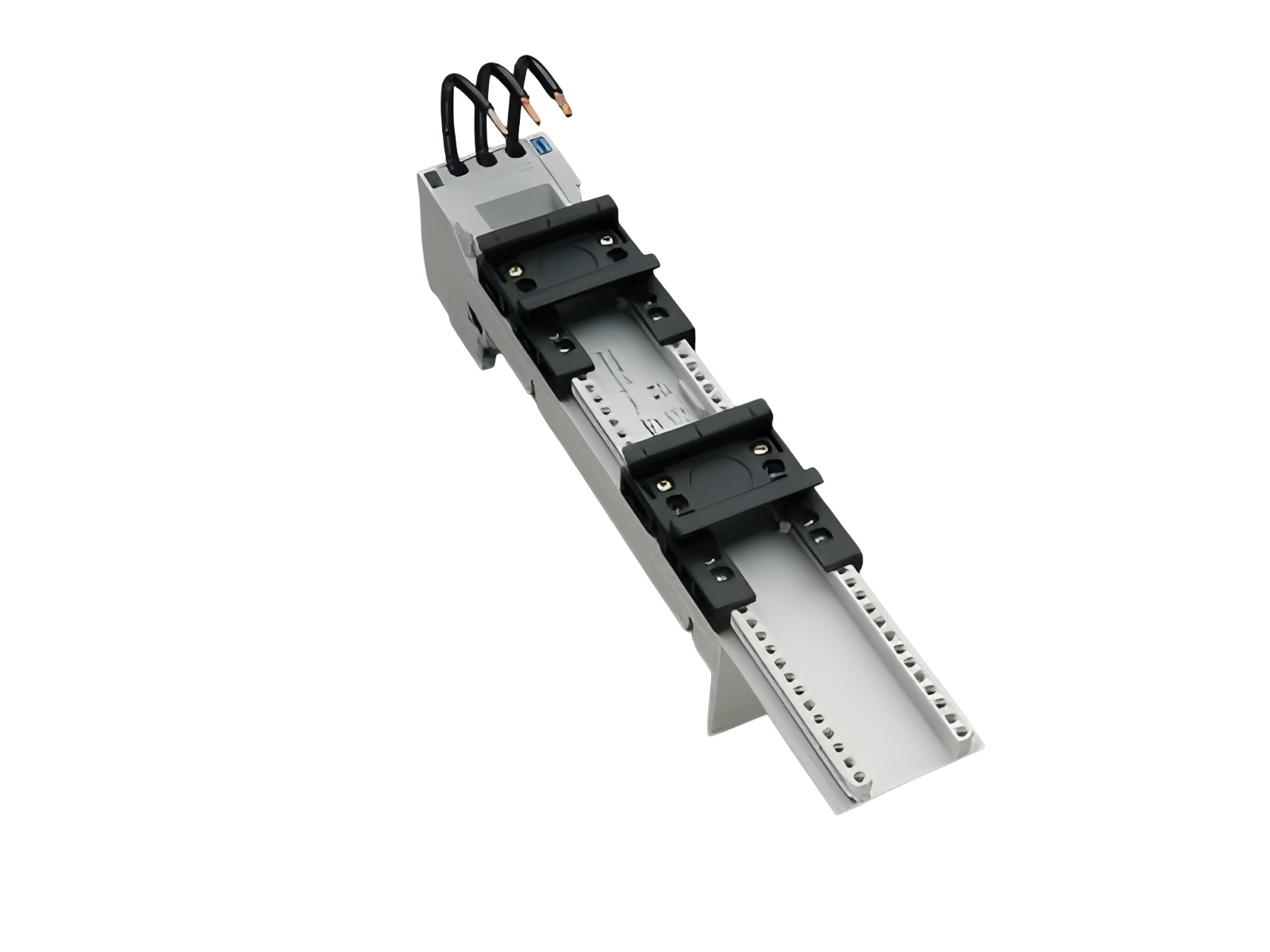

Adattatore EEC 25 A (32433)

The picture may show a similar product.

Descrizione

Cod.art.: 32433 000

EQUES®60Classic

Adattatore EEC 25 A

3p

con 2 guide DIN scorrevoli

45 x 260, con cavi AWG 12 (4 mm²)

per barre 12, 15, 20, 25, 30 x 5, 10 e barre profilate

Montaggio

60Classic

Vantaggi prodotto

Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.

gruppo di prodotto 05
sottogruppo prodotto 21
pz/ conf. 4
EAN 4021267324339
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

Certificazioni

Norme

IEC 61439-1:2020

UL 508

Omologazioni

CSA , UL

for UL feeder circuits >250V

type no.: EEC6025-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

Omologazione CCC : no certification required

Dati tecnici

Details IEC
Norme
IEC 61439-1:2020
Electrical data IEC
corrente nominale (IEC): 25 A
tensione nominale (IEC) AC: 690 V
tensione nominale di isolamento Ui AC: 800 V
tensione di picco Uimp: 6 kV

Motorschutzschalter bis 25 A:
    50 kA @ 600 V / Durchlassstrom 7 kA
Motorschutzschalter bis 32 A:
    25 kA @ 480 V / Durchlassstrom 9 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 1,2 W.

(The power dissipation at full load would be 1,9 W.)

Details UL
Norme
UL 508
for UL feeder circuits >250V
Electrical data UL
corrente nominale (UL): 25 A
tensione nominale (UL) AC: 600 V
frequenza nominale (UL): 50 / 60 Hz
SCCR unprotected max.: 5 kA
3 cycles (without OPD) @ 600 V AC
SCCR protected max.: 65 kA
SCCR: 50 kA with any NKJH Comb. Motor Controller 32 A / 480 V AC
65 kA with any NKJH Comb. Motor Controller 16 A / 480 V AC
30 kA with any NKJH Comb. Motor Controller 12,5 A / 600 V AC
65 kA with any NKJH Comb. Motor Controller 25 A / 480 V AC
Valori meccanici
L x A x P: 45 x 260 x 63
peso: 35,7 kg/100
Poli: 3 poli
per barre: 12, 15, 20, 25, 30 x 5, 10 e barre profilate
Connessioni
with leads
AWG12 (4 mm²)
wire stripping: 9 mm

Application notes

There must be a clearance of at least 12 mm above the article to remove it from the busbar system.

For compact mounting of complete motor circuits with commercially available switchgear and safe mechanical and electrical connection to the busbar system.

the short-circuit capacity of the combination of adapter and motor starter depends on the motor starter

for UL feeder circuits >250V

Links

Article master data, overviews and prices

Addizionali metalli

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| Riferimenti normativi e tecnici generici

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Scheda tecnica prodotto (pdf)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessori

accessories for mounting

32969 000
bloccaggio laterale per guide DIN
Di Più

further accessories

32947 000
guida DIN, 45 mm
per adattatori EEC/ EMC
Di Più

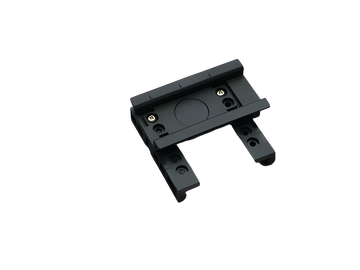

32949 000
guida DIN, 63 mm
per adattatori EEC/ EMC
Di Più

32963 000
Modulo laterale per adattatori EEC
per entrambi lati
9 x 200
per: EEC60..
Di Più

32979 000A
slitta di posizionamento per Eaton PKZ
Di Più

32952 000A
slitta di posizionamento per Siemens S00 e S0
Di Più
