for UL feeder circuits >250V
The picture may show a similar product.
Cod.art.: 01439 000A
CRITO®185Power

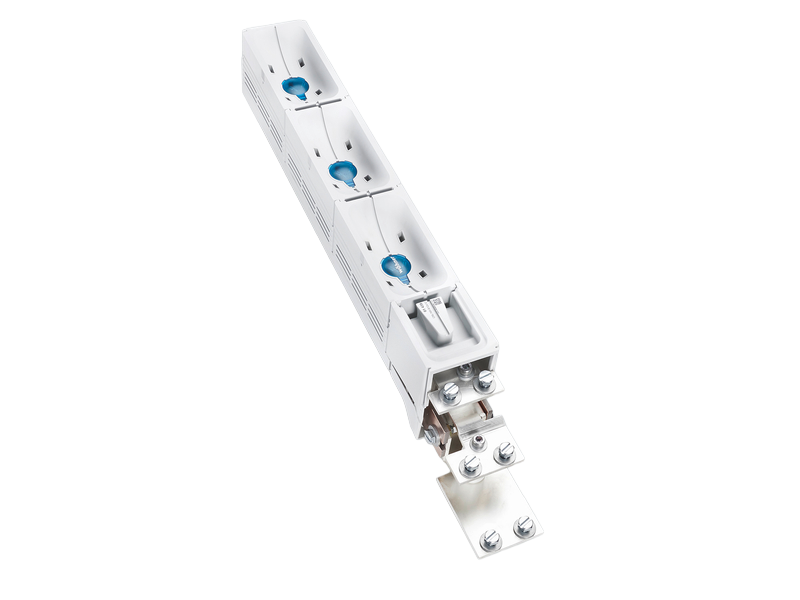

Modulo verticale di connessione
3p
per 3 capicorda 300 mm² (posizionati sfalsati), per 4 capicorda 240 mm² oppure lam. Cu 80 x 10
connessione cavi in alto o basso
per barre 30, 40, 60, 80, 100, 120 x 10
Montaggio
185Power
gruppo di prodotto | 07 |
sottogruppo prodotto | 57 |
pz/ conf. | 1 |
EAN | 4021267014391 |
ECLASS 6.1 | 27141146 |
ECLASS 7.1 | 27141146 |
ETIM 4.0 | EC000001 |
ETIM 5.0 | EC000001 |
Norme
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
type no.: CRL185-1000
Omologazione CCC : no certification required
Details IEC | |
Norme | |
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
Electrical data IEC | |
corrente nominale (IEC): | 1400 A |
tensione nominale (IEC) AC: | 690 V |
resistenza nom. alla corrente di picco Ipk max.: | 87.4 kA |
corrente nom. di breve durata Icw (1,0 s) max.: | 40.6 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 352,0 W.
(The power dissipation at full load would be 550,0 W.)
Supplementary data IEC | |
I seguenti valori sono stati rilevati tramite prove con determinate condizioni. Prima di progettare vostro impianto chiedere a Wöhner suddette condizioni. |
tensione max. ammissibile (IEC) AC: | 1000 V |
tensione max. ammissibile (IEC) DC: | 1500 V |
corrente d'impiego max. (IEC): | 1.400 A |
a current carrying capacity of 1400A was proved, when connected with 4 cables 240mm² (direct screw connection of the connection rail to the busbar system) |
Valori meccanici | |
L x A x P: | 100 x 960 x 150 |
peso: | 1050,0 kg/100 |
Poli: | 3 poli |
per barre: | 30, 40, 60, 80, 100, 120 x 10 |
Connessioni | |
screw connection | |
M12 | |
La capacità di isolamento dell'articolo dipende dalle condizioni di installazione. | |
For using more connection rails in parallel, a rated diversity factor according IEC 61439 should be taken into account. |
|
