for UL feeder circuits >250V
The picture may show a similar product.
Cod.art.: 32175 000AC
EQUES®60Classic

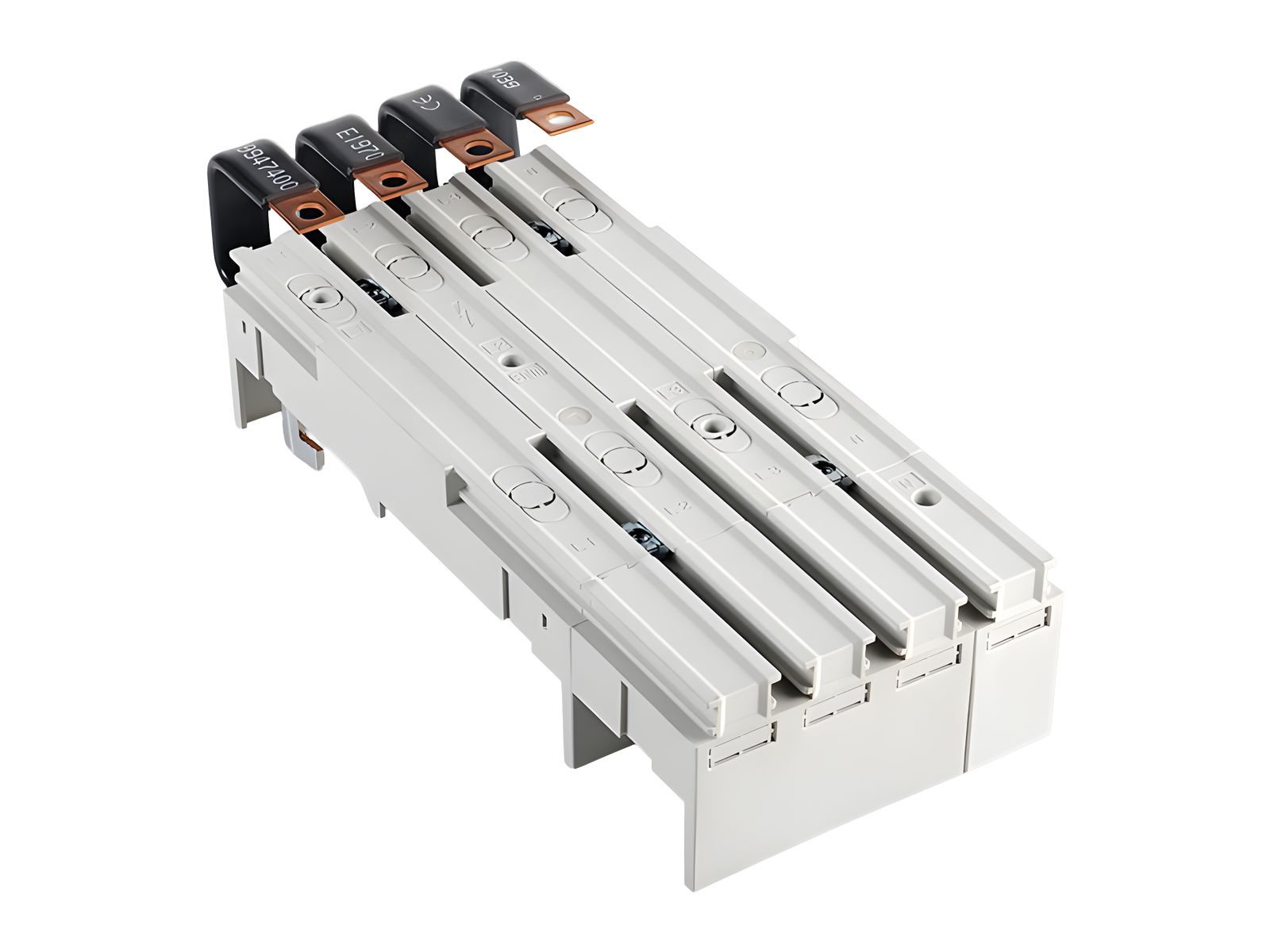

busbar adapter 160 A, 4-pole
bandelle flex (in basso), omologato UL
100 x 260
phase distance 25 mm
N sul lato sinistro
coll. al sistema in basso
per ABB T1, XT1 / Schneider Electric NSXm160 / Siemens 3VA10, 3VA11
per barre 12, 15, 20, 25, 30 x 5, 10 e barre profilate
Montaggio
60Classic
| gruppo di prodotto | 05 |
| sottogruppo prodotto | 30 |
| pz/ conf. | 1 |
| EAN | 4021267321758 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Norme
IEC 61439-1:2020
Omologazioni
for UL feeder circuits >250V
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| corrente nominale (IEC): | 160 A |
| tensione nominale (IEC) AC: | 690 V |
| tensione nominale di isolamento Ui AC: | 800 V |
| tensione di picco Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 11,7 W.
(The power dissipation at full load would be 18,3 W.)
| for UL feeder circuits >250V |
| Valori meccanici | |
| L x A x P: | 100 x 260 x 35 |
| peso: | 100,8 kg/100 |
| Poli: | 3 poli + N |
| per barre: | 12, 15, 20, 25, 30 x 5, 10 e barre profilate |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
|
the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB |
|
| for UL feeder circuits >250V |
