for UL feeder circuits >250V

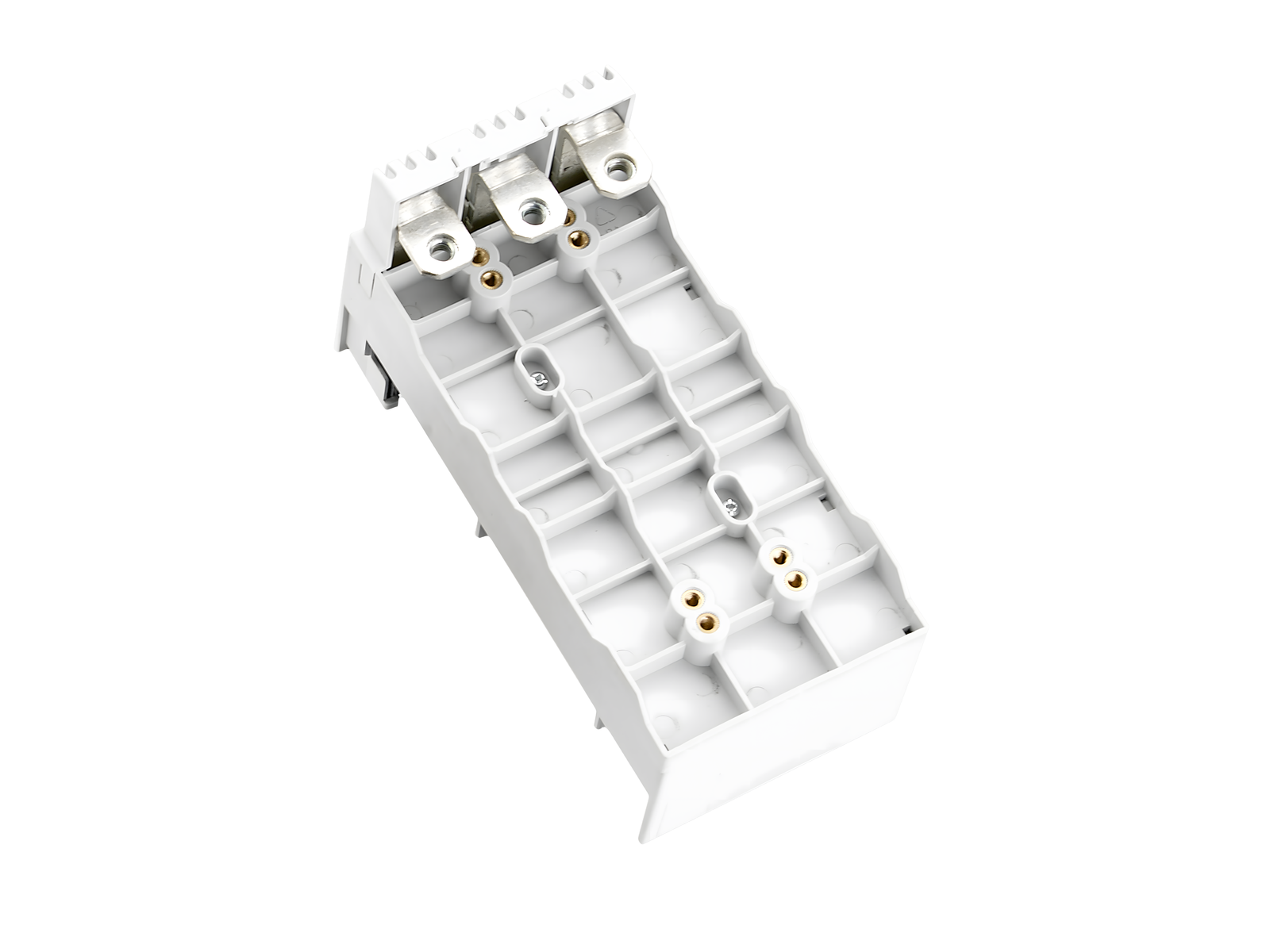

The picture may show a similar product.
Cod.art.: 32661000A
EQUES®30Compact
Adattatore 144 A, 3p
76 x 160
per Siemens 3VA10, 3VA11
per barre 12 x 5, 10
Montaggio
30Compact 3P
| gruppo di prodotto | 05 |
| sottogruppo prodotto | 30 |
| pz/ conf. | 1 |
| EAN | 4021267326616 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Norme
IEC 61439-1:2020
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| corrente nominale (IEC): | 144 A |
| tensione nominale (IEC) AC: | 690 V |
| tensione nominale di isolamento Ui AC: | 800 V |
| tensione di picco Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 7,7 W.
(The power dissipation at full load would be 12,0 W.)
| Valori meccanici | |
| L x A x P: | 76 x 160 x 98 |
| peso: | 78,0 kg/100 |
| Poli: | 3 poli |
| per barre: | 12 x 5, 10 |
| short-circuit withstandability: | the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB |
