for UL feeder circuits >250V

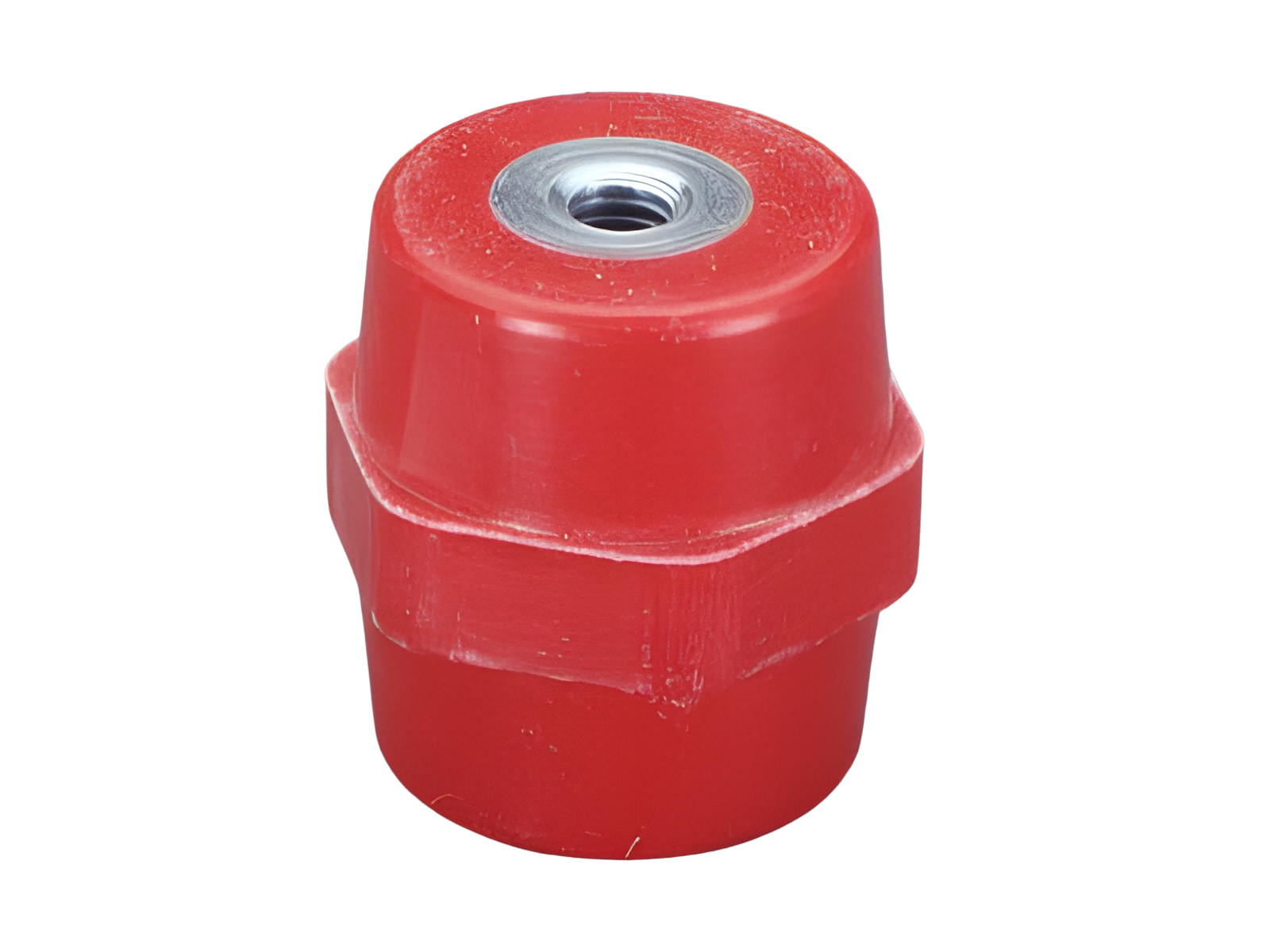

The picture may show a similar product.
Cod.art.: 05791000
Isolatore
filettatura interna bilaterale, diametro 40
M12 x 40
| gruppo di prodotto | 06 |
| sottogruppo prodotto | 89 |
| pz/ conf. | 20 |
| EAN | 4021267057916 |
| pagina catalogo | 2020 : 7.17 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Norme
IEC 61439-1:2011
Omologazioni
EAC
EAC Type: IS
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
| IEC 61439-1:2011 |
| Electrical data IEC | |
| tensione nominale (IEC) AC: | 2000 V |
| tensione nominale (IEC) DC: | 2000 V |
| short-circuit withstandability: | no data |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Valori meccanici | |
| L x A x P: | 40 x 40 x 40 |
| peso: | 11,8 kg/100 |
| Connessioni | |
| female thread M12 | |
Avvisi e consigli
The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces.
The installation on a non-flat mounting surface leads to inadmissible tensions which could cause damages to the insulator.
