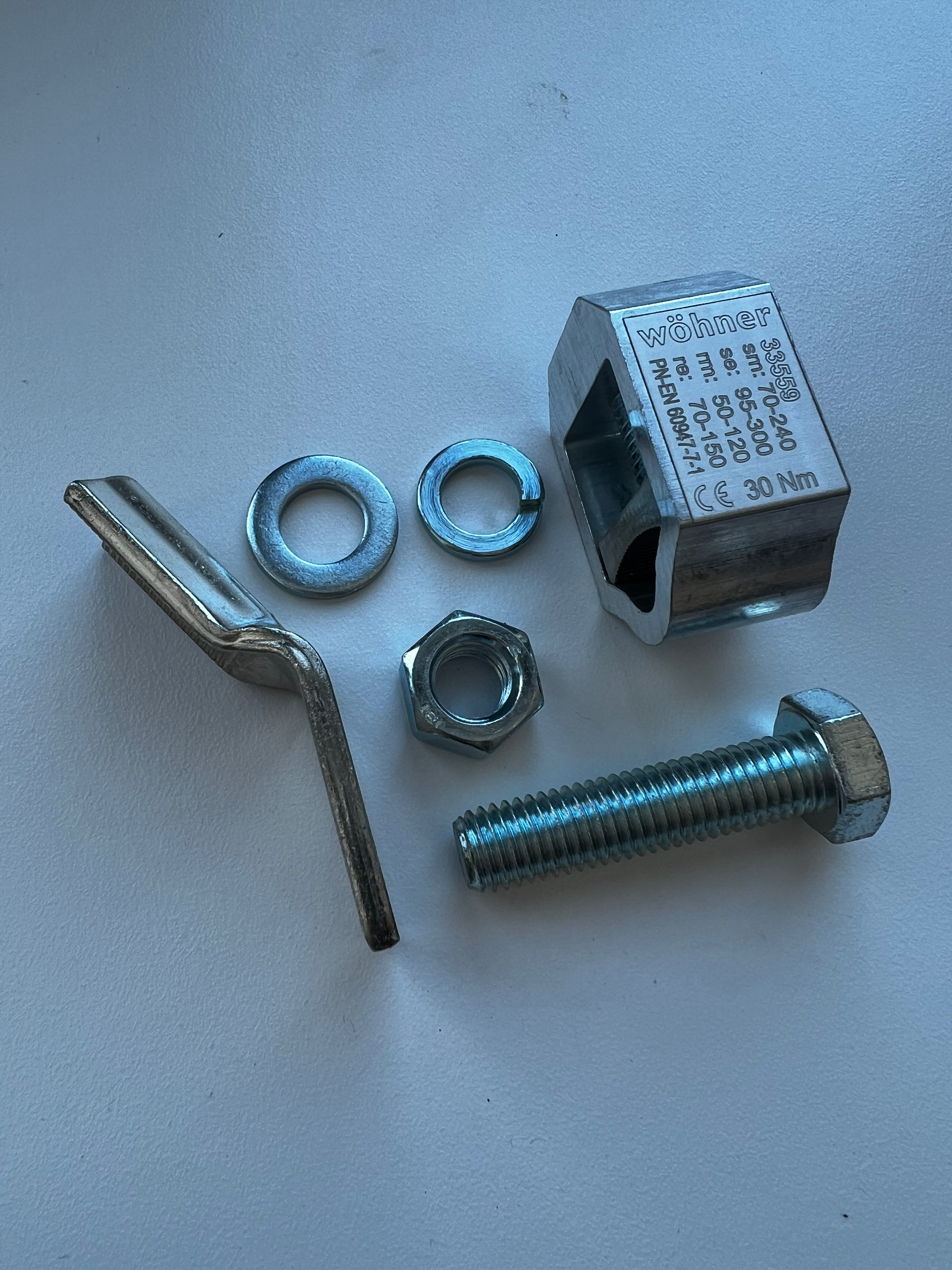

The picture may show a similar product.
Cod.art.: 33567 000A
connection kit
with 1 V-clamp, without cover
terminal body alu, pressure piece brass
for Cu / Al 70 - 300 mm²
e.g. for drilled PE or N bars
Montaggio
185Power
| gruppo di prodotto | 12 |
| sottogruppo prodotto | 70 |
| pz/ conf. | 1 |
| EAN | 4021267335670 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Norme
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| corrente nominale (IEC): | 100 A |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Valori meccanici | |
| L x A x P: | 22 x 33 x 44 |
| peso: | 20.0 kg/100 |
| Connessioni | |
| v-clamp | |
| min. cross-section: | 50 mm² |
| max. cross-section: | 300 mm² |
| re: | 16 - 95 mm² |
| rm: | 16 - 95 mm² |
| se: | 25 - 120 mm² |
| sm: | 25 - 120 mm² |
|
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
| Proprietà materiali | |
| halogen-free: | Yes |
| Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
|
determined by main product |
|
