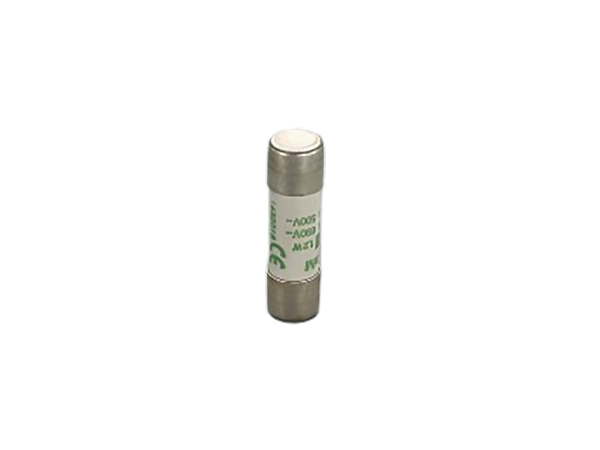

Fusibile cilindrico 50 A

The picture may show a similar product.

Descrizione

Cod.art.: 31196 000

Fusibile cilindrico 50 A

400 V, gG

14 x 51



gruppo di prodotto 22
sottogruppo prodotto 21
pz/ conf. 10
EAN 4021267311964
ECLASS 14.0 27142002
ETIM 5.0 EC002704
ETIM 8.0 EC002704
ETIM 10.0 EC002704

Certificazioni

Norme

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system F

Dati tecnici

grandezza: 14x51
Details IEC
Norme
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system F
Electrical data IEC
corrente nominale (IEC): 50 A
tensione nominale (IEC) AC: 400 V
operation class gG
potere di interruzione AC 120 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 3.0 W.

(The power dissipation at full load would be 4.7 W.)

Valori meccanici
L x A x P: 14 x 14 x 51
peso: 1.9 kg/100
Proprietà materiali
Material: Porcelain
halogen-free: Yes

Links (Prices, CAD data)

Article master data, overviews and prices

Addizionali metalli

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| Riferimenti normativi e tecnici generici

| Data packet EPlan (*.edz)

| Characteristics

| EU declaration of conformity

| Scheda tecnica prodotto (pdf)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
