for UL feeder circuits >250V

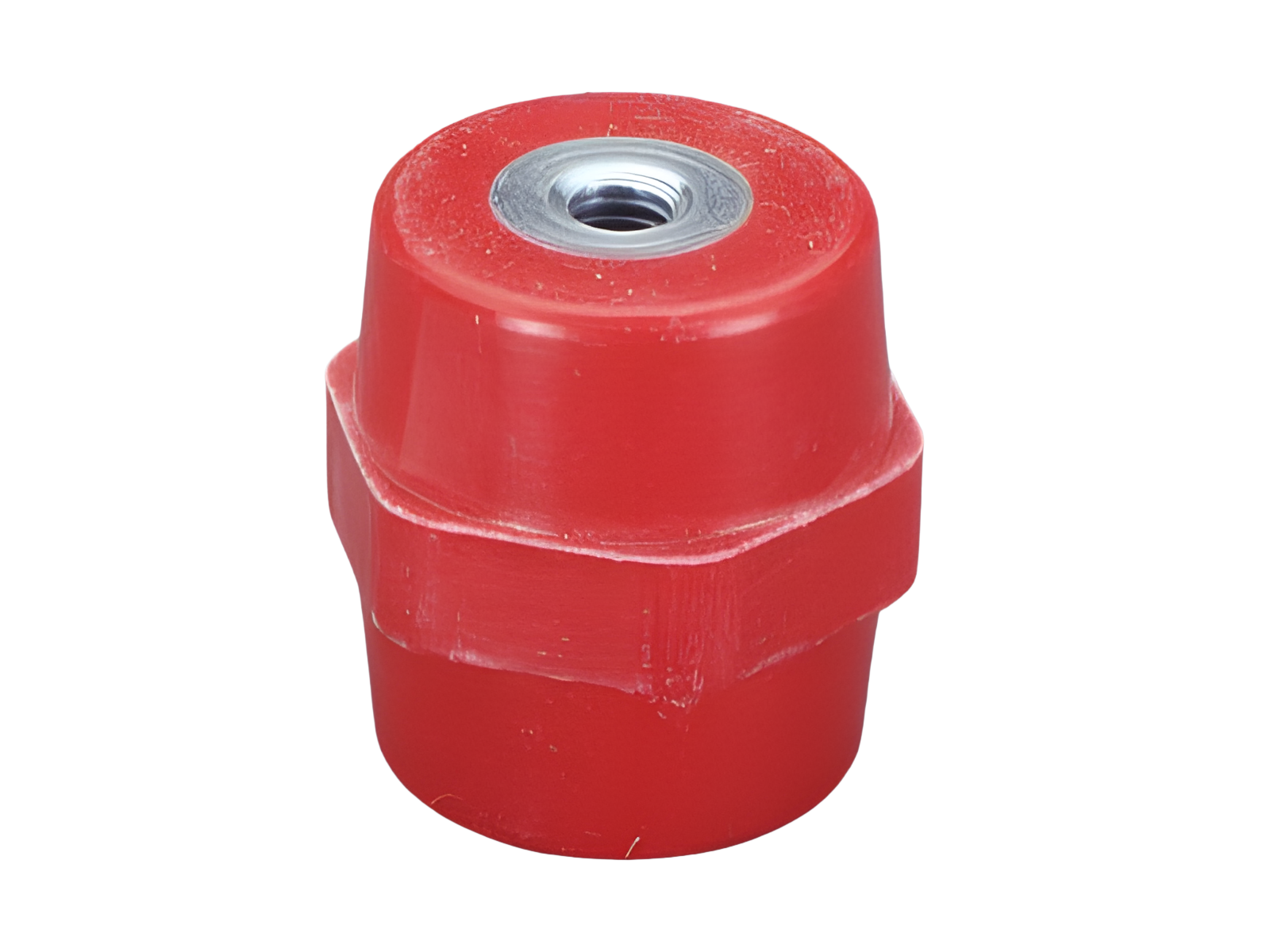

The picture may show a similar product.
Cod.art.: 05789 000
Isolatore
filettatura interna bilaterale, diametro 40
M10 x 60
| gruppo di prodotto | 06 |
| sottogruppo prodotto | 89 |
| pz/ conf. | 20 |
| EAN | 4021267057893 |
| ECLASS 14.0 | 27400607 |
| ETIM 5.0 | EC001166 |
| ETIM 8.0 | EC001166 |
| ETIM 10.0 | EC001166 |
Norme
IEC 61439-1:2020
EAC Type: IS
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| tensione nominale (IEC) AC: | 3000 V |
| tensione nominale (IEC) DC: | 3000 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
I seguenti valori sono stati rilevati tramite prove con determinate condizioni. Prima di progettare vostro impianto chiedere a Wöhner suddette condizioni. |
| min. permitted operation temperature | -40°C |
| max. permitted operation temperature | 130°C |
| Valori meccanici | |
| L x A x P: | 40 x 40 x 60 |
| peso: | 16.2 kg/100 |
| Connessioni | |
| female thread | |
| M10 | |
| Proprietà materiali | |
| halogen-free: | Yes |
|
The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces. |
|
|
no data |
|
