for UL feeder circuits >250V

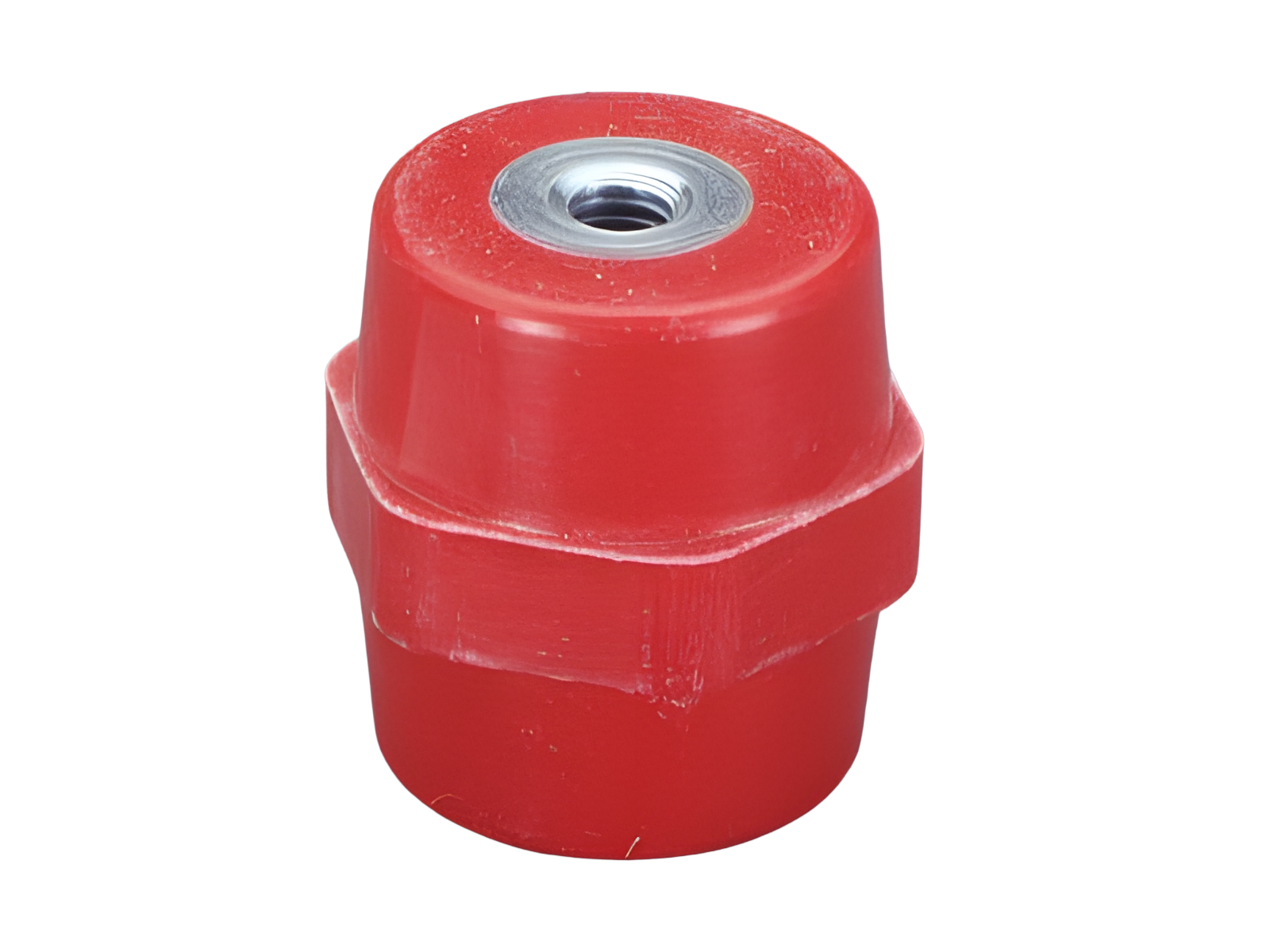

The picture may show a similar product.
Cod.art.: 05786000
Isolatore
filettatura interna bilaterale, diametro 46
M8 x 45
| gruppo di prodotto | 06 |
| sottogruppo prodotto | 89 |
| pz/ conf. | 20 |
| EAN | 4021267057862 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Norme
IEC 61439-1:2020
Omologazione CCC : no certification required
| Details IEC | |
| Norme | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| tensione nominale (IEC) AC: | 2000 V |
| tensione nominale (IEC) DC: | 2000 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Valori meccanici | |
| L x A x P: | 46 x 46 x 45 |
| peso: | 14.8 kg/100 |
| Connessioni | |
| female thread | |
| M8 | |
|
Avvisi e consigli |
The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces. |
| short-circuit withstandability: | no data |
