isolateur (05783)

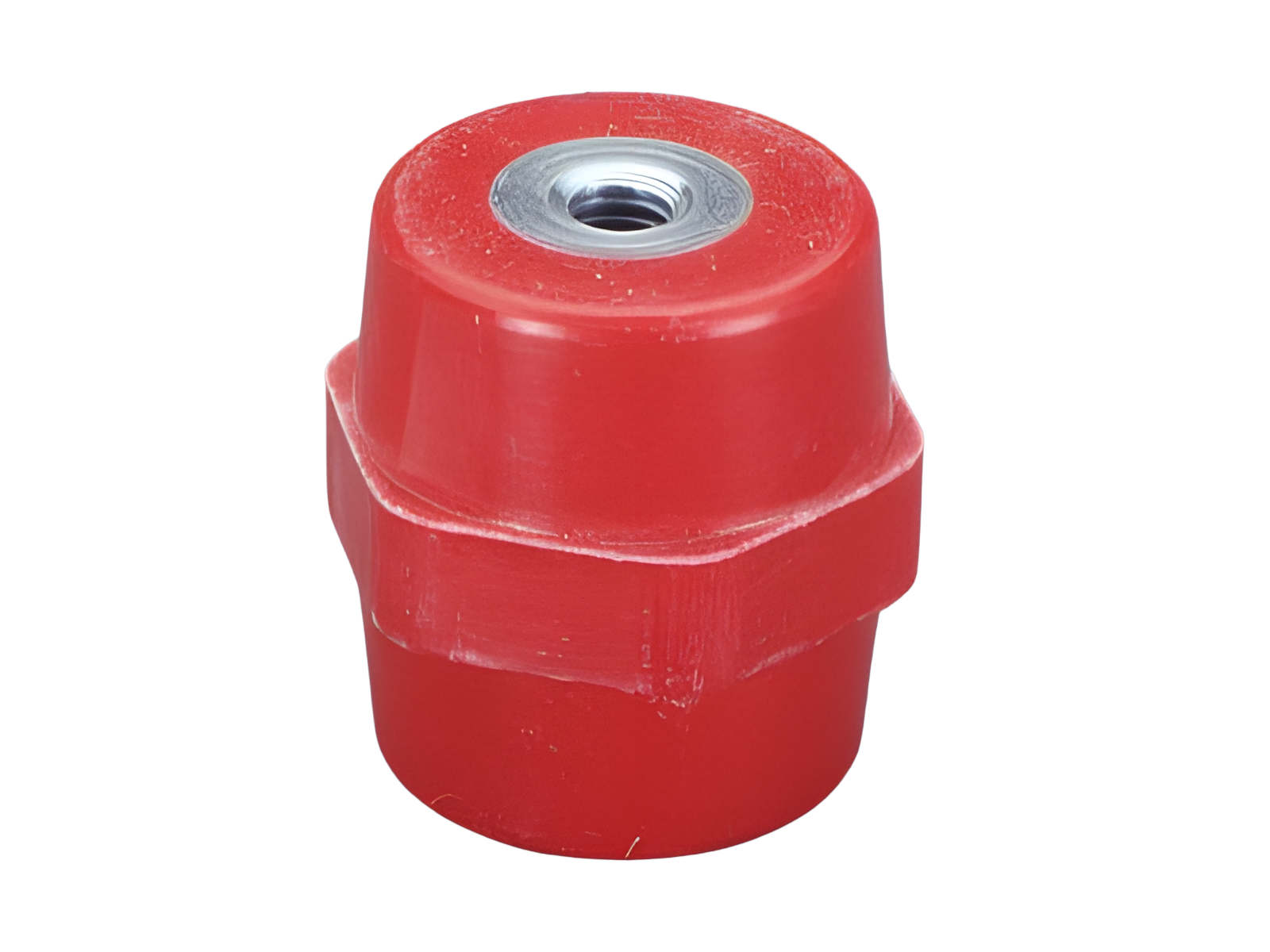

The picture may show a similar product.

Description

Référence 05783000

isolateur

avec filetage interne des deux côtés, longueur sur plat 40

M8 x 40

Groupe de produits 06
Sous-groupe 89
Dimensions de l'emballage 20
EAN 4021267057831
ECLASS 6.1 27400607
ECLASS 7.1 27400607
ETIM 4.0 EC001166
ETIM 5.0 EC001166

Homologations

Normes

IEC 61439-1:2020

Homologation CCC: no certification required

Données techniques

Details IEC
Normes
IEC 61439-1:2020
Electrical data IEC
Tension assignée (IEC) CA: 2000 V
Tension assignée (IEC) CC: 2000 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Charactéristiques mécaniques
L x H x P: 40 x 40 x 40
Poids: 10,2 kg/100
Points de raccordement
female thread
M8

Application notes

Conseils

The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces.
The installation on a non-flat mounting surface leads to inadmissible tensions which could cause damages to the insulator.

short-circuit withstandability: no data
