for UL feeder circuits >250V

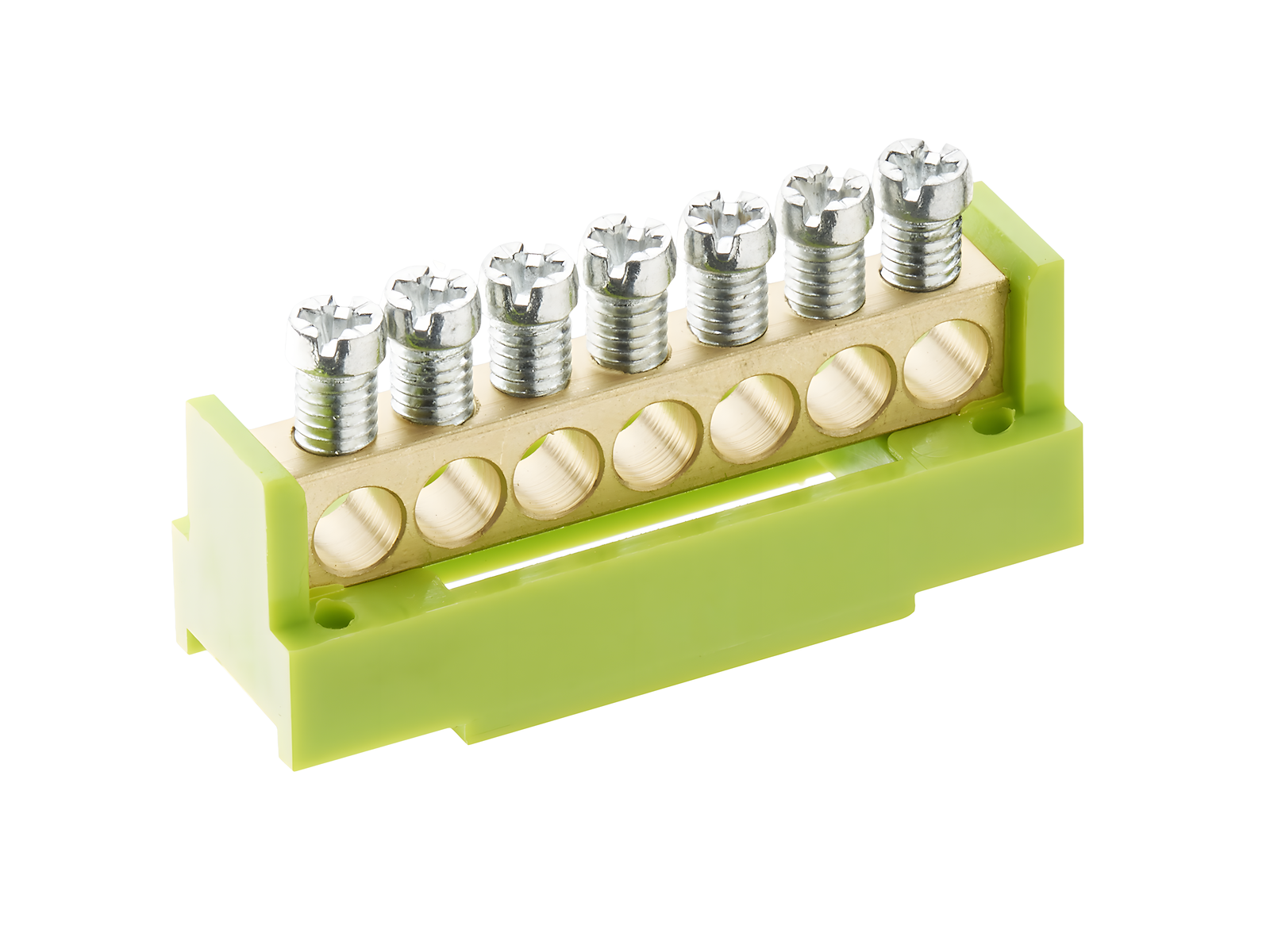

The picture may show a similar product.
Référence 01144000
barrette PE vert/jaune
pour rail 12 x 2
| Groupe de produits | 06 |
| Sous-groupe | 33 |
| Dimensions de l'emballage | 50 |
| EAN | 4021267011444 |
| catalog page | 2020 : 7.21 |
| ECLASS 6.1 | 27141139 |
| ECLASS 7.1 | 27141139 |
| ETIM 4.0 | EC000485 |
| ETIM 5.0 | EC000485 |
Normes
IEC 60664-1:2007
Approbations
EAC
EAC Type: AC-P
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
| IEC 60664-1:2007 |
| Electrical data IEC | |
| Courant assigné (IEC): | 63 A |
| Tension assignée (IEC) CA: | 400 V |
| rated isolation voltage Ui AC: | 500 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Charactéristiques mécaniques | |
| L x H x P: | 15 x 55 x 20 |
| Poids: | 2,7 kg/100 |
