seccionador con fusibles, 3 polos (33500)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 33500 000

QUADRON®60Classic Speed

seccionador con fusibles, 3 polos

borne-brida, conexión inferior

talla 00

double-breaking

operator independent switching (snap-action mechanism)

para barras 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas

sistema

60Classic

ventajas del producto

With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Can be locked in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch).
Mains switch only in combination with AC-23A/B

CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat rails

Compact dimensions (106mm wide)

grupo de producto 15
subgrupo 20
embalaje 1
EAN 4021267335007
ECLASS 6.1 27371401
ECLASS 7.1 27371401
ETIM 4.0 EC001040
ETIM 5.0 EC001040

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

homologaciónes

IEC (CB) , VDE , CCC

tipo: QCS-NH00

CCC certificate: 2010010302392782

Datos técnicos

para fusibles de tamaño: NH 000, NH 00
fusibles según norma: IEC / HD 60269-2
potencia disipada del fusible permitida: 10 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
datos electricos IEC
intensidad de corriente nominal (IEC): 125 A
tensión nominal (IEC) AC: 690 V
tensión nominal de aislamiento Ui AC: 800 V
tensión de pico Uimp: 8 kV
Utilisation category AC (IEC 60947-3) : AC-23B (690V/125A)
AC-23A (500V/125A)
AC-22A (690V/125A)
Utilisation category DC (IEC 60947-3) : DC specifications: 2 current paths (L1,L3) in series
DC-22B (220 V / 125 A)
DC-21B (100 V / 200 A)
corriente de cortocircuito condicional con fusibles (AC): 50 kA / 690 V (125A)
aprobado con fusibles de característica: gG

disipación de potencia del articulo:

The power dissipation at a typical load of 80 % results to 18,6 W.

(The power dissipation at full load would be 29,0 W.)

Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals.
When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed.
datos mecánicos
An x A x P: 106 x 200 x 128
peso: 219,0 kg/100
Polaridad: 3 polos
para barras: 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas
puntos de apriete
cage clamp connection
screw drive: S4
wire stripping: 20 mm
min. cross-section: 1,5 mm²
max. cross-section: 70 mm²
re: 1.5 - 10 mm²
f: 1.5 - 70 mm²
f + AE: 1.5 - 70 mm²
(f + AE may not fit with max. cross-section)
Md min.: 5,0 Nm
Md max.: 6,0 Nm
Not suitable for aluminium cables !
Espacio de apriete: 13x13
lam. Cu width: 9 - 13 mm
lam. Cu thickness: 1 - 10 mm
number of lam. Cu: 1

Application notes

Not suitable for aluminium cables !
potencia disipada del fusible permitida: 10 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accesorios

connection accessories

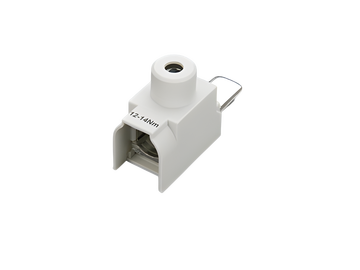

33914 000
borne de conexión de 120 mm²
conexión frontal
para: QCS-NH00, QCS-160
Mas

33915 000
conector para cable auxiliar, para borne-brida
conductor plano EN 61210  6,3 x 0,8
para: QCB-NH00, QCS-NH00, QCS-160
Mas

further accessories

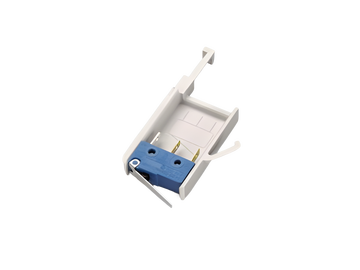

33908 000
interruptor de señalización para controlar el estado de conmutación
conmutador 250 V AC / 5 A, 30 V DC / 4 A
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mas
