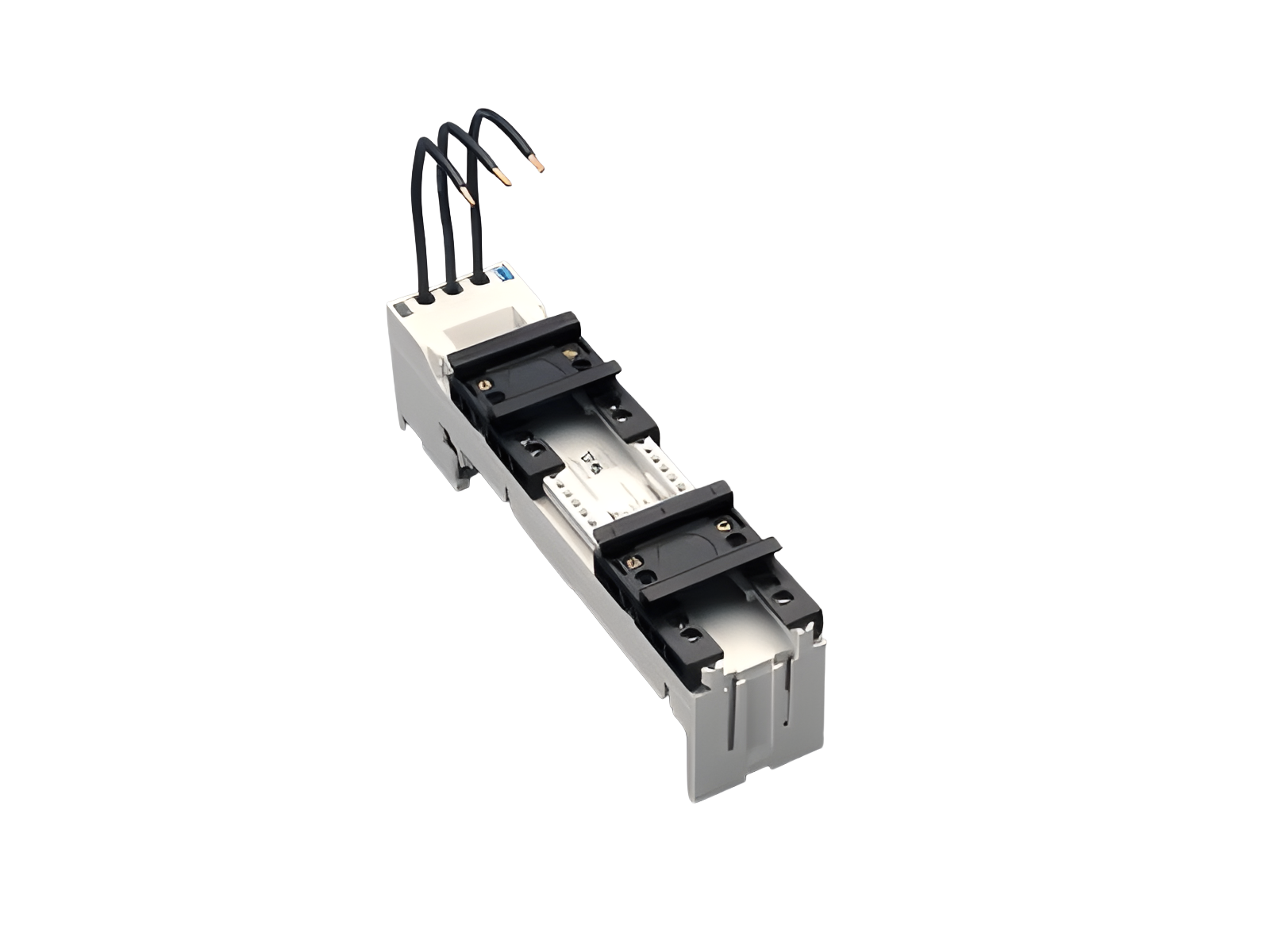

La imagen puede mostrar un producto similar.
Part No.: 32429000
EQUES®60Classic
adaptador para embarrado de 16 A
para el arrancador directo Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, Schneider Electric GV2 con bornes elásticos
45 x 200, con cables 14 AWG (2,5 mm²)
para barras 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas
sistema
60Classic
ventajas del producto
Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.
For switching devices with spring-loaded terminals
| grupo de producto | 05 |
| subgrupo | 21 |
| embalaje | 4 |
| EAN | 4021267324292 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Normas
IEC 61439-1:2020
UL 508
homologaciónes
CSA , UL , DNV GL
tipo: EEC6025
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Homologación CCC: no es obligatoria la certificación
| datos IEC | |
| Normas | |
| IEC 61439-1:2020 |
| datos electricos IEC | |
| intensidad de corriente nominal (IEC): | 16 A |
| tensión nominal (IEC) AC: | 690 V |
| tensión nominal de aislamiento Ui AC: | 800 V |
| tensión de pico Uimp: | 6 kV |
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 0,5 W.
(The power dissipation at full load would be 0,8 W.)
| datos UL | |
| Normas | |
| UL 508 |
| datos electricos UL | |
| intensidad de corriente nominal (UL): | 12 A |
| tensión nominal (UL) AC: | 600 V |
| frecuencia nominal (UL): | 50 / 60 Hz |
| datos mecánicos | |
| An x A x P: | 45 x 200 x 63 |
| peso: | 31,0 kg/100 |
| Polaridad: | 3 polos |
| para barras: | 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas |
| puntos de apriete | |
| with leads | |
| AWG14 (2,5 mm²) | |
| wire stripping: | 9 mm |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
Notas |
For compact mounting of complete motor circuits with commercially available switchgear and safe mechanical and electrical connection to the busbar system. |
| short-circuit withstandability: | the short-circuit capacity of the combination of adapter and motor starter depends on the motor starter |
