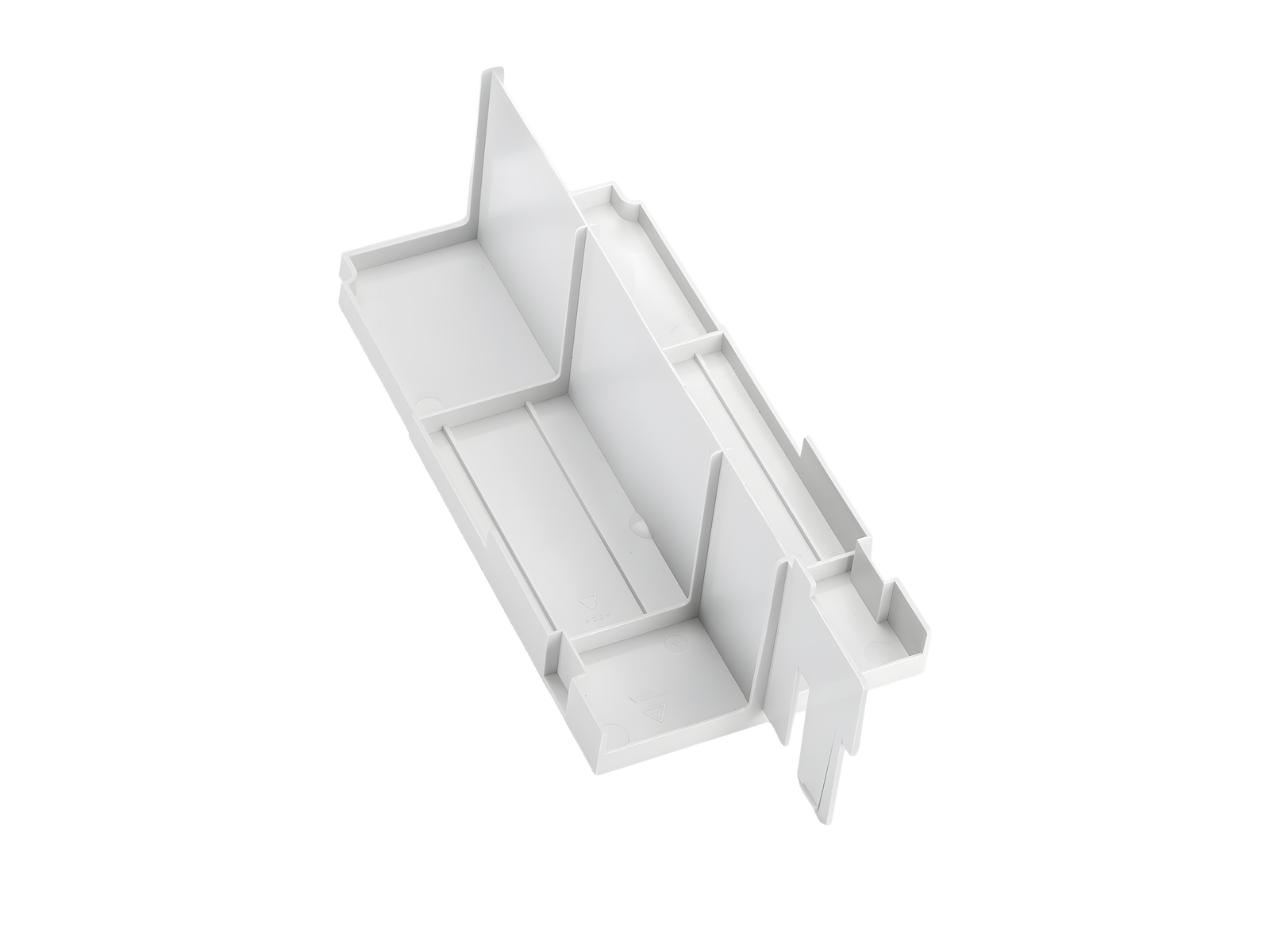

tapa posterior para cubierta del área de conexión (33647)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 33647000A

tapa posterior para cubierta del área de conexión

talla 1-3

sistema

185Power

grupo de producto 18
subgrupo 70
embalaje 1
EAN 4021267336479
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
datos mecánicos
peso: 16.0 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Se utiliza para

33630000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 1
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33638000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 2
con control de fusibles
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33633000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 2
conexión superior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33636000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 1
con control de fusibles
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33631000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 1
conexión superior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33640000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 3
con control de fusibles
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33634000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 3
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33632000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 2
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33635000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 3
conexión superior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas
