interruptor de señalización (33642)

La imagen puede mostrar un producto similar.

Descripción

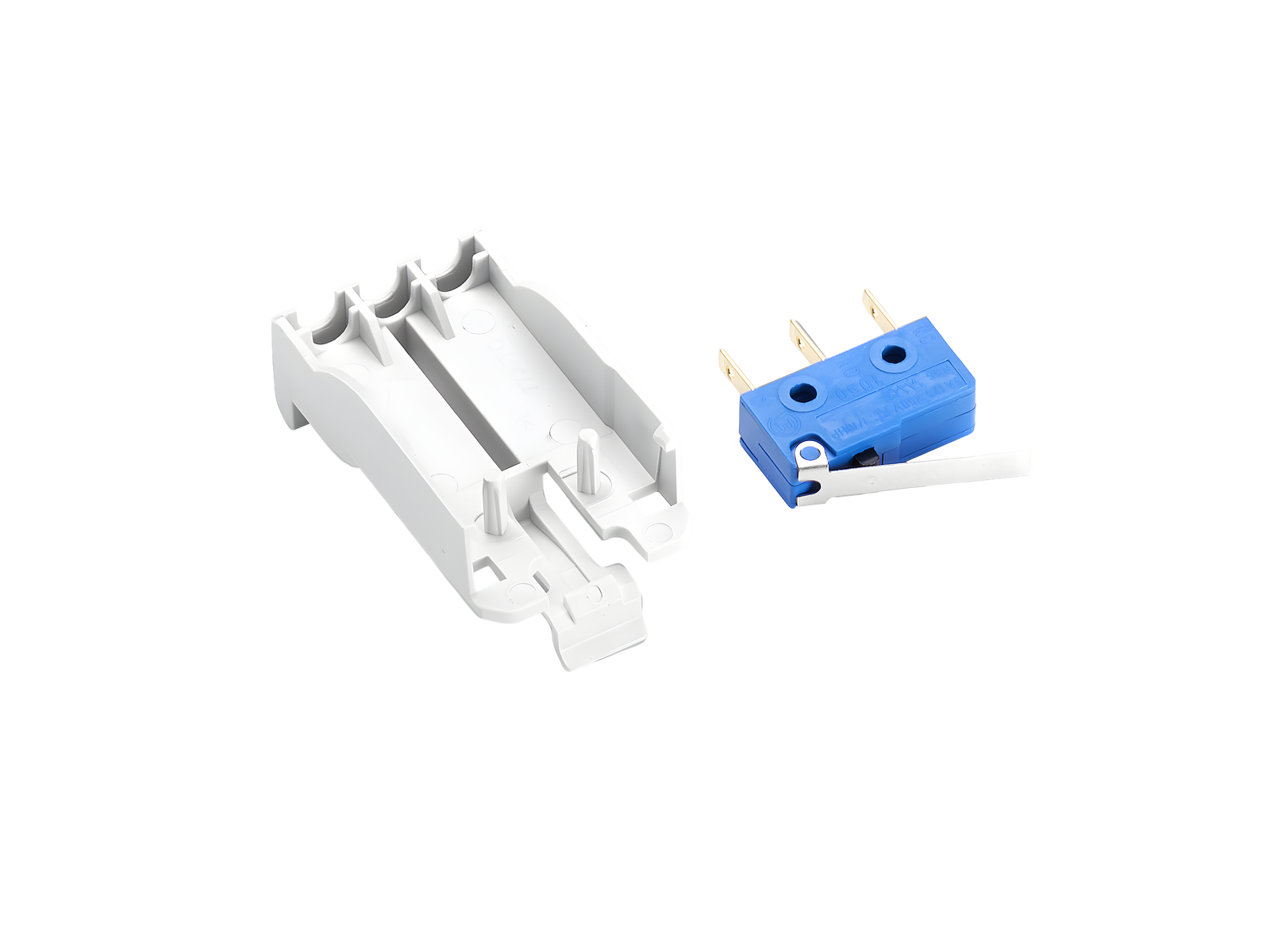

Part No.: 33642000A

interruptor de señalización

conmutador 250 V AC / 5 A, 30 V DC / 4 A

QUADRON®185Power Speed talla 00, 1, 2, 3

sistema

185Power

grupo de producto 18
subgrupo 70
embalaje 1
EAN 4021267336424
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002936
ETIM 5.0 EC002936

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

datos eléctricos

disipación de potencia del articulo:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

datos mecánicos
peso: 2.9 kg/100

connection for flat plug DIN 46244-A, 2.8 x 0.5 mm

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Se utiliza para

33630000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 1
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
