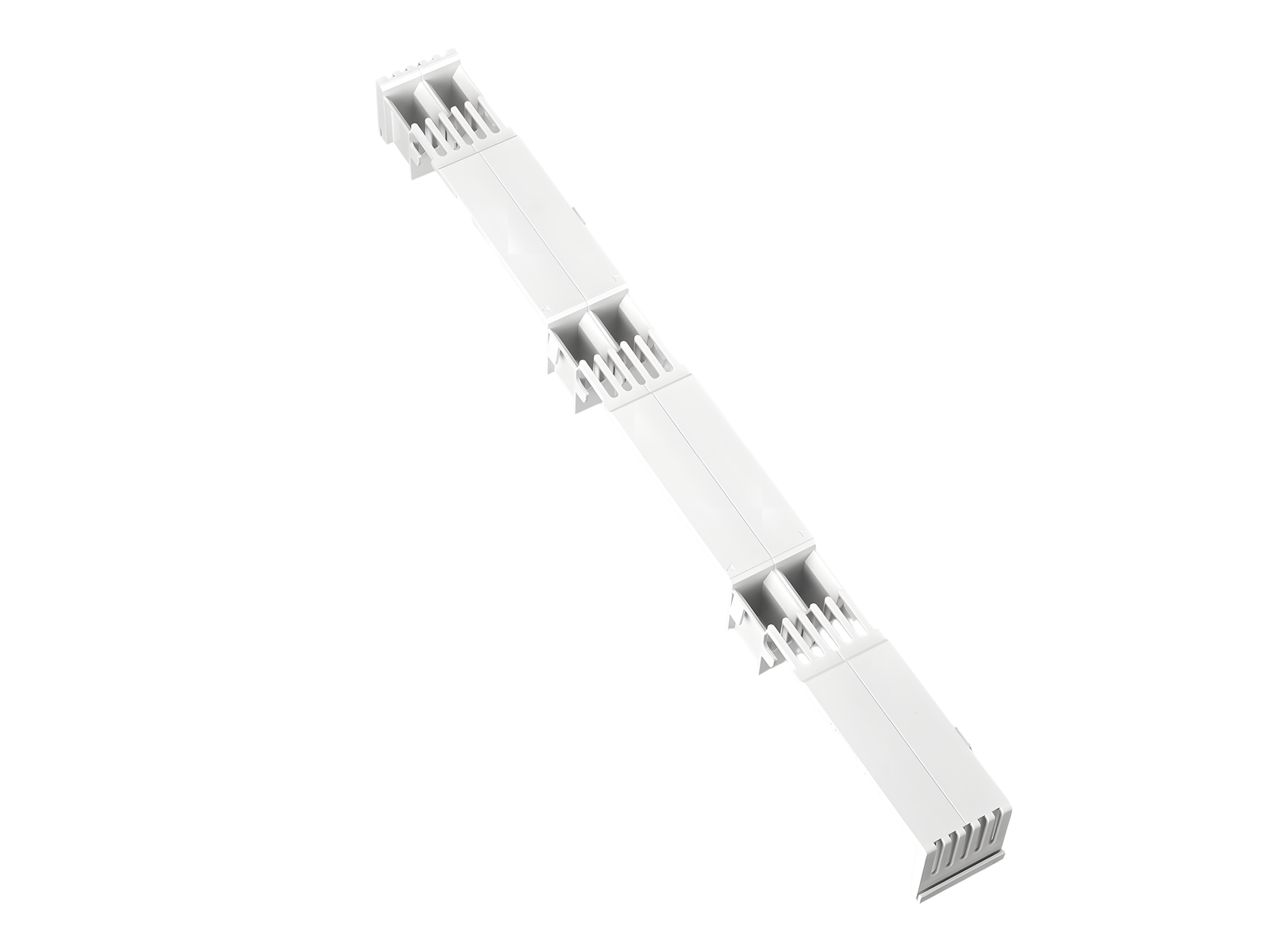

La imagen puede mostrar un producto similar.
Part No.: 01433000A
CrossLink®185Power
módulo de tapa de protección contra contacto directo CrossLink®
50 mm de anchura
50 x 540
para barras 30, 40, 60, 80, 100, 120 x 10
sistema
185Power
| grupo de producto | 06 |
| subgrupo | 27 |
| embalaje | 8 |
| EAN | 4021267014339 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Normas
IEC 61439-1:2020
UL 508
homologaciónes
UL
for UL feeder circuits >250V
tipo: CL185-A50
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
Homologación CCC: no es obligatoria la certificación
| datos IEC | |
| Normas | |
| IEC 61439-1:2020 |
the current carrying capacity of the busbar system is reduced by factor 0,94 when the shock protection module is used, |
| datos UL | |
| Normas | |
| UL 508 |
| for UL feeder circuits >250V |
| datos mecánicos | |
| An x A x P: | 50 x 556 x 49 |
| peso: | 16.0 kg/100 |
| para barras: | 30, 40, 60, 80, 100, 120 x 10 |
| grado de protección frontal: | IP20 |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
| for UL feeder circuits >250V | |
