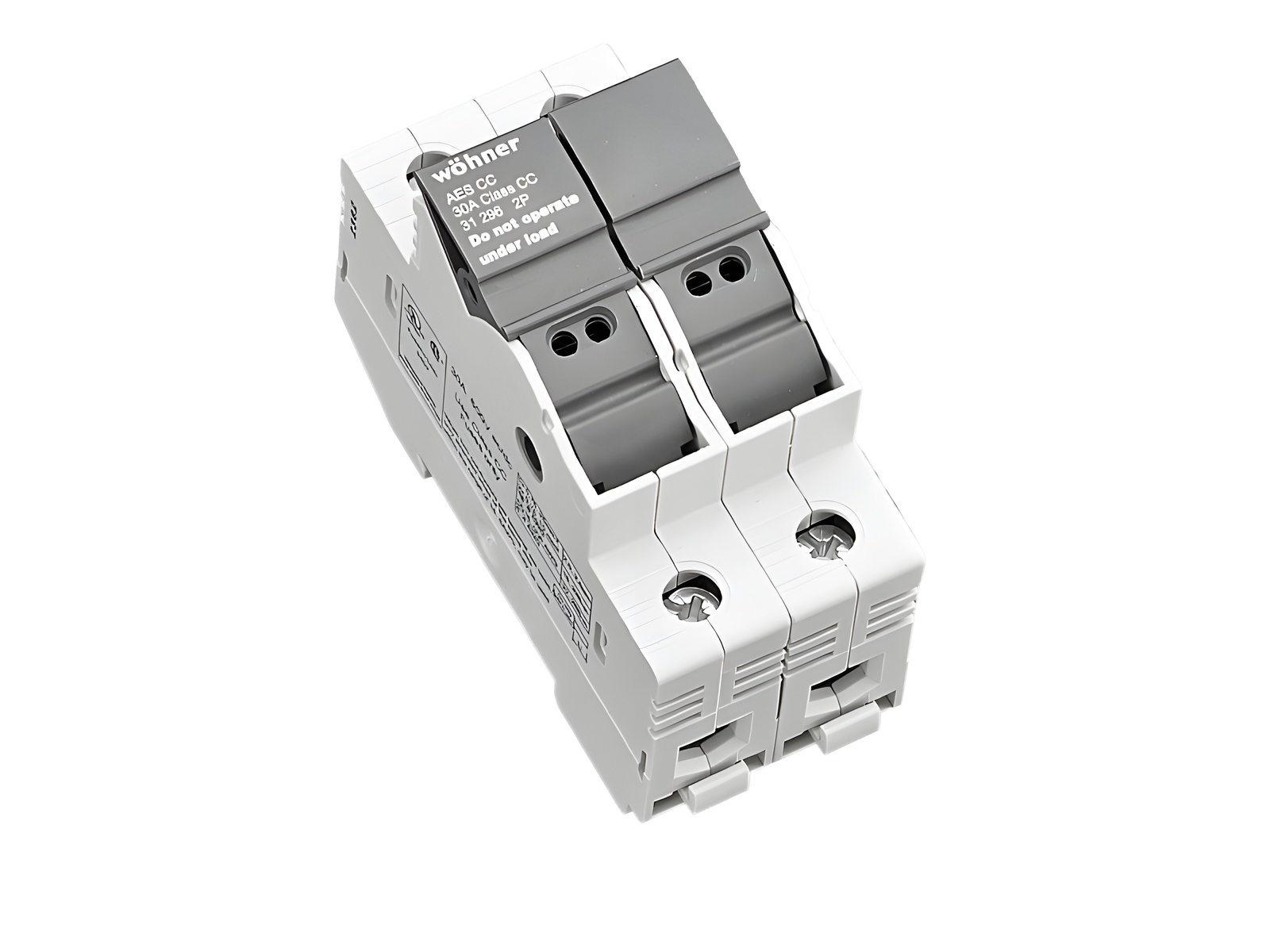

soporte para fusibles cilíndricos (31296)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 31296000

AMBUS®Panel

soporte para fusibles cilíndricos

Class CC / 2P

30 A / 600 V

for mounting rail

sistema

Panel

ventajas del producto

large clamping range, also for two identical conductors (adjacent)
holder for label

grupo de producto 17
subgrupo 07
embalaje 6
EAN 4021267312961
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002705
ETIM 5.0 EC002705

Homologaciónes

Normas

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J

UL 4248-1

UL 4248-4

homologaciónes

CSA , UL , CCC

for UL feeder circuits >250V

tipo: AESCC

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org

CCC certificate: 21107299296

Datos técnicos

para fusibles de tamaño: Class CC
fusibles según norma: UL 248-4
potencia disipada del fusible permitida: 4 W
datos IEC
Normas
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J

datos eléctricos

disipación de potencia del articulo:

The power dissipation at a typical load of 80 % results to 0.4 W.

(The power dissipation at full load would be 0.6 W.)

datos UL
Normas
UL 4248-1
UL 4248-4
for UL feeder circuits >250V
suitable for field-installed conductors
datos electricos UL
intensidad de corriente nominal (UL): 30 A
tensión nominal (UL) AC: 600 V
frecuencia nominal (UL): 50 / 60 Hz
tensión nominal (UL) DC: 600 V
SCCR: 200 kA
datos mecánicos
An x A x P: 36 x 81 x 58
peso: 11.3 kg/100
Polaridad: 2 polos
Mounting: for mounting rail
grado de protección: IP20
grado de protección frontal: IP20
puntos de apriete
cage clamp connection
screw drive: PZ2
wire stripping: 11 mm
min. cross-section: 0.75 mm²
max. cross-section: 25 mm²
Md min.: 2.0 Nm
Md max.: 2.5 Nm
Not suitable for aluminium cables !

min. cross-section UL: AWG 18
max. cross-section UL: AWG 4


for applications acc. to IEC / EN :
1 wire :
Cu 0,75 - 25 mm²
2 wires (of same cross-section) :
Cu 0,75 - 10 mm²
flexible cables, directly or with wire-end ferrule
(flexible cables of max. cross-section may not fit when using wire-end ferrule)
Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

for applications acc. to UL / CSA :
only Cu cables acc. to UL 486E 60°C/75°C
1 wire :
AWG 18 - AWG 8, Class B, Md 2,0 -2,5 Nm / 18 - 22 lb.in.
AWG 6 - AWG 4, Class C, Md 2,5 - 3,0 Nm / 22 - 26 lb.in.
2 wires (of identical cross-section) :
AWG 18 - AWG 8, Class B, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.
AWG 6, Class C, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

Application notes

Not suitable for aluminium cables !
potencia disipada del fusible permitida: 4 W
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
