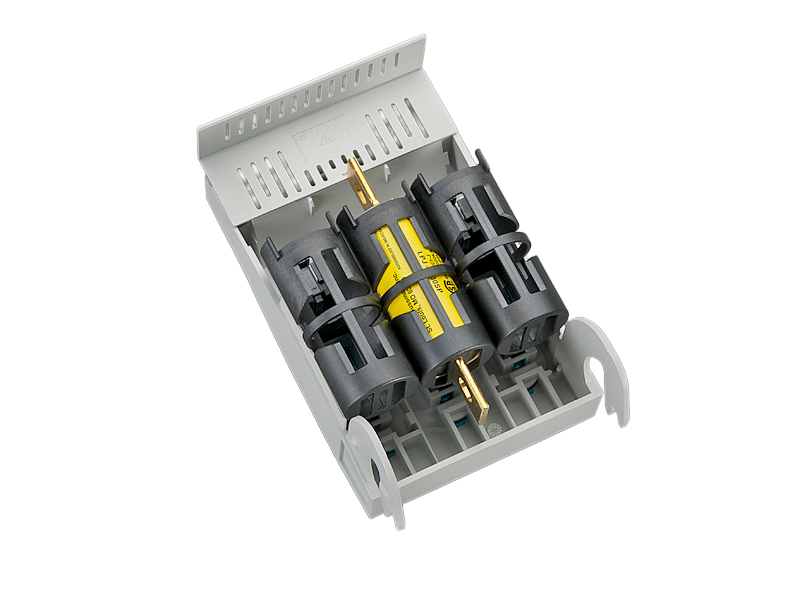

La imagen puede mostrar un producto similar.
Part No.: 33402 000
QUADRON 60Classic
portafusibles sobre embarrado, Class J
para fusibles Class J de 70-100 A (29 x 118)
3P, con borne-brida
Conexión cables por arriba o por abajo
para barras 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas
sistema
60Classic
ventajas del producto
the product is based on the UL approval in category IZLT2 also listed in category NMTR (file E123577)
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected Simple and safe clicking into place and making contact
Safe connection through shock protection split into 2
Busbar supports for flat busbars can be mounted above each other
| grupo de producto | 16 |
| subgrupo | 27 |
| embalaje | 1 |
| EAN | 4021267334024 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002705 |
| ETIM 8.0 | EC002705 |
| ETIM 10.0 | EC002705 |
Normas
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
homologaciónes
UL
for UL feeder circuits >250V
tipo: QCC-ClassJ100A
EAC Type: AJC
UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
UL file 2: E123577, UL category+ (for USA): NMTR https://www.ul.com
UL file: E230163, UL category (for Canada): IZLT8 https://www.ul.com
UL file 2: E123577, UL category+ (for Canada): NMTR7 https://www.ul.com
| para fusibles de tamaño: | Class J 100 A |
| fusibles según norma: | UL 248-8 |
| potencia disipada del fusible permitida: | 10 W |
| datos IEC | |
| Normas | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
datos eléctricos
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 5.8 W.
(The power dissipation at full load would be 9.0 W.)
| datos adicionales IEC | |
|
Los siguientes valores han sido verificados con los test bajo ciertas condiciones. Por favor, pregunte a Wöhner por estas condiciones antes de diseñar su cuadro. |
| min. permitted operation temperature | -40°C |
| do not use any fuse links with sharp-edged contact blades | |
| System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| datos UL | |
| Normas | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| datos electricos UL | |
| intensidad de corriente nominal (UL): | 100 A |
| tensión nominal (UL) AC: | 600 V |
| frecuencia nominal (UL): | 50 / 60 Hz |
| tensión nominal (UL) DC: | 600 V |
| for wires UL: | Cu 75°C |
| SCCR: | 200 kA |
| datos mecánicos | |
| An x A x P: | 106 x 200 x 135 |
| peso: | 129.0 kg/100 |
| Polaridad: | 3 polos |
| para barras: | 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
| puntos de apriete | |
| cage clamp connection | |
| screw drive: | S4 |
| wire stripping: | 20 mm |
| Md min.: | 5.0 Nm |
| Md max.: | 6.0 Nm |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 14 |
| max. cross-section UL: | AWG 2/0 |
| torque (UL): | 45-53 lb-in |
| for wires UL: | Cu 75°C |
|
suitable conductors: |
|
| cualidad de materiales | |
| halogen-free: | No |
| Not suitable for aluminium cables ! | |
| potencia disipada del fusible permitida: | 10 W |
| for UL feeder circuits >250V | |
