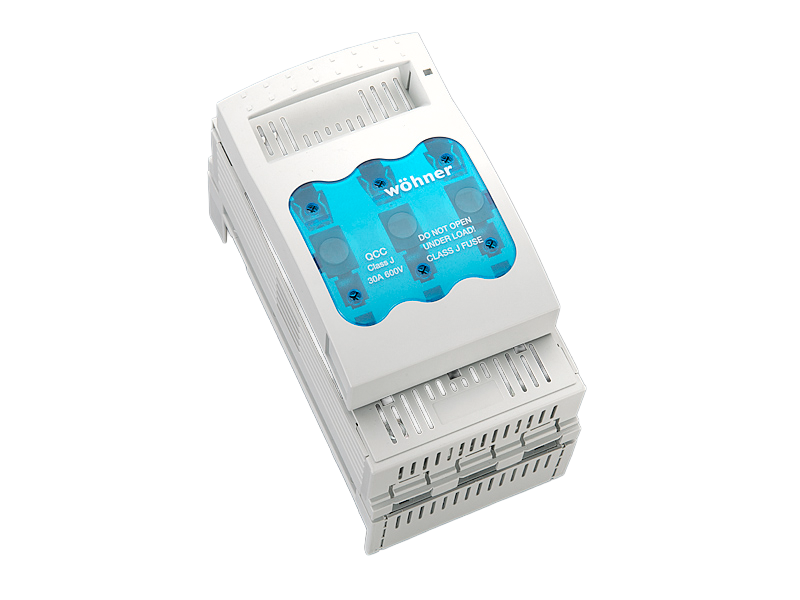

La imagen puede mostrar un producto similar.
Part No.: 33421000

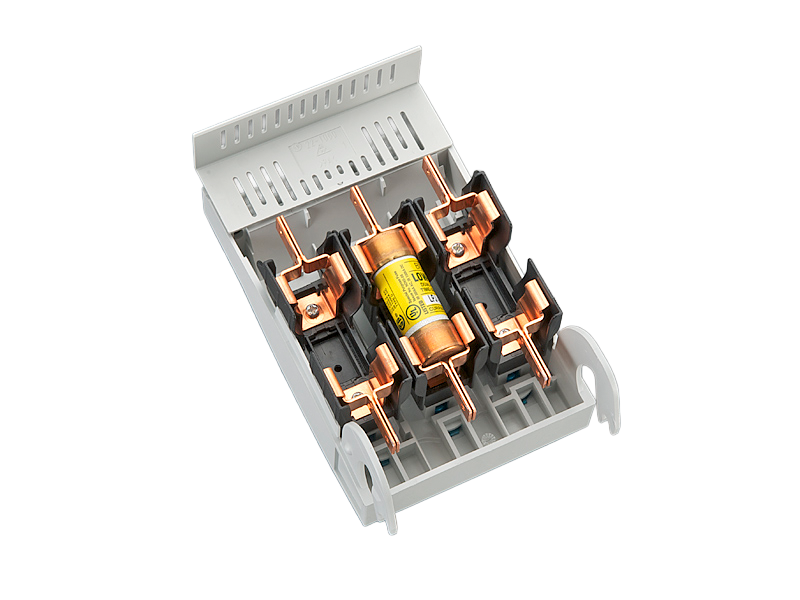

QUADRON®60Classic
portafusibles sobre embarrado, Class J, conexión superior / inferior
para fusibles Class J de 1 - 30 A (21x57)
3P, con borne-brida
Conexión cables por arriba o por abajo
para barras 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas
sistema
60Classic
ventajas del producto
the product is based on the UL approval in category IZLT2 also listed in category NMTR (file E123577)
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
Busbar supports for flat busbars can be mounted above each other
| grupo de producto | 16 |
| subgrupo | 21 |
| embalaje | 1 |
| EAN | 4021267334215 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
Normas
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
homologaciónes
UL
for UL feeder circuits >250V
tipo: QCC-ClassJ30A
UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
UL file 2: E123577, UL category+ (for USA): NMTR https://www.ul.com
UL file: E230163, UL category (for Canada): IZLT8 https://www.ul.com
UL file 2: E123577, UL category+ (for Canada): NMTR7 https://www.ul.com
| para fusibles de tamaño: | Class J 30 A |
| fusibles según norma: | UL 248-8 |
| potencia disipada del fusible permitida: | 5 W |
| datos IEC | |
| Normas | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
datos eléctricos
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 1.3 W.
(The power dissipation at full load would be 2.1 W.)
| System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| datos UL | |
| Normas | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| datos electricos UL | |
| intensidad de corriente nominal (UL): | 30 A |
| tensión nominal (UL) AC: | 600 V |
| frecuencia nominal (UL): | 50 / 60 Hz |
| tensión nominal (UL) DC: | 600 V |
| for wires UL: | Cu 75°C |
| SCCR: | 200 kA |
| datos mecánicos | |
| An x A x P: | 106 x 200 x 135 |
| peso: | 138.0 kg/100 |
| Polaridad: | 3 polos |
| para barras: | 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
| puntos de apriete | |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 14 |
| max. cross-section UL: | AWG 2/0 |
| for wires UL: | Cu 75°C |
|
AWG 12 - AWG 2/0 stranded, equivalent 3,3 - 67,4 mm² |
|
| Not suitable for aluminium cables ! | |
| potencia disipada del fusible permitida: | 5 W |
| for UL feeder circuits >250V | |
