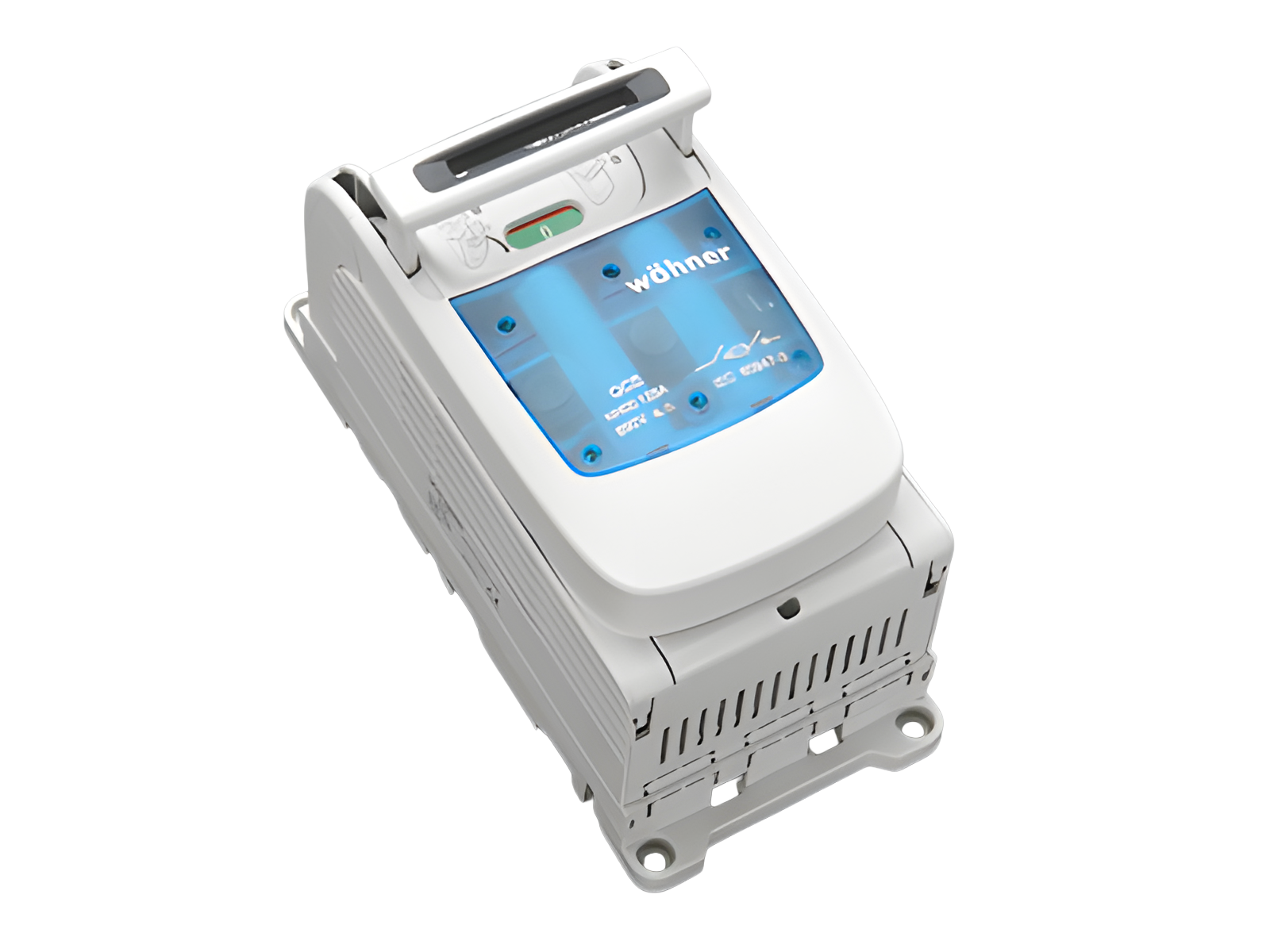

La imagen puede mostrar un producto similar.
Part No.: 33502000
QUADRON®Panel Speed
seccionador con fusibles, 3 polos
borne-brida
talla 00
double-breaking
operator independent switching (snap-action mechanism)
for mounting plate
sistema
Panel
ventajas del producto
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Can be locked in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch)
Mains switch only in combination with AC-23A/B
Compact dimensions (106mm wide)
| grupo de producto | 15 |
| subgrupo | 03 |
| embalaje | 1 |
| EAN | 4021267335021 |
| ECLASS 6.1 | 27371401 |
| ECLASS 7.1 | 27371401 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
homologaciónes
IEC (CB) , VDE , CCC , DNV GL
tipo: QCS-NH00
CCC certificate: 2010010302392782
| para fusibles de tamaño: | NH 000, NH 00 |
| fusibles según norma: | IEC / HD 60269-2 |
| potencia disipada del fusible permitida: | 10 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| datos IEC | |
| Normas | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| datos electricos IEC | |
| intensidad de corriente nominal (IEC): | 125 A |
| tensión nominal (IEC) AC: | 690 V |
| tensión nominal de aislamiento Ui AC: | 800 V |
| tensión de pico Uimp: | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (690V/125A) AC-23A (500V/125A) AC-22A (690V/125A) |
| Utilisation category DC (IEC 60947-3) : | 2 current paths (L1,L3) in series DC-22B (220V/125A) 3 current paths in series DC-22B (440V/63A) |
| corriente de cortocircuito condicional con fusibles (AC): | 50 kA / 690 V (125A) |
| aprobado con fusibles de característica: | gG |
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 16.2 W.
(The power dissipation at full load would be 25.4 W.)
| Fuses gL/gG, size 00, 690V/125A for fuse links IEC 60269-2 / DIN VDE 0636-2 size 00 up to 10W power dissipation | |
| Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
| When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed. | |
| System component: degree of protection IP20 at front as per DIN EN 60529, dependent upon installation in the connection area; shock protection to DIN EN 50274 |
| datos mecánicos | |
| An x A x P: | 106 x 233 x 128 |
| peso: | 208.0 kg/100 |
| Polaridad: | 3 polos |
| Mounting: | for mounting plate |
| puntos de apriete | |
| Not suitable for aluminium cables ! | |
|
Box terminal: |
|
| Not suitable for aluminium cables ! | |
| potencia disipada del fusible permitida: | 10 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
