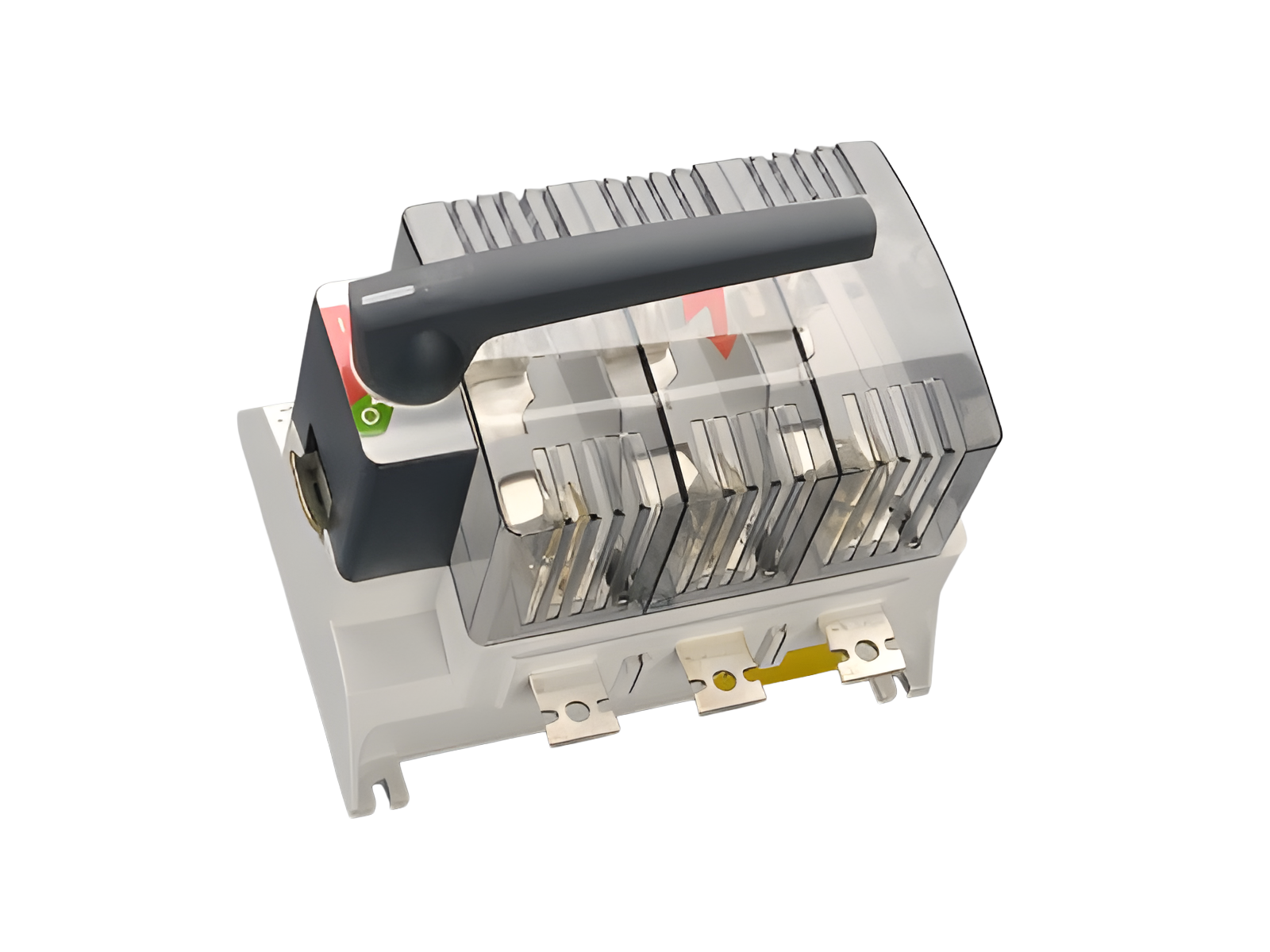

La imagen puede mostrar un producto similar.
Part No.: 33339000
CAPUS®Panel
seccionador con fusibles, 3 polos

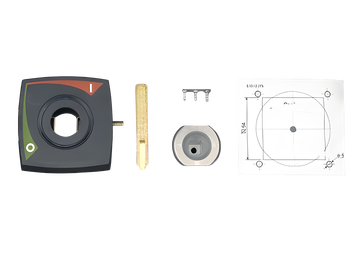

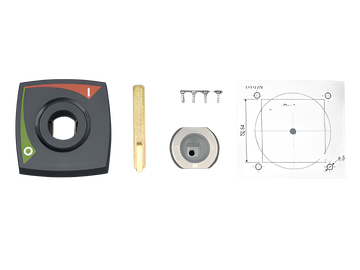

tornillo M10, maneta gris grafito
talla 2
for mounting plate
ERGONFUSE-400
sistema
Panel
ventajas del producto
double-breaking main contacts,
visible separation sections,
user-independent switching,
voltage-free exchange of fuses
assembly and connection material contained in scope of delivery.
| grupo de producto | 15 |
| subgrupo | 09 |
| embalaje | 1 |
| EAN | 4021267333393 |
| ECLASS 6.1 | 27371401 |
| ECLASS 7.1 | 27371401 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
homologaciónes
IEC (CB)
tipo: LTS-F400
| para fusibles de tamaño: | NH 2 |
| fusibles según norma: | IEC / HD 60269-2 |
| potencia disipada del fusible permitida: | 34 W |
| datos IEC | |
| Normas | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| datos electricos IEC | |
| intensidad de corriente nominal (IEC): | 400 A |
| tensión nominal (IEC) AC: | 690 V |
| tensión nominal de aislamiento Ui AC: | 1000 V |
| tensión de pico Uimp: | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (690V) AC-22B (690V) AC-21B (690V) |
| corriente de cortocircuito condicional con fusibles (AC): | 80 kA / 690 V |
| aprobado con fusibles de característica: | gG |
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 69.8 W.
(The power dissipation at full load would be 109.0 W.)
| Mechanical lifespan (switching operations) 7000 | |
| conv. therm. current in housing 400 A, horizontal installation (adjacent poles) encapsulated 504 x 378 x 302 mm 315 A, vertical installation (poles beneath each other) encapsulated 500 x 500 x 300 mm |
|

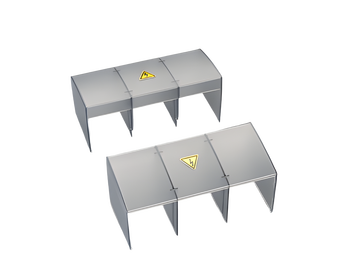

| Shock protection at front with terminal space cover IP20 for fuse links DIN 43620 size 2 up to 34W power dissipation |
| datos mecánicos | |
| An x A x P: | 270 x 238 x 253 |
| peso: | 760.0 kg/100 |
| Polaridad: | 3 polos |
| Mounting: | for mounting plate |
Connection screw (clamps and wedge clamp terminal can be retrofitted),
screw connection
M10, 28Nm ± 10% torque,
clamp connection for lam. Cu
terminal space 21x1-13mm,
8-10Nm torque
wedge clamp connection, single
cross-section 120 - 240mm², s(r), f, f+AE** Cu - Al*, 8-10Nm torque
wedge clamp connection, double
cross-section 2 x 120 - 185mm², s(r), f, f+AE** Cu, 8-10Nm torque
* Aluminium conductors must be prepared before connection in accordance with the pertinent technical recommendations. The connections are to be checked at regular intervals and serviced not later than every 6 months.
** reduction in the max. conductor cross-sections may be required.
| puntos de apriete | |
| Not suitable for aluminium cables ! | |
|
Tornillo M10 : |
|
| Not suitable for aluminium cables ! | |
|
Notas |
When installing a cover, the switch-disconnector on the housing must not be closed, the safety instructions for the Emergency Stop switch must be observed. |
| potencia disipada del fusible permitida: | 34 W |
