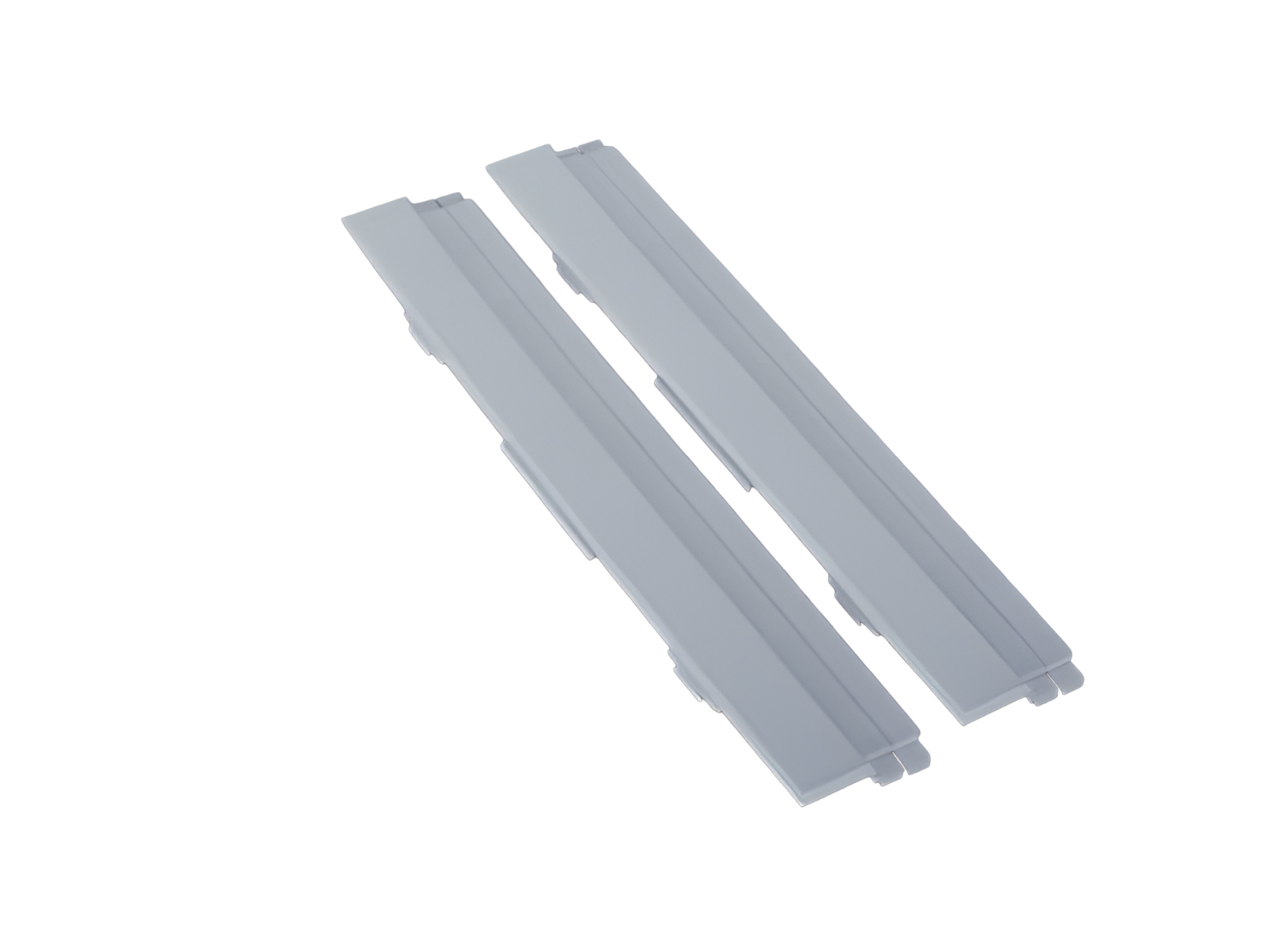

tapa para espacio de reserva (79859)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 79859 000

tapa para espacio de reserva

variable, 36 - 64 x 195, con 2 piezas

sistema

60Classic

grupo de producto 06
subgrupo 27
embalaje 10
EAN 4021267798598
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 61439-1:2020

Homologación CCC: no es obligatoria la certificación

Datos técnicos

datos IEC
Normas
IEC 61439-1:2020
datos mecánicos
An x A x P: 64 x 195 x 10
peso: 3.2 kg/100

variable 36 - 64mm with 2 pieces

Application notes

Can only be used together with cover frame 01 139.

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Se utiliza para

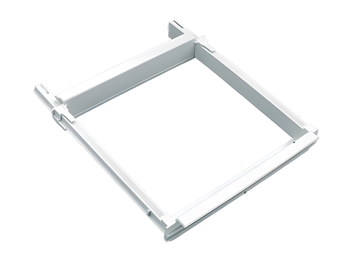

01139 000
marco embellecedor VMS
para las cajas VMS
Mas
