pilot switch (33642)

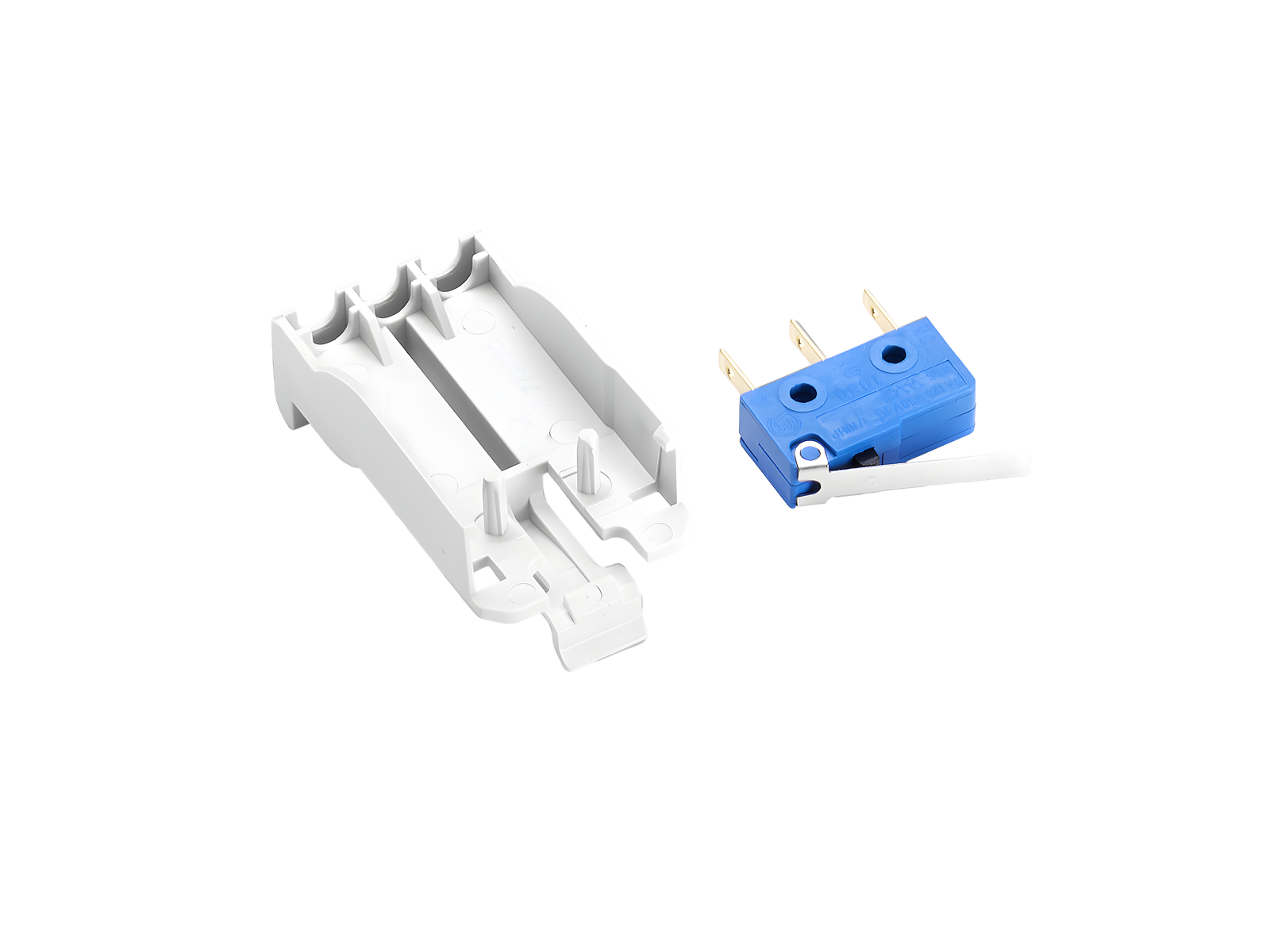

The picture may show a similar product.

Description

Part No.: 33642 000A

pilot switch

changeover 250 V AC / 5 A, 30 V DC / 4 A

QUADRON®185Power Speed size 00, 1, 2, 3

System

185Power

Product group 18
Subgroup 70
pack size 1
EAN 4021267336424
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002936
ETIM 5.0 EC002936

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 2.9 kg/100

connection for flat plug DIN 46244-A, 2.8 x 0.5 mm

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33630 000A
QUADRON®185Power Speed
NH in-line switch-disconnector fuse size 1
connection bottom M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33615 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
screw connection
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33614 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
CrossLink connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33638 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 2
with fuse monitoring
connection bottom M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33633 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 2
connection top M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33636 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 1
with fuse monitoring
connection bottom M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33631 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 1
connection top M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
phase-out product
More

33640 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 3
with fuse monitoring
connection bottom M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33635 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 3
connection top M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33632 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 2
connection bottom M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33634 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 3
connection bottom M12
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33611 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
screw connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33617 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
screw connection
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33622 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
CrossLink connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33621 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
screw connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33627 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
tall version, outgoing terminals at the top, screw connection
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33625 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
screw connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33623 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
screw connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33626 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
CrossLink connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33612 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
CrossLink connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33613 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
screw connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33610 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
CrossLink connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33624 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
CrossLink connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33620 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
CrossLink connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33616 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
CrossLink connection
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More
