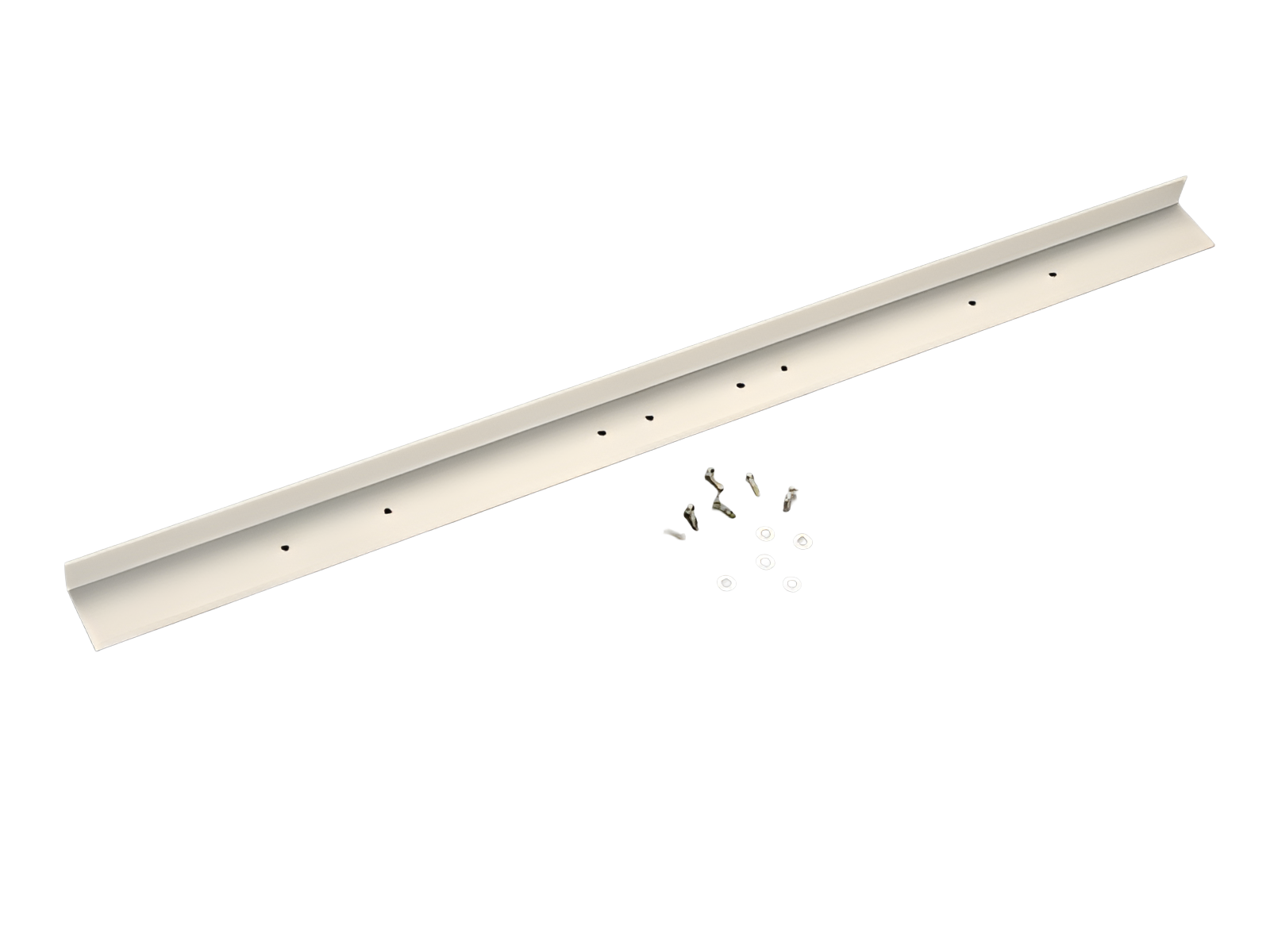

lateral bearing strip (33758)

The picture may show a similar product.

Description

Part No.: 33758000A

lateral bearing strip

for front covers

size 00 - 3

System

185Power

Product group	12
Subgroup	70

pack size	2
EAN	4021267337582

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	10.7 kg/100

Application notes


short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33700000A
QUADRON^®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33731000A
QUADRON^®185Power
double in-line fuse disconnector 1250 A
3-pole switchable
screw M12, incl. terminal compartment cover
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33630000A
