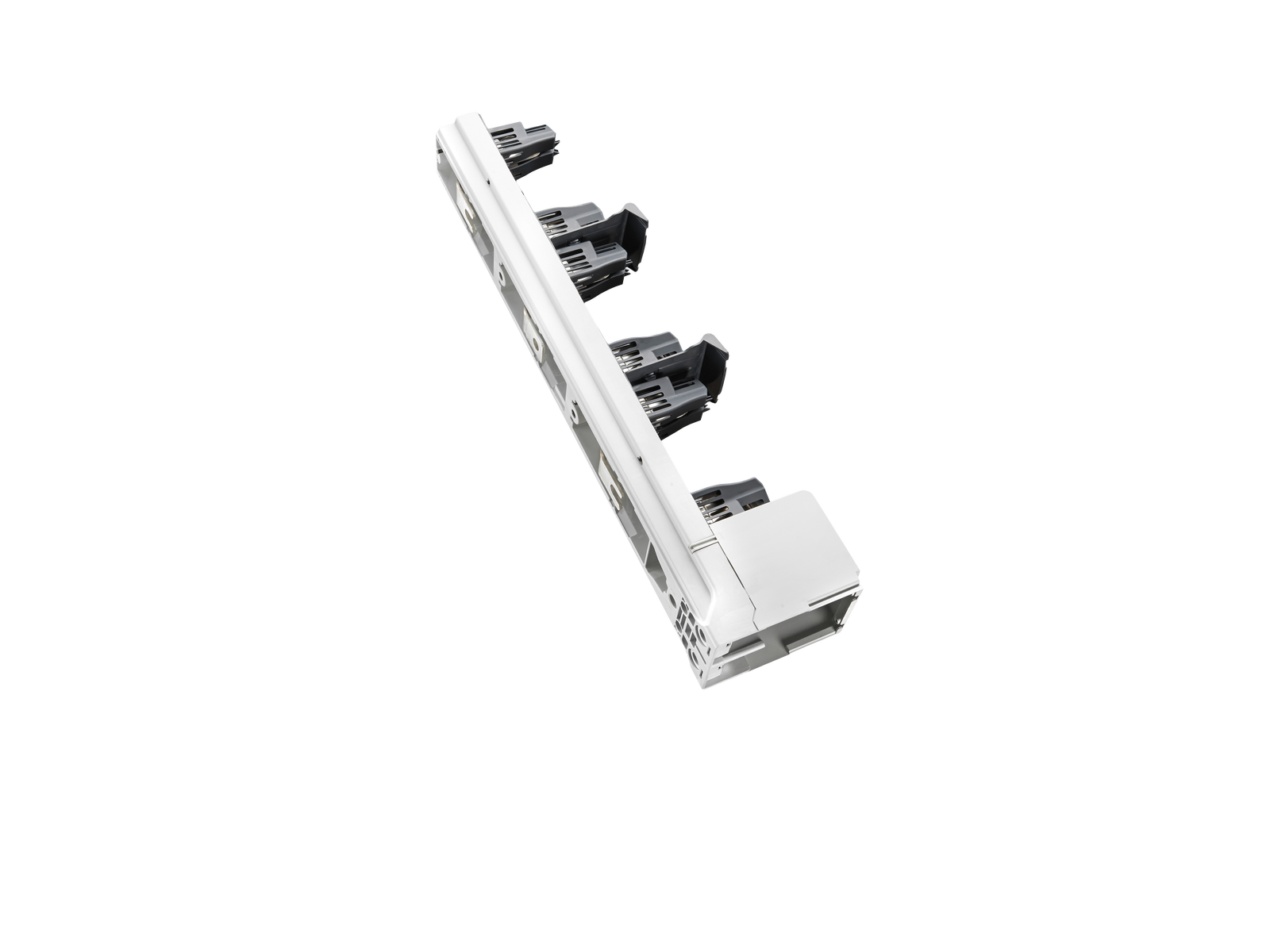

NH in-line fuse base 250 A (33706)

The picture may show a similar product.

Description

Part No.: 33706000A

QUADRON^®185Power

NH in-line fuse base 250 A

size 1

screw M12

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group	12
Subgroup	33

pack size	1
EAN	4021267337063

ECLASS 6.1	27142106
ECLASS 7.1	27142106
ETIM 4.0	EC001046
ETIM 5.0	EC001046

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

type number: QU185-1-O

Technical data

for fuse links size:	NH 1
fuse links acc. to standard:	IEC / HD 60269-2

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016

Electrical data IEC
rated current (IEC):	250 A
rated voltage (IEC) AC:	690 V

rated surge voltage U_imp :

12 kV

short-circuit strength when protected by fuses:

50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 19.2 W.

(The power dissipation at full load would be 30.0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:

1000 V

for fuse links IEC 60269-2 / DIN VDE 0636-201 size 1 up to 23W power dissipation

Mechanical data
W x H x D:	100 x 670 x 173
weight:	365.0 kg/100
for busbars:	30, 40, 60, 80, 100, 120 x 10

CT can be integrated in the device:	ja
CT can be integrated in the CT module:	ja

Befestigungsart:
auf gebohrter Sammelschiene anschraubbar, Durchmesser 13mm, bohrungslos mit Klemmbügel
Anschluss:
Schraubanschluss M12

Terminal points

screw M12 : Md 30 Nm

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

33759000A
grip lug cover
für 33706, 33707, 33708
size 1-3
More

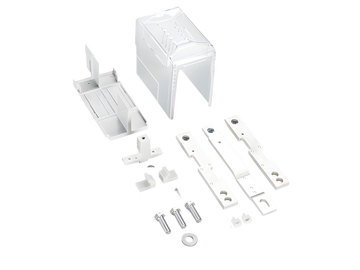

33762000A
universal current transformer module
for mounting in the connection compartment
size 1 - 3
More

33736000A
box terminal
für Cu / Al 120 - 300 mm²
size 1-3
More

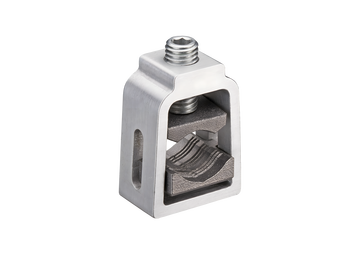

33735000A
box terminal
für Cu / Al 70 - 240 mm²
size 1 - 3
More

33738000A
CrossLink® terminal clamp
for busbar systems with CrossLink® touch-safe protection
size 1 - 3
More

33740000A
terminal clamp
for busbar systems without system covers
size 1 - 3
More

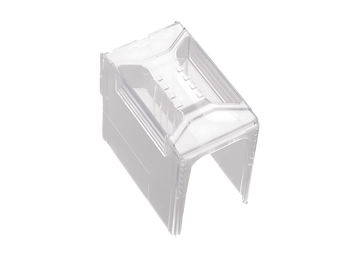

33733000A
terminal compartment cover
universal for NH-rails size 1 - 3 and connection rail 800 A
size 1- 3
More

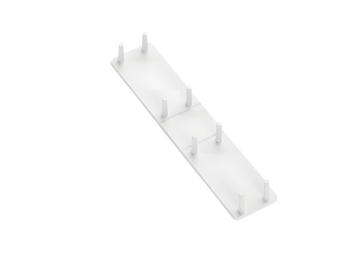

33761000A
rear touch-safe protection cover
rear protection for Phase L1
More
