double in-line fuse disconnector 1250 A (33731)

The picture may show a similar product.

Description

Part No.: 33731000A

QUADRON^®185Power

double in-line fuse disconnector 1250 A

3-pole switchable

screw M12, incl. terminal compartment cover

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Advantages of the product

Self-closing inspection holes are available in the cover.

Cover can be locked when closed.

Product group	12
Subgroup	55

pack size	1
EAN	4021267337315

ECLASS 6.1	27142109
ECLASS 7.1	27142109
ETIM 4.0	EC001046
ETIM 5.0	EC001046

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

type number: QU185-3/2x

Technical data

for fuse links size:	NH 3
fuse links acc. to standard:	IEC / HD 60269-2
permitted power dissipation of the fuse-link:	48 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data IEC
rated current (IEC):	1250 A
rated voltage (IEC) AC:	690 V

rated isolation voltage U_i AC:	1000 V
rated surge voltage U_imp :	8 kV

Utilisation category AC (IEC 60947-3) :	AC-20B (690 V)
Utilisation category DC (IEC 60947-3) :	DC-20B max. voltage between the fuses: 800 V visible information required: Do not switch under load.

cond. short-circuit current with fuses (AC):	50 kA
approved wth fuse links of operation class:	gG

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 243.2 W.

(The power dissipation at full load would be 380.0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

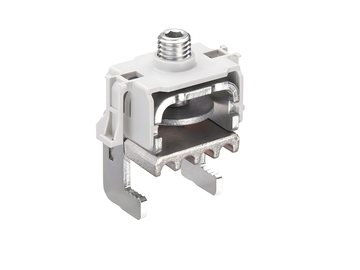

version: connection bottom ampacity with fuses NH3 gG 500 V AC 630 A: - 1250 A bolt connection (it's recommended to wear gloves when operating) - 1190 A bolt connection - 1125 A using terminal clamp 33738 or 33740 ampacity with solid links (knives) 1000 A: - 1550 A bolt connection - 1350 A using terminal clamp 33738 or 33740
Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals.
Degree of protection IP20 at front, degree of protection near terminal depends on installation

Mechanical data
W x H x D:	200 x 890 x 190
weight:	1556.0 kg/100
for busbars:	30, 40, 60, 80, 100, 120 x 10

CT can be integrated in the device:	ja
front degree of protection:	IP20
degree of protection when open:	IP10

Type of fastening:
can be screwed onto drilled busbar, diameter 13 mm, undrilled mounting with terminal clamp
connection:
screw connection M12, max. 4/8 cable lugs for 300 / 240mm², for more information download mounting instruction.

Terminal points

screw M12 : Md 30 Nm

Application notes

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

permitted power dissipation of the fuse-link:	48 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
