spare part for MOTUS

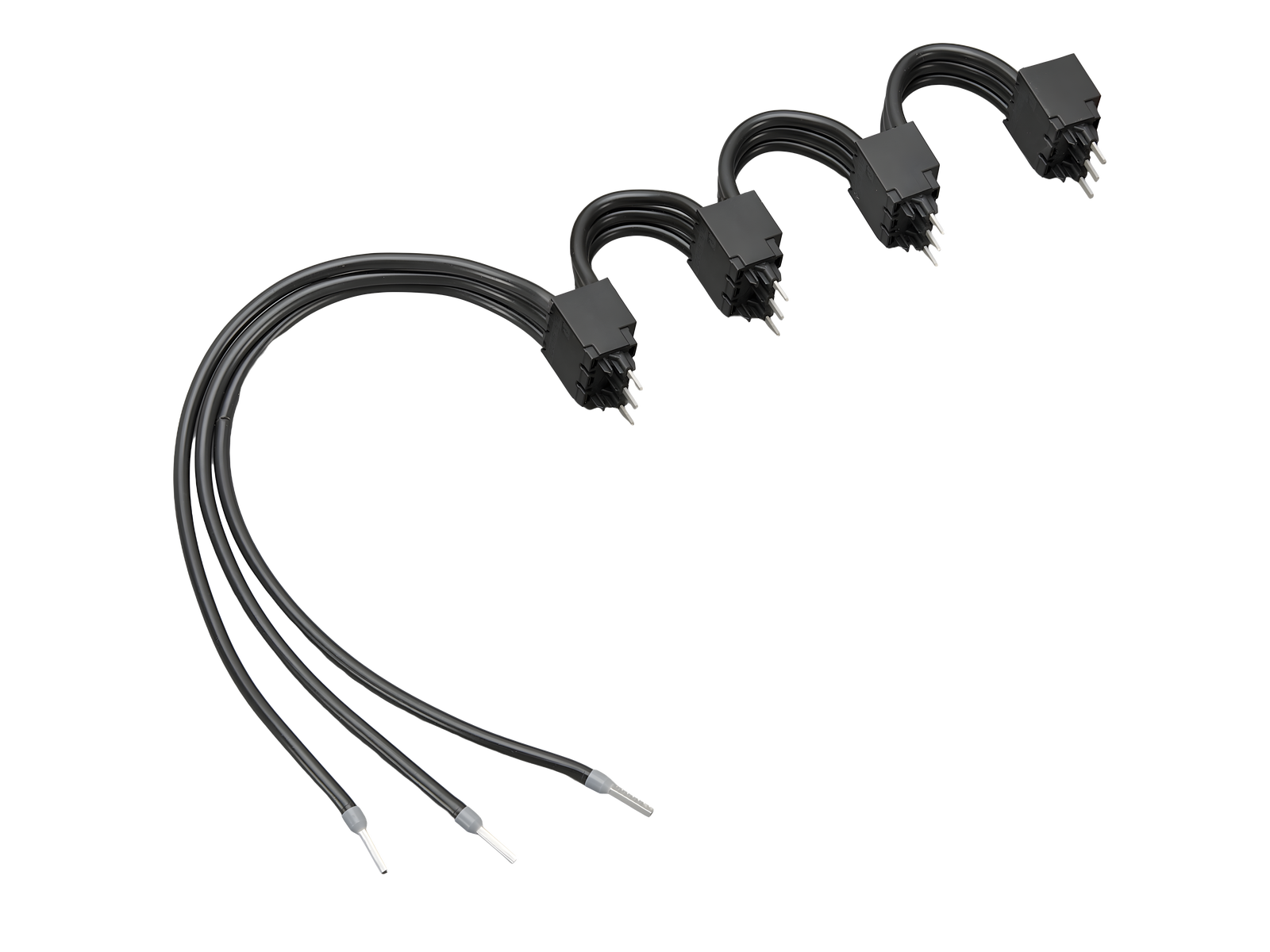

The picture may show a similar product.

Description

Part No.: 36904 000

connecting plug with cable connection, 4 units

Product group	21
Subgroup	51

pack size	1
EAN	4021267369040

ECLASS 14.0	27143190
ETIM 5.0	EC002498
ETIM 8.0	EC002498
ETIM 10.0	EC002498

Approvals

Standards

EN 60947-1:2015
EN 60947-4-2:2012
EN 61439-1:2012
EN 50581:2012
EN ISO 13849-1:2015

EAC Type: AC-A

Technical data

Details IEC
Standards
EN 60947-1:2015 EN 60947-4-2:2012 EN 61439-1:2012 EN 50581:2012 EN ISO 13849-1:2015

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight:	10.9 kg/100

Material properties
halogen-free:	Yes

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

36255 000A
MOTUS C14 Panel Connect Plus
electronic motor starter, 3-pole or 1-pole switchable
direct and reversing starter 0.1 - 2.6 A
with IO-Link interface, with display
for mounting rail
More

36259 000A
MOTUS C14 Panel Connect Plus
electronic motor starter, 3-pole or 1-pole switchable
direct and reversing starter 0.1 - 6.6 A
with IO-Link interface, with display
for mounting rail
More

36106 000B
MOTUS Panel
hybrid motor starter, 3-pole
direct and reversing starter 1.5 - 6.5 A / switch for resistive loads 1.5 - 9.0 A
for mounting rail
More

36123 000A
MOTUS Panel
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 3.0 A / switch for resistive loads 0.18 - 3.0 A
with IO-Link interface
for mounting rail
phase-out product
More

36126 000A
MOTUS Panel
hybrid motor starter, 3-pole
direct and reversing starter 1.5 - 7.0 A / switch for resistive loads 1.5 - 9.0 A
with IO-Link interface
for mounting rail
phase-out product
More

36112 000B
spare part adapter 25 A
adapter for MOTUS Panel
for mounting rail
More

36103 000B
MOTUS Panel
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 2.4 A / switch for resistive loads 0.18 - 2.4 A
for mounting rail
More

36100 000B
MOTUS Panel
hybrid motor starter, 3-pole
direct and reversing starter 0.075 - 0.6 A / switch for resistive loads 0.075 - 0.6 A
for mounting rail
More
