replacement fuse for MOTUS® (31568)

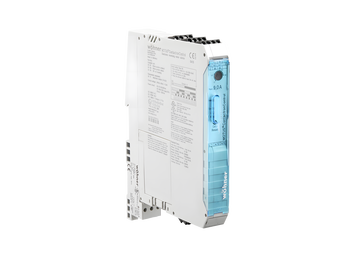

The picture may show a similar product.

Description

Part No.: 31568000

replacement fuse for MOTUS®

fuse 20 A for version 6.5 A

10x38 gR

Product group	21
Subgroup	51

pack size	3
EAN	4021267315689

ECLASS 6.1	27142002
ECLASS 7.1	27142002
ETIM 4.0	EC002704
ETIM 5.0	EC002704

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system F

Technical data

size:

10x38

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system F

Electrical data IEC
rated current (IEC):	20 A
rated voltage (IEC) AC:	500 V

operation class

Electrical data UL
rated current (UL):	16 A
rated voltage (UL) AC:	500 V
rated frequency (UL):	50 / 60 Hz

Mechanical data
W x H x D:	10 x 10 x 38
weight:	2.8 kg/100
