The picture may show a similar product.
Part No.: 31971 000

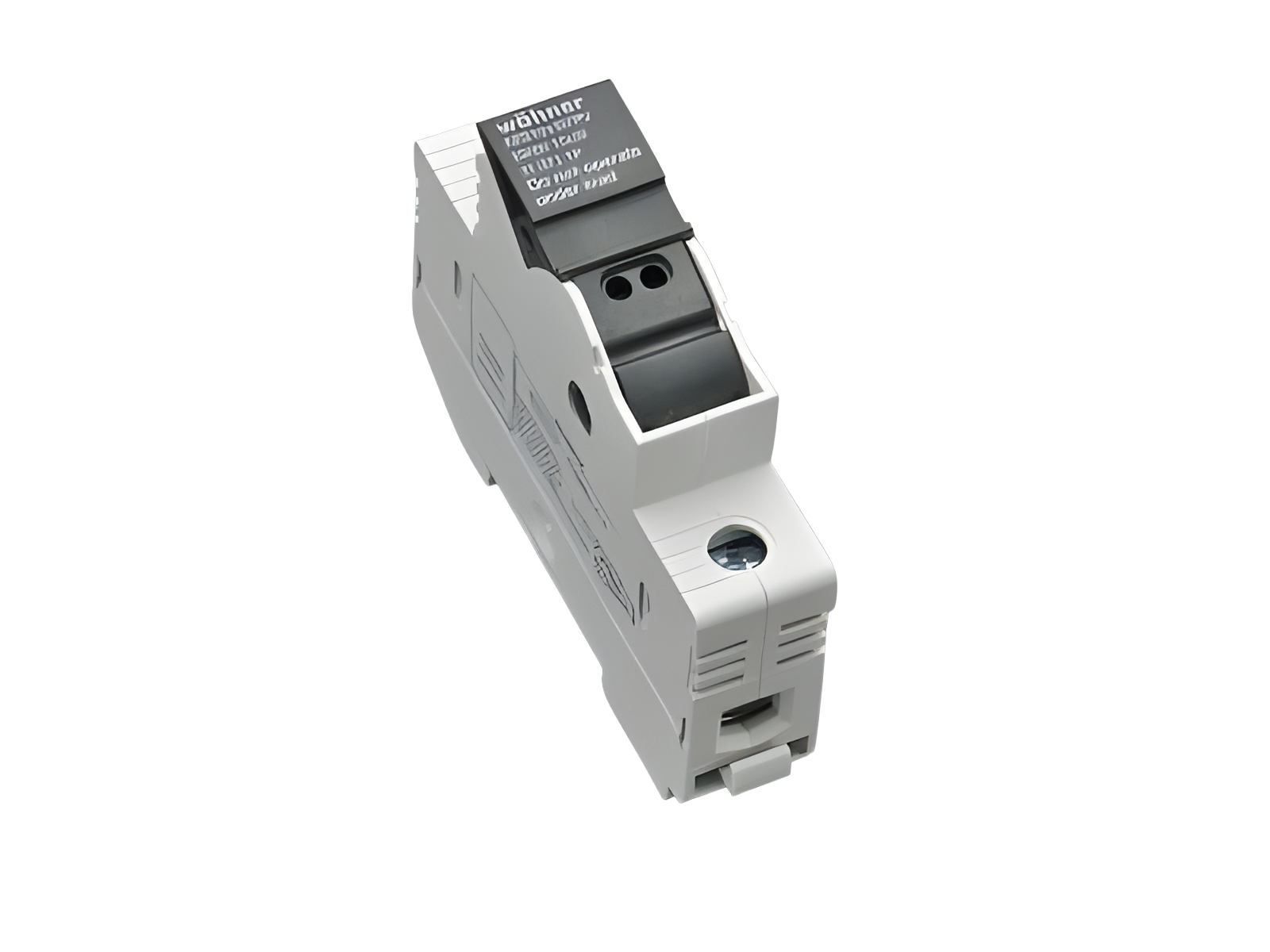

AMBUS®Panel
holder for cylindrical fuses
Size 10x38
10x38 / 1P
30 A / 1000 V DC
for mounting rail
System
Panel
Advantages of the product
large clamping range
holder for label
| Product group | 17 |
| Subgroup | 06 |
| pack size | 12 |
| EAN | 4021267319717 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
UL 4248-1
UL 4248-19
Approvals
IEC (CB) , CSA , UL , CCC
for UL feeder circuits >250V
type number: AES10x38/PV
UL file: E342576, UL category (for USA): IZMR https://www.ul.com
CSA file: 110285, CSA class: 6225-30 https://directories.csa-international.org
CCC certificate: 2013010308601276
| for fuse links size: | 10x38 |
| fuse links acc. to standard: | IEC / EN 60269-6 |
| permitted power dissipation of the fuse-link: | 4 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| rated current (IEC): | 30 A |
| rated voltage (IEC) DC: | 1000 V |
| rated isolation voltage Ui DC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| cond. short-circuit current with fuses (DC): | 20 kA / 1000 V (30 A) |
| approved wth fuse links of operation class: | gPV |
| short-circuit strength when protected by fuses: | 20 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.2 W.
(The power dissipation at full load would be 0.3 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 1000 V |
| use of fuse links with silver plated caps is recommended |
| Details UL | |
| Standards | |
|
UL 4248-1
UL 4248-19 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 30 A |
| rated voltage (UL) DC: | 1000 V |
| for wires UL: | Cu 90°C |
| SCCR protected max.: | 33 kA |
| with IZLT fuse 10x38 30 A / 1000 V DC | |
| max. let-through current Id (UL): | 8.65 kA |
| max. let-trough energy (UL): | 16.9 kA²s |
| Mechanical data | |
| W x H x D: | 18 x 81 x 58 |
| weight: | 5.2 kg/100 |
| poles: | 1-pole |
| Mounting: | for mounting rail |
| degree of protection: | IP20 |
| front degree of protection: | IP20 |
| Terminal points | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 11 mm |
| min. cross-section: | 0.75 mm² |
| max. cross-section: | 25 mm² |
| Md min.: | 2.0 Nm |
| Md max.: | 2.5 Nm |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 18 |
| max. cross-section UL: | AWG 4 |
| torque (UL): | 18 - 22 lb-in |
| for wires UL: | Cu 90°C |
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 4 W |
| for UL feeder circuits >250V | |
31563
000

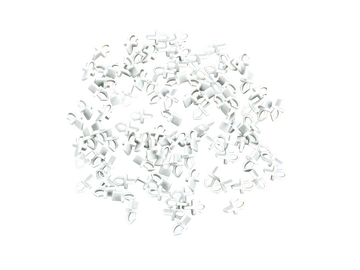

spacer 4,5 mm
