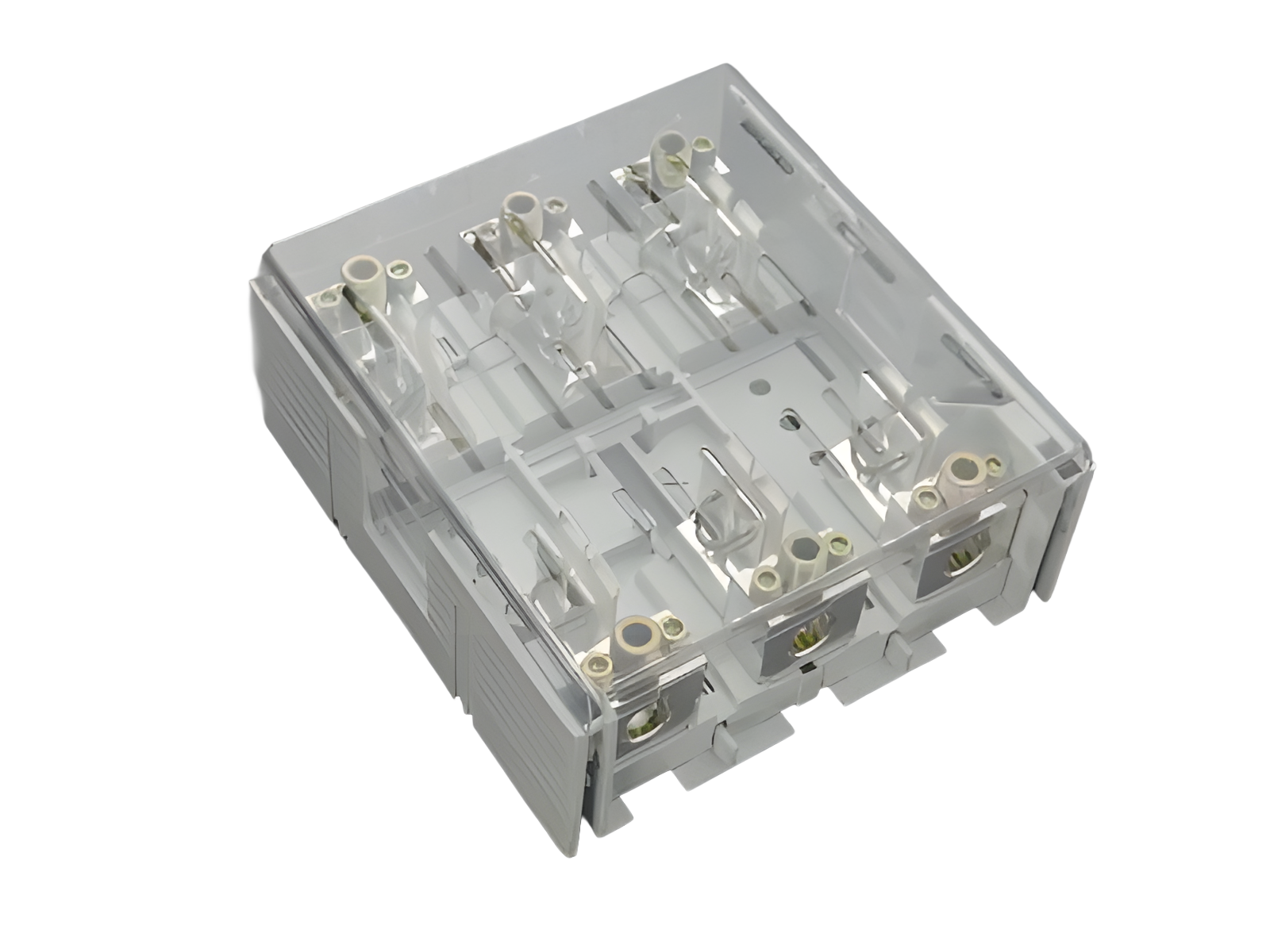

holder for cylindrical fuses (33308)

The picture may show a similar product.

Description

Part No.: 33308 000

QUADRON^®Panel

holder for cylindrical fuses

Class J / 3P, terminal 300 mm²

400 A / 600 V

for mounting plate

System

Panel

Product group	16
Subgroup	15

pack size	1
EAN	4021267333089

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002705
ETIM 5.0	EC002705

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

UL 4248-8

UL 4248-1

Approvals

CSA , UL

for UL feeder circuits >250V

type number: JC400

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

Technical data

for fuse links size:	Class J 400 A
fuse links acc. to standard:	UL 248-8
permitted power dissipation of the fuse-link:	38 W

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 9.5 W.

(The power dissipation at full load would be 14.8 W.)

for Class J fuses 225 - 400A as per UL 248-8 (54x181)

Details UL
Standards
UL 4248-8 UL 4248-1

for UL feeder circuits >250V
suitable for field-installed conductors

Electrical data UL
rated current (UL):	400 A
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz
rated voltage (UL) DC:	600 V
for wires UL:	Cu 75°C

SCCR:

200 kA

Mechanical data
W x H x D:	256 x 267 x 133
weight:	672.0 kg/100
poles:	3-pole
Mounting:	for mounting plate

Terminal points
Not suitable for aluminium cables !

min. cross-section UL:	AWG 4
max. cross-section UL:	MCM 600
for wires UL:	Cu 75°C

tunnel terminal with hole of 23,0 mm diameter acc. to IEC / EN : 16 - 240 (300) mm² flexible cables, directly or with wire-end ferrule, solid and stranded round cables, Md 38 - 40 Nm (flexible cables of maximum cross-section may not fit when using wire-end ferrule) acc. to UL : AWG 4 - MCM 600 stranded cables Class B acc. to UL 486E 336 - 355 lb.in.

Application notes

Not suitable for aluminium cables !
Shock protection through push-on covers.

permitted power dissipation of the fuse-link:	38 W


for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
