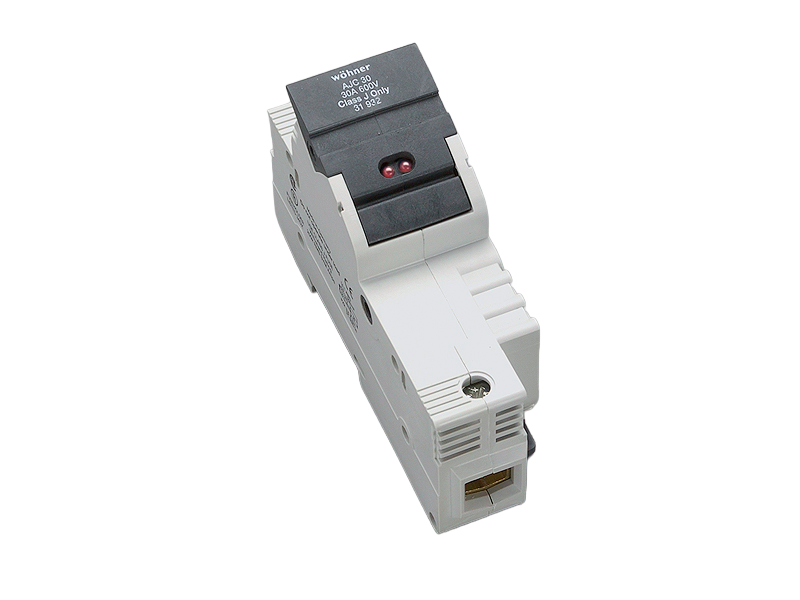

holder for cylindrical fuses, with LED

The picture may show a similar product.

Description

Part No.: 31932 000

AMBUS Panel

holder for cylindrical fuses, with LED

Class J / 1P, box terminal 50 mm²

30 A / 600 V

for mounting rail

System

Panel

Advantages of the product

large clamping range, also for two identical conductors (adjacent)
holder for label
with indicator for tripped fuse
any polarity for DC voltage applications

Product group 16
Subgroup 03
pack size 6
EAN 4021267319328
ECLASS 14.0 27142190
ETIM 5.0 EC002705
ETIM 8.0 EC002705
ETIM 10.0 EC002705

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

UL 4248-8

UL 4248-1

Approvals

CSA , UL

for UL feeder circuits >250V

type number: AJC30

EAC Type: AJC

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org

Technical data

for fuse links size: Class J 30 A
fuse links acc. to standard: UL 248-8
permitted power dissipation of the fuse-link: 5 W
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
Electrical data IEC
min. operating voltage AC: 110 V
min. operating voltage DC: 110 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.1 W.

(The power dissipation at full load would be 0.2 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
min. permitted operation temperature -40°C
for Class J fuses 1 - 30A as per UL 248-8 (21x57)

indicator light
operating voltage range: 110 - 600 V AC / DC
Details UL
Standards
UL 4248-8
UL 4248-1
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 30 A
rated voltage (UL) AC: 600 V
min. operating voltage AC: 110 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
min. operating voltage DC: 110 V
for wires UL: Cu 75°C
SCCR: 200 kA
Mechanical data
W x H x D: 36 x 115 x 69
weight: 15.8 kg/100
poles: 1-pole
Mounting: for mounting rail
degree of protection: IP20
front degree of protection: IP20
Terminal points
cage clamp connection
screw drive: PZ2
wire stripping: 20 mm
min. cross-section: 0.75 mm²
max. cross-section: 50 mm²
f: 0.75 - 50 mm²
f + AE: 0.75 - 50 mm²
(f + AE may not fit with max. cross-section)
Md min.: 3.2 Nm
Md max.: 4.8 Nm
Not suitable for aluminium cables !

min. cross-section UL: AWG 18
max. cross-section UL: AWG 1/0
torque (UL): 35 lb-in
for wires UL: Cu 75°C


for applications acc. to IEC / EN:
for wires 0.75 - 1 mm²: 2 - 3 Nm

connection of 2 wires (of same cross-section)
for applications acc. to IEC / EN:
Cu 0.75 - 10 mm²
all further details: as for connection of 1 conductor

connection of 2 wires (of same cross-section)
for applications acc. to UL / CSA:
Cu AWG 18 - AWG 6
all further details: as for connection of 1 conductor
Material properties
halogen-free: Yes

Application notes

Not suitable for aluminium cables !
permitted power dissipation of the fuse-link: 5 W
for UL feeder circuits >250V
